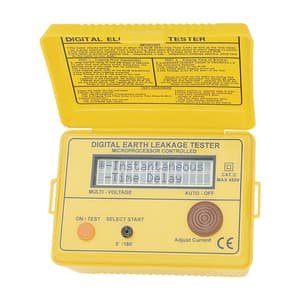

Kusam-Meco 100 - 450V Digital ELCB Tester (Earth Leakage Tester), KM 2820 EL
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 800 g
- Operating Voltage: 100 - 450V (L-E)
- Trip Current-Resolution: 1mA
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹57,560 (Incl. of all taxes)
₹48,780 + ₹8,780 GST (18%)
MRP was MRP ₹60,975
Save 20%
3 Business Days
1
90318000
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- Checks ELCB trip time and trip point (sensitivity)
- Auto Power Off
- Auto-Ranging
- Phase angle selection (0 degree / 180 degrees)
- Indicates tripping phase angle
- Impact-resistant enclosure
- Over temperature shut-down
- Transient protection
- Suitable for heavy industrial use
- Fused
- Typical Accuracy: Trip-Current +/- 1% rdg +/- 1mA; Trip-Time +/- 1% rdg +/- 1dgt; Voltage +/- 3% rdg +/- 1dgt
- EN 61010-1, IEC 1010-1 CAT III 450V
Package Content:
- Digital ELCB Tester
- Test leads
- User Manual
- Carrying case
- Shoulder belt
- Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operating Voltage | 100 - 450V (L-E) |
|---|---|
| Trip Current-Resolution | 1mA |
| Timer-Max | 99.999s |
| Timer Resolution | 1mS |
| Operating Temperature & Humidity | -10°C ~ +40°C, 80% max |
| Power Supply | 1.5V (AA) x 8 Batteries |
| Rated Current | 999mA (At 317V AC/50Hz) |
| Trip Current Range | 0 - 1 A at 317V (Auto-Range Programmable) |
| Dimensions (LxWxD) | 170 x 120 x 95 mm |
