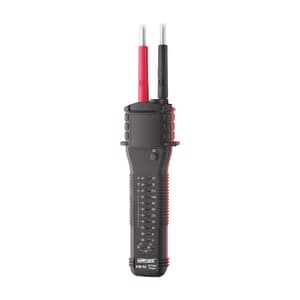

Kusam-Meco 1000V AC Voltage Detector With EF Detection, KM 66
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 235 g
- Operating Temperature: -10°C ~ 55°C
- Low Battery: 2.6 V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,192 (Incl. of all taxes)
₹4,400 + ₹792 GST (18%)
MRP was MRP ₹5,500
Save 20%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Detachable (Black) test lead for easy replacement. User Replaceable Screw-On stationary (Red) Probe Body. Meets IEC/EN61010-1Ed. 3.0, IEC/EN61010-2-033Ed. 1.0, IEC/EN61243-3:2014 to CAT III 1000V & CAT IV 600V.
Features:
- EF-Detection
- Handy & Stylish, Fits Comfortably in one hand
- 19mm Probe Pitch For Quick European Receptacle Testing
- 4mm Test Tips with IP2X Retractable shroud for IEC61243-3 Ed3
- Battery-less ELV Limit (120VDC/50VAC) LED Indication
- Battery-less DCV & ACV Auto-selection with LED polarity indication
- Battery-less DCV 8-Ranges LED Indication: 12, 24, ... to 1000V
- Battery-less ACV 8-Ranges LED Indication: 12, 24, ... to 1000V
- Automatic Power On & Power Off
- Non-contact EF-Detection (NCV)
- Probe contact EF-Detection for a more precise indication of live
- Continuity: Audible beeper & visible LED indications
- Low Battery warning for battery-operated functions & features
- Battery Access Door
- Power Consumption (typical): 1mA for Power on ready; 40mA for Buzzer on @ Continuity of EF function
Safety:
- Transient Protection: 8kV lightning surge (1.2/50µs)
- Measurement Category: CAT III 1000V & CAT IV 600V AC & DC
- Overload Protection: 1100VDC & VAC rms
- Type of Protection: IP65 Per EN60529 - water and Dust Resistant
- Rugged fire retarded double injected casing
- E. M. C: Meets EN61326-1:2013 Total Accuracy = Specified accuracy + 45d @ an RF field of 3V/m
Package Content:
- Batteries
- User's manual
- Screw-on stationary red probe and detachable leaded black probe
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operating Temperature | -10°C ~ 55°C |
|---|---|
| Relative Humidity | Less Than Equal To 90% |
| Altitude | Operating below 2000 m |
| Pollution Degree | 2 |
| Low Battery | 2.6 V |
| APO Timing | Idle For 16 Seconds |
| APO Consumption (Typical) | 6μA |
| Sensing | Average sensing for LED indication |
| Storage Temperature | -20°C ~ 65°C, £ 80% R.H. (With Battery Removed) |
| Temperature Coefficient | Nominal 0.15 X (Specified Accuracy) / °C @ (10°C ~ 18°C or 28°C ~ 50°C), or Otherwise Specified |
| Power Supply | 1.5V AAA Size (NEDA 24A or IEC LR03) Alkaline Battery x 2 |
| Dimension (LxWxH) | 278x57x40 mm |
