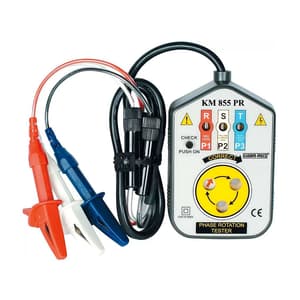

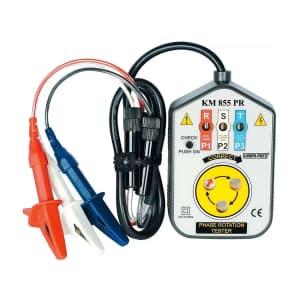

Kusam-Meco 200V - 600V AC Phase Sequence Meters, KM 855PR
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 530 g
- Operational Voltage: 200V ~ 600V AC
- Measuring Frequency Range: 50Hz ~ 60Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,180 (Incl. of all taxes)
₹7,780 + ₹1,400 GST (18%)
MRP was MRP ₹9,725
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
When connecting any 3-phase equipment to the 3-phase power, the first step is to check the phase sequence of the 3-phase power supply. This instrument is a handy and essential instrument for checking the phase sequence in 3-phase Circuits.
When connecting motors, energy meters, watt meters, Power factor meters, Power factor controllers, Power meters, etc, it is very important to connect the equipment in proper phase sequence, otherwise, the instrument/equipment can be damaged or give incorrect readings. The instrument can also be used to check for an open phase( one phase only).
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
When connecting motors, energy meters, watt meters, Power factor meters, Power factor controllers, Power meters, etc, it is very important to connect the equipment in proper phase sequence, otherwise, the instrument/equipment can be damaged or give incorrect readings. The instrument can also be used to check for an open phase( one phase only).
Safety:
- EN61010-1 EN61010-2-31 CAT III 600V.
Package Content:
- Test leads with Insulated Crocodile clips
- Instruction Manual
- Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operational Voltage | 200V ~ 600V AC |
|---|---|
| Measuring Frequency Range | 50Hz ~ 60Hz |
| Storage Temperature | -20°C ~ 60°C At 90% Max. R.H |
| Operating Temperature | -10°C ~ 40°C At 80% Max. R.H |
| Cord | 1.1m each of Red (R), White (S) & Black (T) cord |
| Dimension (LxWxD) | 134 x 85 x 45 mm |
