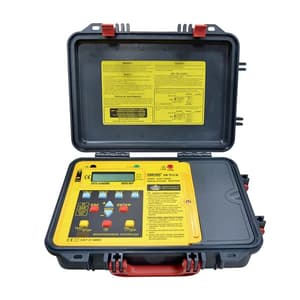

Kusam-Meco 15KV Digital High Voltage Insulation Resistance Tester, KM 7015 IN

• Microprocessor controlled Menu driven
• Realtime Clock
• Warning Voltage Detection
• Automatically Stops the Test
• Guard Connection to reduce errors
• Bargraph to indicate the rise & decay of Voltage
• Automatic Discharge of Circuits
• Measuring insulation of open contacts of the circuit breaker
• Use it to test insulation resistance, on ceramic insulators, between Bus Bars, high-power transformers and HT Motors
• Short circuit current up to 5mA
•  PI, DAR & Auto Hold Function
• 2 Lines X 16 Characters large LCD Backlight display
• 2 optical LEDs are built in for data transfer
• Calendar
• Internal memory for data storage
• Optical USB to RS-232 data transmission
• Well-isolated to contact & Surge protection
• Auto power off
• Measuring 30 Insulation Test Voltage Ranges: 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV, 9kV, 9.5kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 12.5kV, 13kV, 13.5kV, 14kV, 14.5kV, 15kV

Packages Content:

• Insulation Resistance Tester
• Anti-leakage
• Color-coded
• Flexible silicone coaxial test lead with integrated guard into the test probe
• 3 Test Leads (AL-50 Red Test Leads (3 meter) as standard
• Blue Test lead (1.25 meter) & Green Test lead (1.25 meter)
• User Manual
• PC Interface Kit
• Charger
• Alligator Clip

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
