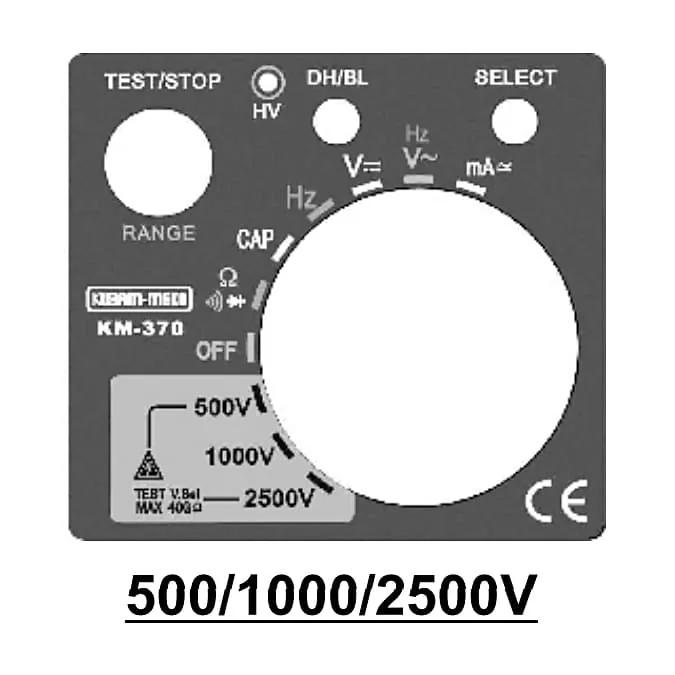

Kusam-Meco 2500V / 40G Ohms Digital Insulation Resistance Tester With Multimeter Functions, KM 370
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 650 g
- Basic Accuracy: ± (0.5%rdg + 5dgts)
- Display Digits: 3-3/4 Digits
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,466 (Incl. of all taxes)
₹5,480 + ₹986 GST (18%)
MRP was MRP ₹6,850
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
The meter can display the actual insulation test voltage. LED light is used to indicate high voltage output status. Measures Insulation Resistance & AC & DC Voltage
Features:
- Digital MΩ Hitester & Digital multimeter.
- Overload Protection
- Backlight, function characters indication
- Auto power off
- Low battery indication
Package Content:
- Test leads
- Carrying Case
- User's Manual & Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Basic Accuracy | ± (0.5%rdg + 5dgts) |
|---|---|
| Display Digits | 3-3/4 Digits |
| Display Counts | 3999 Counts |
| Type of Display | Liquid Crystal Display |
| Sampling Rate | 2 Times Per Second |
| Short Circuit | 1.5 mA |
| Measurement Time | 1⁄2/10 min |
| Auto Range | "OL" Will Be Displayed For Overload |
| Operating Temperature | 0°C - 40°C, < 75%R.H |
| Storage Temperature | -10°C - 60°C, < 80%R.H |
| Max. Power Consumption | 4.5 W |
| Mini. Power Consumption | 18 mW |
| Power Supply | AA 1.5V Battery x 6 |
| Dimension (LxWxH) | 170 x 156 x 64 mm |
