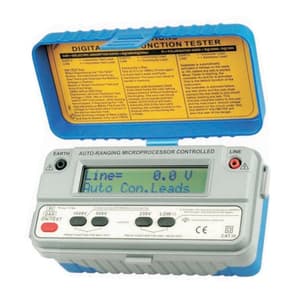

Kusam-Meco 1KV Low Voltage Digital Insulation Resistance Tester, KM 1152 MF

• The "KUSAM-MECO" 1152MF has features for Insulation Resistance testing, Polarisation Index measurement & Die electric absorption ratio measurement, Voltage (AC-DC) measurements with an Automatic Hold facility & Continuity Test with a short circuit current of Minimum 200mA.
• Two very unique features are found on the Multifunction Mode 1152 MF, MOV and Gas Arrester testing.
• Today, most equipment and electrical installations are protected by MOVs and Gas arresters.
• The 1152MF can test these devices to establish if the devices are still operating correctly or not.
• Energy conservation is featured on all these new Advanced Products.
• EnerSave™ limits the test duration to about 10 Seconds to save energy.
• This new generation of test equipment has no moving parts. All calibrations are saved internally in a non-volatile memory.
• Calibration can be done at any calibration facility around the world, without the need for dedicated calibration equipment.
• This makes these products easier to maintain and lowers the cost of Calibration and ownership.
• Their calibration interval can be extended without much problem.
• They comply with all the latest regulations, including UK 16 Edition.
• Meets IEC/EN 61010-1 CAT III 600V.

Features:

• Digital EE Calibration (No Potentiometers)
• Automatic Voltmeter AC/DC at Start / Reset.
• Off Push button (press more than 5 sec on 1kV key)
• MOV/protection devices test
• Polarization Index (PI) on 250, 500 and 1000V
• Battery test on 250, 500 and 1000V
• Voltmeter on request by keypad: Automatic
• Auto-discharge on all Tests and all ranges
• Continuity Open Circuit Voltage of 5V DC
• Buzzer ON/OFF by key: Always ON (225mA Typical)
• Test Auto-Stop.
• Nominal Voltage @ 1mA on all insulation Ranges.
• Re-programmable Microprocessor for Easy Updates.
• Insulation Ranges Insulation measurement from 2kΩ (250V range) to 8GΩ (1kV Range)
• Can be calibrated in ALL calibration laboratories
• Continuity from 0.01 Ω (220mA) to 1999Ω
• AC Voltmeter from 1 Vac to 700 Vac
• Smart Hold & stop on Voltmeter AC / DC.
• EnerSave™
• Keypad Operation
• On-Reset / Restart Key
• Auto-Off
• Test ON-OFF
• Dielectric Absorption Ratio (DAR) on 250, 500 and 1000V
• Battery Test at switch ON / Reset
• Safety Voltmeter before each Test
• Continuity Short Circuit current >220mA (225mA Typical)
• Nominal Voltage @ 1mA on all Insulation Ranges
• Leads Auto-Null key
• Can be calibrated in ALL calibration laboratories
• DC Voltmeter from ± 1VDC to ± 950VDC
• Accept 8 rechargeable Batteries or Alkaline or Normal Battery
• Gas Arrester Function

Safety:

• CE marking according to the Low Voltage Directive (73/23/EEC & 93/68/EEC) and EMC Directive (89/336/EEC, 92/31/EEC, & 93/68/EEC) and found to comply with the essential requirement of the directives.
• IEC/EN 61010-1:2001.
• EN61326+A1+A2+A3, EN55011+A1+A2, EN61000-3-2+A2, EN61000-3-3+A1+A2, EN61000-4-2+A1+A2, EN61000-4-3+A1, EN61000-4-4, EN61000-4-5+A1, EN61000-4-6+A1, EN61000-4-11

Packages Content:

• Resistance Tester
• Test Leads (TEL-AL11-A)
• Shoulder belt
• Instruction Manual
• Batteries

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
