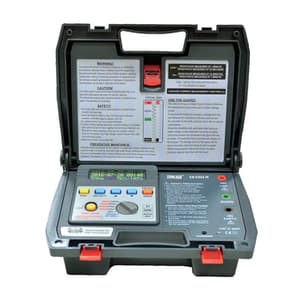

Kusam-Meco 5KV Digital High Voltage Insulation Resistance Tester, KM 6305A IN
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 4.26 kg
- Tests Insulation Resistance: Up To 10 T Ohms
- 4 Insulation Test Voltages: 500V, 1000V, 2500V & 5000V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹96,760 (Incl. of all taxes)
₹82,000 + ₹14,760 GST (18%)
MRP was MRP ₹1,02,500
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- Microprocessor-controlled.
- 2 Lines x 16 characters LCD
- AC / DC Voltmeter.
- PI (Polarization Index) indication.
- DAR (Dielectric Absorption Ratio) indication.
- Auto-ranging on all insulation ranges.
- Optical USB to RS-232 data transmission
- Well isolated from contact
- Well protected from surges.
- 2 built-in optical LEDs for data transfer.
- Visual & audio warning of external voltage presence (>30Vac or >30Vdc)
- Auto-hold function to freeze reading
- Overload protection
- Internal memory for data storage.
- Displays testing duration for insulation measurement.
- Auto-off function.
- 200 measurement results can be saved in memory & recalled on display
- Resolution - 1000MΩ: 1MΩ / 10GΩ: 0.01GΩ / 100GΩ: 0.1GΩ / 1TΩ: 1GΩ / 10TΩ: 10GΩ
- Voltmeter - AC Voltage: 30 ~ 600V / DC Voltage : 30 ~ 600V / Accuracy: ±(2.0%rdg + 3dgts) / Resolution: 1V
Safety:
- EN61010-1 CAT IV 600V; EN61010-2-030; EN61326-1
Technical Data:
| Test Voltage | 500V | 1000V | 2500V | 5000V |
| Insulation Resistance | 1TΩ | 2TΩ | 5TΩ | 10TΩ |
| Accuracy | ±(5.0%rdg + 5dgts) | |||
| 0 ~ 100GΩ | 0 ~ 200GΩ | 0 ~ 500GΩ | 0 ~ 1000GΩ | |
| ± 12%rdg | ||||
| 100G ~ 1TΩ | 200G ~ 2TΩ | 500G ~ 5TΩ | 1000G ~ 10TΩ |
Packages Content:
- User Manual
- Test leads
- Data transmission cable CA-232
- Alligator clip
- PC interface CD
- Batteries
- Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Tests Insulation Resistance | Up To 10 T Ohms |
|---|---|
| 4 Insulation Test Voltages | 500V, 1000V, 2500V & 5000V |
| Short - Circuit Current | Up To 5mA |
| Adjustable Testing Duration | 1 ~ 30 Minutes |
| Power Supply | 1.5V "C" x 8 Alkaline Batteries |
| Current Measurement | 0.5nA ~ 0.55mA (Depending on the insulation resistance) |
| Dimension (LxWxD) | 330 x 260 x 160 mm |
