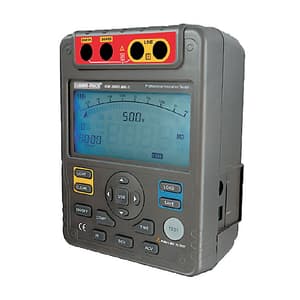

Kusam-Meco 5KV High Voltage Digital Insulation Resistance Tester, KM 2805 MK-1
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 2 kg
- Display Counts: 9999
- Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F )
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹38,468 (Incl. of all taxes)
₹32,600 + ₹5,868 GST (18%)
MRP was MRP ₹40,750
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
KM 2805 MK-1 insulation resistance tester is a handheld instrument designed primarily to make resistance/insulation resistance measurements.
Accuracy
Voltage Measurement
Insulation Resistance Measurement
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Range - Auto ranging.
- Overloading - Display OL on the Insulation Resistance range
- Battery Displays Battery Condition
- Icon Display - Equips with function and battery indicator icons.:
- Current Consumption - Maximum: around 1.0A, Average: around 20mA
- Display Backlight -.Bright backlight for clear readings in poorly lighted areas.
- Computer Connection - Via USB interface
- Data Logging and Recall - 18 points
- Autorange - The Meter automatically selects the best range
- Warning -
& red light will be on. - Voltage - Auto discharge Voltage function.
- Compare Measurement - Use the compare function to set a pass/fail compare level for the insulation measurements
- PI Measurement - The Polarization Index is the ratio of insulation resistance. You can pre-set two points of time and automatically carry out the measurement
- Time - To carry out measurement by setting a specified time within15 Minutes
Technical Data:
| ± (% of reading ) + (Number of Least Significant Digits) | |
| Operating Temperature | 18°C ~ 28°C |
| Relative Humidity | 45 ~ 75% RH |
| Measurement Range | ±30 ~ ±600V (DC Voltage) / 30 V~ 600V (50/60Hz) (AC Voltage) |
| Resolution | 1V |
| Accuracy | ± (2% + 3) |
| Output Voltage | 500V | 1000V | 2500V | 5000V |
| Display Range | 1MΩ ~ 5.5GΩ | 2MΩ ~ 40GΩ | 5MΩ ~ 100GΩ | 10MΩ ~ 1000GΩ |
| Open Circuit Voltage | DC 500V 0% ~ +20% | DC 1000V 0% ~ +20% | DC 2500V 0% ~ +20% | DC 5000V 0% ~ +20% |
| Test Current | 3.5mA @1MΩ | 3.5mA @2MΩ | 3.5mA @5MΩ | 3.5mA @10MΩ |
| Short Circuit Current | >3.5mA | |||
| Accuracy | 0.0M Ω~ 99.9M Ω:±(3%+5) | |||
| 100M Ω~ 9.99G Ω:±(5%+5) | ||||
| 10.0G Ω~ 20.0G Ω:±(10%+5) | 10.0G Ω ~ 40.0G Ω:±(10%+5) | 10.0G Ω ~ 100.0G Ω:±(10%+5) | 10.0G Ω ~ 99.9G Ω:±(10%+5) / Above 100G Ω: (±(20%+5) Humidity :below 50%) |
Safety:
- Compliances: IEC 61010 CAT. III 600V Over Voltage & Double Insulation Standard CE IEC61010, IEC61326, IEC61557
Packages Content:
- 2 Pcs x Plug test lead to one alligator clip (Black & Green)
- 1 Pcs x Two plugs test lead to an alligator clip (Red)
- Batteries
- User’s manual
- Tool Box
- USB interface cable
- Software
- Power Adaptor
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 9999 |
|---|---|
| Display Type | Analog Bar Graph With LCD Backlight |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F ) |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 152°F) |
| Relative Humidity | < 85% @ 0°C ~ 40°C below / < 90% @ -20°C ~ 60°C |
| Battery Type | 8 Pcs of 1.5V (LR 14) Batteries or Power Adaptor (Input Voltage 230, 50/60Hz, 150 mA, Input DC15V, 1.0A). (Optionally Available At Extra Cost) |
| Dimensions (HxWxL) | 202 x 155 x 94 mm |
