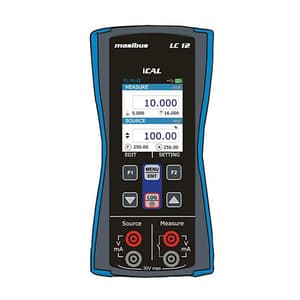

Masibus 30V Ultimate Loop Calibrator For Sourcing Or Measuring & Simulating Loop Current, LC 12
Roll over the image to zoom in
Key Features
- Product Type: Process Calibrators
- Weight: 0.3 kg
- Max. input voltage: 30 V DC
- Response time: Input <100ms / Output <100ms
- Periodic logging: 150000 readings max
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹53,661 (Incl. of all taxes)
₹45,475 + ₹8,186 GST (18%)
MRP was MRP ₹53,500
Save 15%
5 Business Days
1
–
Download Masibus CatalogueNot available
Highlights
iCALmodel LC 12 is the Ultimate Loop Calibrator for sourcing, measuring and simulating Loop current, mV and V. It is compact, rugged and easy to use hand held device with graphical user interface. LC 12 has simultaneous Source and Sense capability with independent parameter and range selection for source and sense, also the source and sense circuits are isolated from each other. Masibus LC 12 Loop Calibrator is designed to provide base accuracy of 0.02% of Reading in all modes of operation.
2W simulate and Read/Power are unique features for Loop testing and calibration. It has been designed to give maximum Battery life on full charge, the backlight is adjustable for power saving and the display can be programmed to automatically switch off when not in use.
Automatic Step/ Ramp output with Auto/ Man selection, data logging, Max/ Min/ Average values, scaling to Engineering units and filter settings enhances the use of LC 12 makes it multifunctional. LC 12 has Automatic Switch test feature. LC 12 comes with a Mini USB connector for charging, logged data retrieval and firmware upgrade, standard accessories provided patch cables, charger, USB cable, instruction manual, logged data retrieval software CD and calibration certificate, all in an attractive carrying case.
Features:
- Easy to read Color Graphical TFT LCD display
- Available with EMI/EMC compliance
- Rechargeable lithium ion battery with enhanced power control for prolonged battery life
- Simultaneously Measure and Source: mA, mV and V with dual readings on display
- 24 VDC Loop power Supply to power transmitters and loops
- 2W simulate and Read/ Power mode for in-situ Loop checking and calibration
- Step/ Ramp functions with Auto/ Man selection
- Switch test with condition (open/closed) indicator
- Universal Serial Bus (USB) communication port for charging, data retrieve and firmware upgrade
- Data Logging to measure long time drift
- Other Features: Max/Min/Average, filter settings, tare facility, adjustable backlight, alarm annunciation (on display and buzzer), automatic Display off.
Applications:
- Loop Check and calibration
- Calibration of Transmitters and Transducers
- Switch Test and calibration
- Drift test of Transmitters and Transducer
- Calibration service provider
- Test and maintenance
Industries:
- Calibration Lab
- Process plant
- Dairy plant
- Cement Industries
- Chemical Industries
- Paper Industries
- Engineering laboratories
- Electronics Industries
What's Included In This Package:
- Calibration Certificate
- User Guide
- 2 Sets of 2mm to 2mm banana cable
- 2 Sets of 2mm Crocodile cable
- 2 Sets of connecting plug 4mm to 2mm
- Carrying Bag
- Data Logging Software CD-mCAL
- USB A Male to USB mini B Male cable for PC communication and charging 5 VDC Charging Adapter
Technical Specifications:
| Measurement Range | |||
| Parameter | Range | Resolution | Accuracy |
| mV | 0-250.00 mV | 0.01 mV | +0.02% of reading + 2 counts |
| V | 0-30.000 VDC | 0.001 V | +0.02% of reading + 2 counts |
| mA | 0-24.000 mA | 0.001 mA | +0.02% of reading + 2 counts |
| Source Range | |||
| Parameter | Range | Resolution | Accuracy |
| mV | 0-250.00 mV | 0.01 mV | +0.02% of reading + 2 counts |
| V | 0-12.000 VDC | 0.001 V | +0.02% of reading + 2 counts |
| mA | 0-24.000 mA | 0.001 mA | +0.02% of reading + 2 counts |
| Specifications | |||
| Display | 2.4” TFT LCD, 262K Color, Graphical, 42.72 mm x 60.26 mm, 240x320 pixels, White LED Backlight | ||
| Keys | 6 Membrane Keys | ||
| Loop power output | 24V DC, +10% (24mA maximum) | ||
| HART mA Loop Resistor | 250 ? + 20% | ||
| Special Function | Step/Ramp functions: Automatic/Manual,: for measure & source | ||
| Switch Test | Potential free contacts Trigger level : 24V, 24mA (2V) Voltage level detection Trigger level : 0 to 30V in 1V steps Input impedance : >1 M? |
||
| Battery Type | Rechargeable Li-ion battery pack, 2300mAh 3.7V | ||
| Charging Time | <5 hours max | ||
| Charger supply | 100-240 VAC, 50/60 Hz; Output 5V DC@1A | ||
| Battery Life on full charge | >18 hours max for mA, mV, V measurement with minimum backlight brightness. > 8 hours max for 12mA generation with minimum backlight brightness |
||
| Battery Status Indication | Battery symbol displayed with % power remaining |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Mode | Measure + Source, Measure Only, Source Only, Switch Test + Source |
|---|---|
| Max. input voltage | 30 V DC |
| Temperature Coefficient | 30 ppm |
| Input Impedance Measure | V, mV >1M Ohms / mA =10 Ohms |
| Response time | Input <100ms / Output <100ms |
| Load impedance | >10 K Ohms for mV/V / <750 Ohms for mA |
| Display update rate | 10 readings / sec |
| Isolation | 500VDC between Measure & Source |
| Data logging | Logged data is stored in a user defined file in internal memory |
| Periodic logging | 150000 readings max |
| Communication Interface | USB 2.0 |
| Housing Material | ABS Plastic |
| Electrical Terminals | Four nos, 2 mm safety sockets |
| Protection | IP20 |
| Operating temperature | 0 to 55° C |
| Operating temperature while charging batteries | 0 to 45° C |
| Storage temperature | -20° to 60° C |
| Relative Humidity | 30% to 90% non-condensing |
| Warm-up time | 15 Minutes |
| Dimensions | 161.7 x 82.1 x 39.5 mm |
| Electromagnetic Compatibility Directive 2014/30/EU | EN 61326-1:2013 |
| Low Voltage Directive 2014/68/EU | EN 61010-1:2010 |
