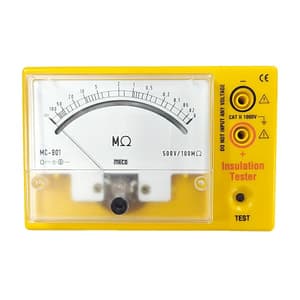

Meco 100V - 20M Analog Insulation Tester, MC 901
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 438.6 kg
- Test Voltage DC: 100V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,384 (Incl. of all taxes)
₹2,020 + ₹364 GST (18%)
MRP was MRP ₹2,376
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
MECO MC901 - Analog Insulation Tester is a high accuracy Analog Insulation Tester which shows nothing but effective results. This electrical power testing tool is ideal for a huge range of purposes. It can be used for household purposes and for electrical equipment. It comes with push-button operation and can measure voltage in the range of 10Percent to 100Percent insulation resistance range. MECO MC901 - Analog Insulation Tester meets industry standards and the best device to serve your purpose. It comes with , Pair of Crocodile / Alligator Test Leads and 1.5V AA Batteries accessories.
Features:
- Precise measurements with +/- 5 Percent variations
- IS 10656 - 1983, CAT II 1000 V
- Operating temperature 0 Deg to 50 Deg C
- Storage temperature - 10 Deg C to 60 Deg C
- Resistance 0 - 20 M Ohms
- 50M Ohm at 500V
- Testing voltage 100 V
- 9V battery
What’s Included:
- ABS Resin Yellow Case
- Pair of Crocodile / Alligator Test Leads
- 1.5V AA Batteries x 6 (Fitted - In)
Benefits:
- User-friendly
- Precise and accurate
- Effective to be used for motors, machines and home appliances
Specifications:
| Accuracy: | +/- 5 Percentage of Indicated Value at 27 Degree C +/-5 Degree C |
| Dielectric Strength: | 3.5 KV At 50 Hz For 1 Min Between Internal Terminal And Case |
| Insulation Resistance: | More than 50 M Ohm at 500V Between Circuit and Case |
| Operating temperature: | 0 Degree to 50 Degree C |
| Relative humidity: | 80 Percentage Maximum |
| Resistance: | 0 - 20 M Ohms |
| Dimensions | 144.5x95x72.5 mm (approx.) |
| Low Battery: | When Battery Voltage Drops Below Operating Voltage, Pointer Cannot Reach Zero After Shorting The Output Terminals |
| Standards: | IS 10656 - 1983, IEC 61010, Installation Catagory II, 1000V Phase Earth |
| Storage Temperature: | - 10 Degree C to 60 Degree C |
| Test Voltage DC: | 100V |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Test Voltage DC | 100V |
|---|---|
| Power | 9V (6 x 1.5V AA) Battery |
| Resistance | 0 - 20 M Ohms |
| Storage Temperature | - 10 Degree C to 60 Degree C |
| Standards | IS 10656 - 1983, IEC 61010, Installation Catagory II, 1000V Phase Earth |
