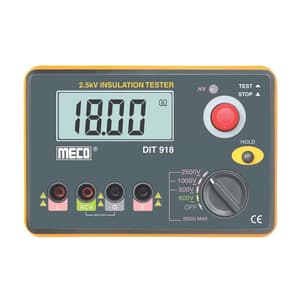

Meco 2.5kV - 20G Ohms Digital Insulation Tester With AC Voltage, DIT 918
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 438.6 kg
- AC Voltage: upto 600V
- Operating Temperature: 0°C to 40°C IRH80%)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,276 (Incl. of all taxes)
₹6,166 + ₹1,110 GST (18%)
MRP was MRP ₹7,254
Save 15%
Out of Stock
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
MECO-DIT 918 is a 2.5KV Digital Insulation Tester with 32 Digit (1999 Counts] Large Display. It measures Insulation Resistance upto 20GQ and AC Voltage upto 600VAC. It is ideally suited for testing of Insulation Resistance and Voltage of Transformers, Switches, High Voltage Systems. Cables, Appliances, Motors etc.
Features:
- 3½ Digit 1999 Count Large LCD Display
- High Accuracy for Insulation Measurement and for AC Voltage Measurement
- Range Selection & Single Person Push Button Operation
- LCD with Indicator Switch
- Data Holding Function, Function Icons on Display
- Measurement of AC Voltage upto 600VAC
- Auto Range (Insulation Test)
- Red LED Indicator for HV (High Voltage)
- Battery Operated
- As per IS10656-1983
- As per Safety Standard IEC / EN 61010-1 & 61010-31
- Over Voltage CAT III, 600V
- As per EMC Standard IEC 61326 Class B
Electrical Specfications:
Accuracy: ±1% reading + digits) at 23°C15°C; RH 75%| Specification | Test voltage | Range | Accuracy | Resolution |
| Insulation Resistance | 500V/1000V/2500V DC | 0.1M2 to 200MQ | (±3%rdg+5 dgt.) | 0.01M to 0.01G |
| 200M to 10G | (±5%rdg+5 dgt.) | |||
| 10G to 20G | (±10%rdg+5 dgt.) | |||
| AC Voltage Measurement | 0-600VAC (40-60Hz) | - | (±2%rdg+5 dgt.) | 1V |
Specifications:
| Display | 3½ Digit 1999 Count Large LCD Display with 20 mm Digit Height |
| High Voltage Indication | Yes |
| Data Hold | Yes |
| Low Resistance Warning | Yes |
| Power | 9V IAA Size x 6pcs Alkaline Batteries! |
| Operating temperature: | 0°C to 40°C IRH80%) |
| Dimensions | 150 x 100 x 70mm |
| Low Battery Indication | Yes |
| Standard Accessories | Insulation Resistance Measurement Test Leads x 1 Set 1.5V AA Batteries x 6 pcs Carrying Bag x 1pc Standard AccessoriesInstruction Manual x 1 pc |
| Storage Temperature: | 10°C to 50°C (RH & 85% ) |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| AC Voltage | upto 600V |
|---|---|
| Indicator for HV (High Voltage) | Red Led |
| Power | 9V IAA Size x 6 Alkaline Batteries! |
| Operating Temperature | 0°C to 40°C IRH80%) |
| Storage Temperature | 10°C to 50°C (RH & 85% ) |
| Dimensions | 150 x 100 x 70mm |
| Standard | IEC / EN 61010-1 & 61010-31 |
