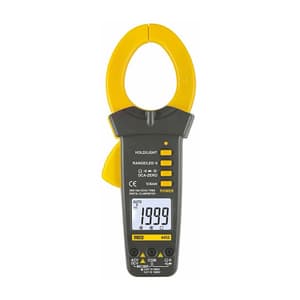

Meco 3-1/2 Digit / 1999 Count 2000V & 2000A DC/AC TRMS Auto & Manual Ranging Clampmeter, 4455
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 460 g
- Opening Jaw: 55 mm
- AC Voltage (V): 2V / 20V / 200V / 2000V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,244 (Incl. of all taxes)
₹7,834 + ₹1,410 GST (18%)
MRP was MRP ₹9,216
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital Clam Meter: 3-1/2 Digit 1999 Count 2000 V & A DC / AC TRMS Auto & Manual Ranging Digital Clampmeter with Backlight, Torchlight, Inrush Current, Capacitance, Diode Test, Audible Continuity, Data Hold and APO functions.
Features & Benefits:
- 3-1/2 Digits
- 1999 Counts
- TRMS
- Auto & Manual Ranging
- AC & DC Current upto 2000A
- AC & DC Voltage upto 2000V
- Resistance upto 20MΩ
- Capacitance
- Audible Continuity
- Diode Test
- Data Hold
- Inrush Current
- Backlight Display
- Torchlight for Clamp
- Auto Power Off
- Low Battery Indication
- Jaw Opening : Cable Dia. 55mm (max.)
Accessories
- Test Leads x 1 Pair
- 9V Battery x 1 Pc
- Instruction Manual x 1 Pc
- Carrying Case x 1 Pc
Specifications:
| AC Current (TRMS): 20A, 200A, 2000A (Auto & Manual Ranging Accuracy: ±(1.90%rdg + 10dgt) AC Response: AC Conversion Type : TRUE RMS responding, Calibrated readings consistent with sinusoidal waveform RMS. Frequency Range : 50 ~ 60Hz Overload: 2000A DC/AC RMS max. for 1 min |
| AC Voltages (TRMS): 2V, 20V, 200V, 2000V (Auto & Manual Ranging) Accuracy: ±(0.80% rdg + 10 dgts) 2V ±(0.80% rdg + 5 dgts) 20V, 200V ±(2.0% rdg + 5 dgts) 2000V AC Response: Frequency - 10Hz ~ 1KHz (200V : 10Hz to 400Hz), Display - TRUE RMS (Sinusoidal waveform RMS Calibration) |
| DC Current: 20A, 200A, 2000A (Auto & Manual Ranging) Accuracy: ±(1.90%rdg+10dgts) Overload: 2000 A DC/AC RMS max. for 1 min |
| DC Voltage: 2V, 20V, 200V, 2000V (Auto & Manual Ranging) Accuracy: ±(0.50%rdg + 5dgts) on all rages except ±(2.00% rdg + 5dgts) on 2000V |
| Resistance (Auto & Manual Ranging): 200 , 2k , 20k , 200k , 2M & 20M (ohms) Accuracy: ±(1.00%rdg + 5dgt) on 200 ohms ±(0.80%rdg + 5dgt) on 2k ohms ~2M ohms ±(1.50%rdg + 5dgt) on 20M ohms |
| Capacitance: 20nF, 200nF, F, 20 F, 2m m 200 F, 2000 F (Auto Ranging) Accuracy: ±(3%rdg + 10dgt) on all ranges except ±(5%rdg + 10dgt) on 2000 uF |
| Sp. Function: Audible Continuity, Diode Test function |
| Protection: 220VDC or AC RMS overload protection in Capacitance, Diode, Ohms & Continuity |
| Low Battery: Plus (+) & Minus (-) are indicated |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Opening Jaw | 55 mm |
|---|---|
| AC Voltage (V) | 2V / 20V / 200V / 2000V |
| DC Voltage (V) | 2V / 20V / 200V / 2000V |
| AC / DC Current | 20A / 200A / 2000A |
| Dimensions LxWxH | 270 x 100 x 46 mm |
| Power Supply | One 9V Battery |
| Battery Life | 150 Hours Typical |
