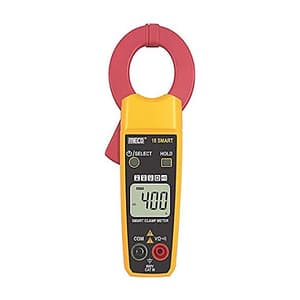

Meco 3-1/2 Digit / 2000 Count 400A AC TRMS Autoranging Smart Digital Clamp Meter, 18 SMART
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Opening Jaw: 25 mm
- Power Supply: Two 1.5V 'AAA' Size Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,561 (Incl. of all taxes)
₹1,323 + ₹238 GST (18%)
MRP was MRP ₹1,557
Save 15%
Out of Stock
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital multimeter: 3¾ Digit / 2000 count 400A AC Autoraning Smart Digital Clampmeter with Auto sensing of ACV, DCV, Resistance, Audible Continuity and Data Hold functions
Features & Benefits:
- 3½ Digits
- 2000 Counts
- Auto Selection of ACA, ACV, DCV
- AC Current upto 400A (Auto Ranging)
- AC Voltge upto 600V (Auto Ranging)
- DC Voltge upto 600V (Auto Ranging)
- Resistance upto 20MΩ (Auto Ranging)
- Audible Continuity
- Data Hold for Resistance & Continuity
- Hand Free Operation without Rotary Switch
- Tool Kit Friendly Size
- Simple to Use
- Auto Power Off
- Low Battery Indication
- Jaw Opening : Cable Dia. 25mm (max.)
Accessories
- Pair of test leads x 1,
- Instruction manual x 1,
- 1.5V batterys (installed) x 2,
- Carring Case x 1
Specifications:
| DC Voltage: 2V, 20V, 200V, 600V (Auto Ranging) Accuracy: ±(0.5% rdg + 3 dgt) on allexcept ±(1.0% rdg + 5 dgt) on 600V |
| AC Voltage: 2V, 20V, 200V, 600V (Auto Ranging) Accuracy: ±(1.2% rdg + 3 dgt) on allexcept ±(1.2% rdg + 8 dgt) on 600V |
| AC Current: 2A / 20 / 200A / 400A (Auto Ranging) Accuracy: ±(2.5% rdg + 10 dgt) on 2A / 20, ±(2.5% rdg + 10 dgt) Overload Protection: 400A AC Max. for 1 minute |
| Resistance: 200, 2k, 20K, 200k, 4M, 20M Accuracy: ±(1.5% rdg + 3 dgt) |
| Audible Continuity: 30k |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Opening Jaw | 25 mm |
|---|---|
| AC Voltage (V) | 2V / 20V / 200V / 600V |
| DC Voltage (V) | 200mV / 2V / 20V / 200V / 600V |
| AC Current (A) | 2A / 20A / 200A / 400A |
| Testing Standard | CAT III 600V |
| Dimensions LxWxH | 175 x 65 x 28 mm |
| Power Supply | Two 1.5V 'AAA' Size Battery |
| Audible Continuity | upto 30k |
