Meco 3-1/2 Digit / 2000 Count 600A AC TRMS Autoranging Digital Clamp Meter, 27-AUTO BL

Shop all Meco

SKU: ME.EL.CL.00017

Model: 27-AUTOBL

Roll over the image to zoom in


Key Features

  • Product Type: Clamp Meters
  • Opening Jaw: 25 mm
  • Power Supply: Two 1.5V 'AAA' Size Battery
See all product information

ToolBuy Benefits

₹1,408 (Incl. of all taxes)

₹1,193 + ₹215 GST (18%)

MRP was MRP ₹1,404

Save 15%



3 Business Days

1

90303390

Download Product LeafletNot available
Download Meco CatalogueNot available

Highlights

Digital multimeter: 3-1/2 digit / 2000 count 600A AC TRMS Digital Clampmeter with NCV (LED, Buzzer & EF Strength) Backlight, Torch Light, Audible Continuity, Data Hold, Diode Test and APO functions

Features & Benefits:

  • Display 3½ digit liquid crystal display (LCD) with a maximum reading of 2000 counts.
  • Polarity Automatic, positive implied, negative polarity indication.
  • Overrange (OL) or (-OL) is displayed.
  • Zero Automatic.
  • Low battery indication is displayed when the battery
  • voltage drops below the operating level.
  • Measurement rate  n 3 times per second, nominal.
  • Operating 0°C to 50°C at < 70% relative humidity.
  • Environment Storage -20°C to 60°C, 0 to 80% R.H. with battery
  • Maximum Jaw  25 mm Opening
  • Temperature removed from meter.
  • Accuracy Stated accuracy at 270
  • C ± 50ºC, <75% relative humidity.
  • Power Two 1.5V ‘AAA’ Size Battery
  • Battery life 200 hours typical
  • Dimensions 185 x 65 x 28mm (approx.)

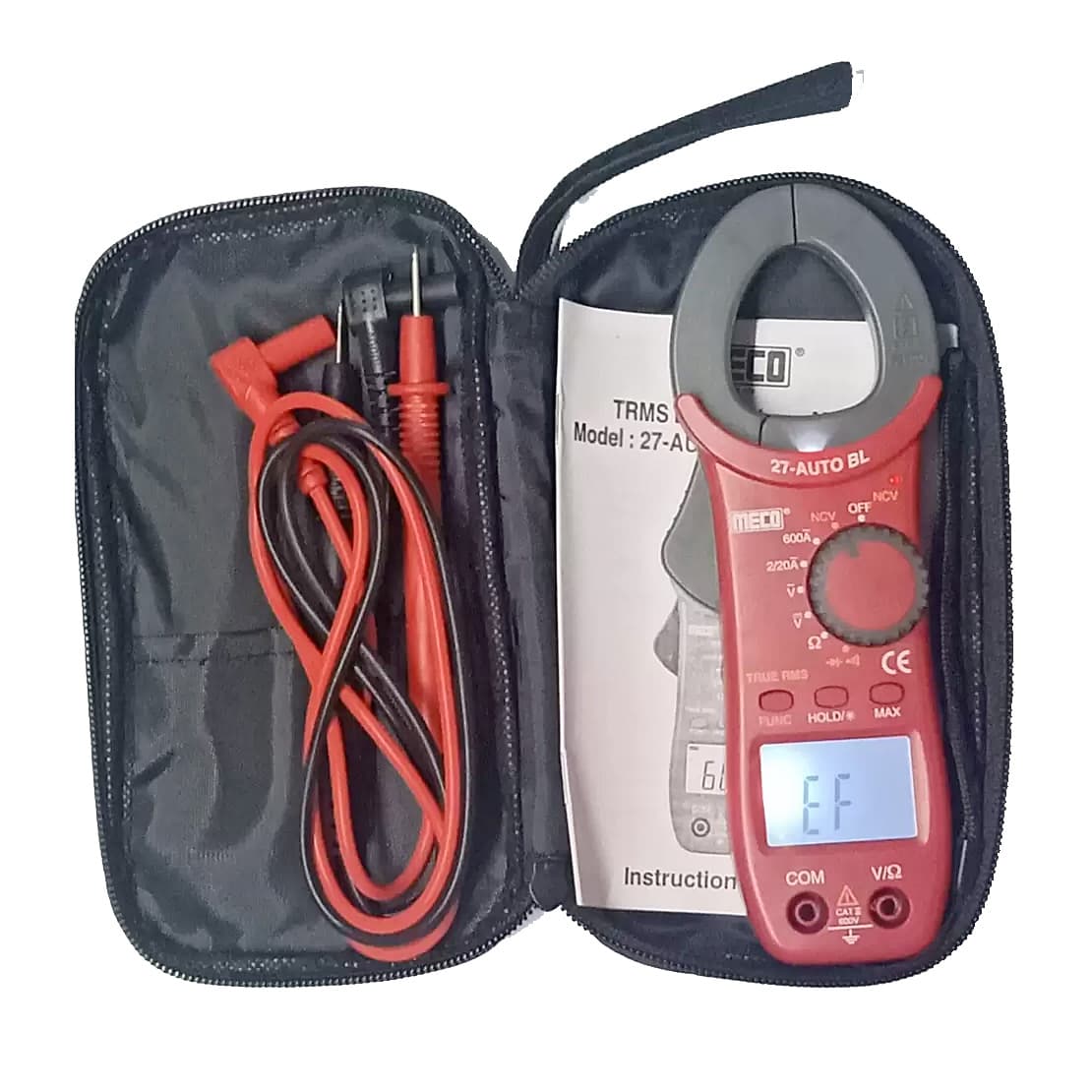

Accessories

  • Pair of test leads x 1,
  • Instruction manual x 1,
  • 1.5V batterys (installed) x 2,
  • Carring Case x 1


Specifications:

DC Voltage: 200mV-600V(Auto Ranging)
Accuracy: ±(0.8% rdg + 3 dgt)
Overload Protection: 600V DC / AC rms
AC Voltage: 2V, 20V, 200V, 600V (Auto Ranging)
Accuracy: ±(1.2% rdg + 3 dgt)
Overload Protection: 600V DC / AC rms
Diode Test
Measurement Current : 1.0 ± 0.6 mA Approx.
Open Circuit Voltage : 1.6V Approx.
AC Current: 2A, 20A, 200A, 400A (Auto Ranging)
Accuracy: ±(1.2% rdg + 4 dgt) on all except  , ±(2% rdg + 4 dgt) on 20A
Overload Protection: 400A AC Max for 1 minute
Resistance: 200 , 2k , 20K , 200k , 2M , 20M (Auto Ranging)
Accuracy: ±(1.2 % rdg + 3dgt)
Overload Protection: 250V DC / AC rms

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Meco 3-1/2 Digit / 2000 Count 600A AC TRMS Autoranging Digital Clamp Meter, 27-AUTO BL
Opening Jaw25 mm
AC Voltage (V)2V / 20V / 200V / 600V
DC Voltage (V)200mV / 2V / 20V / 200V / 600V
AC Current (A)2A / 20A / 200A / 400A
DC Current (A)400A / 600A
Testing StandardCAT II 600V
Diode Accuracy1.0 ± 0.6 mA Approx
Dimensions LxWxH255 x 73 x 38 mm
Power SupplyTwo 1.5V 'AAA' Size Battery
