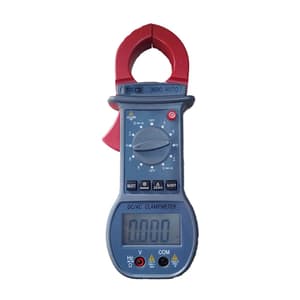

Meco 3-3/4 Digit / 4000 Count 600A AC / DC Autoranging Digital Clamp Meter, 3690-AUTO
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 280 g
- Opening Jaw: 30 mm
- Power Supply: Two 1.5V 'AAA' Size Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,847 (Incl. of all taxes)
₹4,108 + ₹739 GST (18%)
MRP was MRP ₹4,833
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital multimeter: 3¾ Digit / 4000 count 600A AC/DC Autoranging Digital Clampmeter with Frequency, Duty Cycle, Audible Continuity, Data Hold, Diode Test, REL Test and APO functions
Features & Benefits:
- Display : 3¾ digit liquit crystal display (LCD) Max reading 4000 counts
- Polarity : Automatic, Positive implied, (-) negative polarity indication
- Zero adjustment : Automatic Over range indication : "OL" or "-OL"
- Low battery : “ ” mark turns on.
- Sample rate : 3 times per second, nominal
- Operating conditions : O0 C to +500 C at > 75% RH (Noncondensing)
- Storage conditions : -200 C to +600 C, 80% RH with battery removed Accuracy :
- Accuracy specification at 270 C ± 50 C less than 75% RH.
- Power Supply : Two 1.5 V AAA size battery
- Battery Life : 150 hours typical with carbon zinc
- Dimensions : 215mm (H) x 80mm (W) x 40 mm(D)
- Weight : 280 gms (approx.)
- Max. Jaw Opening : 30mm
Accessories
- Pair of test leads x 1,
- Instruction manual x 1,
- 1.5V batterys (installed) x 2,
- Carring Case x 1
Specifications:
| DC Voltage: 400mV, 4V, 40V, 400V, 600V Resolution : 0.1mV to 1V Accuracy : ± (0.5 % rdg + 8 dgts) on 400mV to 400V ± (0.7 % rdg +2 dgts ) on 600V Input impedance : >10MV Over load protection : 600V DC or 600V AC rms. |
| AC Voltage: 4V, 40V, 400V, 600V Resolution : 1mV to 1V Accuracy : ± (1.2 % rdg + 4 dgts ) on 50 - 60 Hz ± (2% rdg + 25 dgts) on 40 - 500Hz ± (4% rdg +5dgts ) on 600v Input impedance : >10MV Over load protection : 600V DC or 600V AC rms. |
| DC Current: 600A, 400A (Auto Ranging) Accuracy: ± (1.5% rdg ± 5 dgts) For 400A, ± (2.0% rdg ± 5 dgts) Overload Protection: 1200A DC Max.for 1 minute |
| AC Current: 600A, 400A (Auto Ranging) Accuracy: ± (1.75% rdg ± 5 dgts) For 400A, ± (3.5% rdg ± 5 dgts) Overload Protection: 1200A DC Max.for 1 minute |
| Resistance: 400V, 4KV, 40KV, 400KV, 4MV, 40MV Resolution : 0.1V to 0.01MV Accuracy : ± (0.75% rdg + 8 dgts) on 400V to 400KV ± (1.0 % rdg +6 dgts) on 4MV ± (2-0 % rdg +4 dgts) on 40MV Open Circuit Volts : 0.4V DC Over load protection : 600V DC or AC rms |
| Frequency: 100Hz, 1KHz, 10KHz, 100KHz, 500KHz Resolution : 0.1 Hz to 0.1 KHz Accuracy : ± (0.3 % rdg + 2 dgts) Sensitivity : 3.0V rms min. Effect reading : 10 - 9999 Overload protection : 200V DC or AC rms. |
| Diode test Test Current : 1.0 mA ± 0.6 mA Accuracy : ± (3.0% rdg + 3 dgts) only for refrence Open circuit volts : 3.0V DC typical. Overload protection : 600V DC or AC rms. |
| Continuity Audiable indication : less than 40V ± 20V Overload protection : 600V DC or AC rms. |
| % Duty Cycle (auto ranging) Range : 1% to 90 % Accuracy : ± (0.5 % rdg + 5 dgts) Resolution : 0.1 % Overload protection : 200V DC or AC rms. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Opening Jaw | 30 mm |
|---|---|
| AC Voltage (V) | 4V, 40V, 400V, 600V |
| DC Voltage (V) | 400mV, 4V, 40V, 400V, 600V |
| AC Current (A) | 400A / 600A |
| DC Current (D) | 400A / 600A |
| Storage conditions | -200 C to +600 C, 80% RH |
| Testing Standard | CAT II 600V |
| Diode Accuracy | 1.0 ± 0.6 mA Approx |
| Dimensions | 215mm (H) x 80mm (W) x 40 mm(D) |
| Power Supply | Two 1.5V 'AAA' Size Battery |
| Battery Life | 150 hours typical with carbon zinc |
