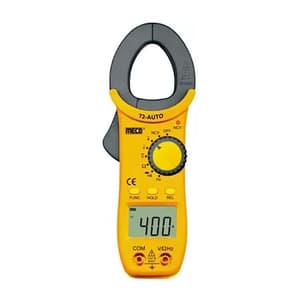

Meco 3-3/4 Digit / 4000 Count 600A AC TRMS Autoranging Digital Clamp Meter, 72-AUTO BL
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Opening Jaw: 25 mm
- Power Supply: Two 1.5V 'AAA' Size Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,815 (Incl. of all taxes)
₹1,538 + ₹277 GST (18%)
MRP was MRP ₹1,809
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital multimeter: 3¾ Digit / 4000 count 600A AC TRMS Digital Clampmeter with NCV (LED, Buzzer & EF Strength) Backlight, Torch Light, Audible Continuity, Data Hold, Diode Test, REL Test and APO functions
Features & Benefits:
- Display 3¾ digit liquid crystal display (LCD) with a maximum reading of 2000 counts.
- Polarity Automatic, positive implied, negative polarity indication.
- Overrange (OL) or (-OL) is displayed.
- Zero Automatic.
- Low battery indication is displayed when the battery
- voltage drops below the operating level.
- Measurement rate n 3 times per second, nominal.
- Operating 0°C to 50°C at < 70% relative humidity.
- Environment Storage -20°C to 60°C, 0 to 80% R.H. with battery
- Maximum Jaw 25 mm Opening
- Temperature removed from meter.
- Accuracy Stated accuracy at 270
- C ± 50ºC, <75% relative humidity.
- Power Two 1.5V ‘AAA’ Size Battery
- Battery life 200 hours typical
- Dimensions 185 x 65 x 28mm (approx.)
Accessories
- Pair of test leads x 1,
- Instruction manual x 1,
- 1.5V batterys (installed) x 2,
- Carring Case x 1
Specifications:
| DC Voltage: 400mV, 4V, 40V, 400V, 600V(Auto Ranging) Accuracy: ±(0.8% rdg + 3 dgt) Overload Protection: 600V DC / AC rms |
| AC Voltage: 4V, 40V, 400V, 600V (Auto Ranging) Accuracy: ±(1.2% rdg + 3 dgt) Overload Protection: 600V DC / AC rms |
| AC Current: 40A, 400A (Auto Ranging) Accuracy: ±(1.2 % + 5 Digits) Overload Protection: 400A AC Max. for 1 minute |
| Resistance: 400, 4k, 40K, 400k, 4M, 40M Accuracy: ±(1.2% rdg + 3 dgt) Overload Protection: 250V DC / AC rms |
| Frequency: : 10Hz, 100Hz, 1000Hz, 10KHz, 100KHz, 1000KHz, 10MHz Accuracy: ± (0.5% rdg + 2 dgt) Sensitivity : Approx 0.7V Overload Protection : 250V DC / AC rms |
| Continuity Check Threshold Level : 40V Approx. Response Time : 1m Sec. Approx. Open Circuit Voltage : 0.4V Approx. Indication : ‘ ’ is displayed on LCD and buzzer sounds at continuity. |
| Diode Test: Measurement Current : 1.0 ± 0.6 mA Approx. Open Circuit Voltage : 1.6V Approx. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Opening Jaw | 25 mm |
|---|---|
| AC Voltage (V) | 2V / 20V / 200V / 600V |
| DC Voltage (V) | 200mV / 2V / 20V / 200V / 600V |
| AC Current (A) | 2A / 20A / 200A / 400A |
| Testing Standard | CAT II 600V |
| Diode Accuracy | 1.0 ± 0.6 mA Approx |
| Dimensions LxWxH | 255 x 73 x 38 mm |
| Power Supply | Two 1.5V 'AAA' Size Battery |
