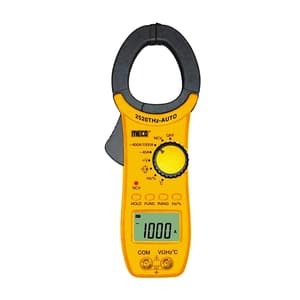

Meco 3-5/6 Digit / 6000 Count 1000A AC Autoranging Digital Clamp Meter, 2520THz-AUTO BL
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Opening Jaw: 52 mm
- Power Supply: Two 1.5V 'AAA' Size Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,844 (Incl. of all taxes)
₹2,410 + ₹434 GST (18%)
MRP was MRP ₹2,835
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital multimeter: 3-5/6 Digit / 6000 count 1000A AC Autoranging Digital Clampmeter with K Type Thermocouple, Temperature, NCV (LED, Buzzer & EF Strength) Backlight, Torch Light, Cpacitanence, Frequency, Duty Cycle, Audible Continuity, Data Hold, Diode Test and APO functions
Features & Benefits:
- 3 5/6 Digits
- 6000 Counts
- TRMS
- Auto / Manual Ranging
- AC Current upto 1000A
- AC Voltage upto 750V
- DC Voltage upto 1000V
- Capacitance upto 600µF
- Frequency upto 10MHz
- Duty Cycle 0.1% ~ 99%
- Resistance upto 60MΩ
- Temperature
- Audible Continuity
- Diode Test
- Data Hold
- Backlight Display
- Torchlight for Clamp
- NCV (LED, Buzzer & EF Strength)
- Auto Power Off
- Low Battery Indication
- Jaw Opening : Cable Dia. 52mm (max.)
Accessories
- Pair of test leads x 1,
- Instruction manual x 1,
- 1.5V batterys (installed) x 2,
- Carring Case x 1
- K Type Thermocouple upto 260ºC
Specifications:
| DC Voltage: 400mV, 4V, 40V, 400V, 1000V |
| AC Voltage: 4V, 40V, 400V, 750V |
| AC Current: 40A, 400A, 1000A |
| Resistance: 400, 4k, 40K, 400k, 4M, 40M |
| Frequency: 10Hz, 100Hz, 1000Hz, 10KHz, 100KHz, 1000KHz, 10MHz (Auto Ranging) |
| Capacitance : 6nF, 60nF, 600nF, 6μF, 60μF, 600μF |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Opening Jaw | 52 mm |
|---|---|
| AC Voltage (V) | upto 750V |
| DC Voltage (V) | upto 1000V |
| AC Current (A) | upto 1000A |
| Testing Standard | CAT II 600V |
| Duty Cycle | 0.1% ~ 99% |
| Dimensions LxWxH | 245 x 95 x 35 mm |
| Power Supply | Two 1.5V 'AAA' Size Battery |
| Battery Life | 200 Hrs (Typical) |
