Meco 3-5/6 Digit / 6000 Count 1000A AC TRMS Autoranging Digital Clamp Meter, 1008-TRMS
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Opening Jaw: 52 mm
- Power Supply: Two 1.5V 'AAA' Size Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,053 (Incl. of all taxes)
₹3,435 + ₹618 GST (18%)
MRP was MRP ₹4,041
Save 15%
Out of Stock
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital multimeter: 3-5/6 Digit / 6000 count 1000A AC TRMS Autoranging Digital Clampmeter with uA Range, Backlight, K Type Thermocouple, Temperature, Frequency, Duty Cycle, Capacitance, Diode Test, Audible Continuity, Data Hold and APO functions
Features & Benefits:
- 3 5/6 Digits
- 6000 Counts
- TRMS
- Auto / Manual Ranging
- DC Voltage upto 1000V
- AC Voltage upto 750V
- DC Current upto 6000µA
- AC Current upto 1000A
- Resistance upto 60MΩ
- Capacitance upto 9.999mF
- Frequency upto 10MHz
- Duty Cycle 0.1% ~ 99.9%
- Temperature
- Diode Test
- Audible Continuity
- Data Hold
- Backlight Display
- Auto Power Off
- Low Battery Indication
- Jaw Opening : Cable Dia. 30mm (max.)

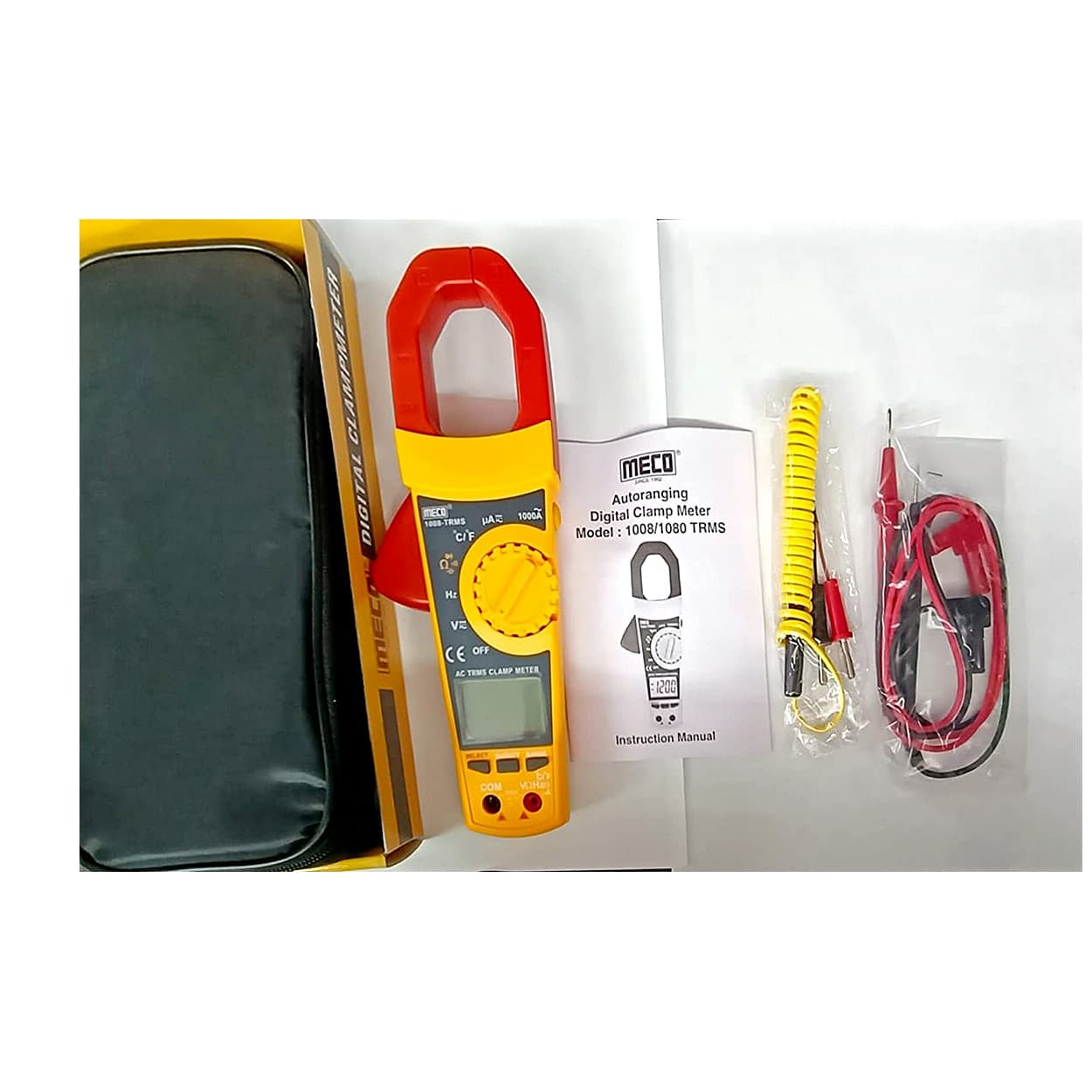

Accessories:
- One pair of test leads,
- Instruction manual,
- 1.5V batterys (installed),
- Carring Case,
- K Type Thermocouple upto 260ºC
Specifications:
| DC Voltage: 600 mV-1000 V Accuracy: ±(0.5 % + 3 Digits) |
| AC Voltage: 600 mV-750 V Accuracy: ±(0.8 % + 10 Digits) |
| DC Current: 0-6000 µA Accuracy: ±(0.8 % + 10 Digits) |
| AC Current: 0-1000 A Accuracy: ±(2.0 % + 30 Digits) |
| Resistance: 0-60 MΩ Accuracy: ±(1.0 % + 25 Digits) |
| Capacitance: 9.99 nF-9.99 mF Accuracy: ±(3.5 % + 60 Digits) |
| Frequency: 99.99 Hz-20 MHz Accuracy: ±(0.01 % + 3 Digits) |
| Temperature: 20° to 1000°C Accuracy: ±(1.5 % + 15 Digits) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Opening Jaw | 52 mm |
|---|---|
| AC Voltage (V) | 0 - 750 V |
| DC Voltage (V) | 0 - 1000 V |
| AC Current (A) | 0-1000 A |
| Resistance | upto 20MO |
| Dimensions LxWxH | 245 x 95 x 35 mm |
| Power Supply | Two 1.5V 'AAA' Size Battery |
