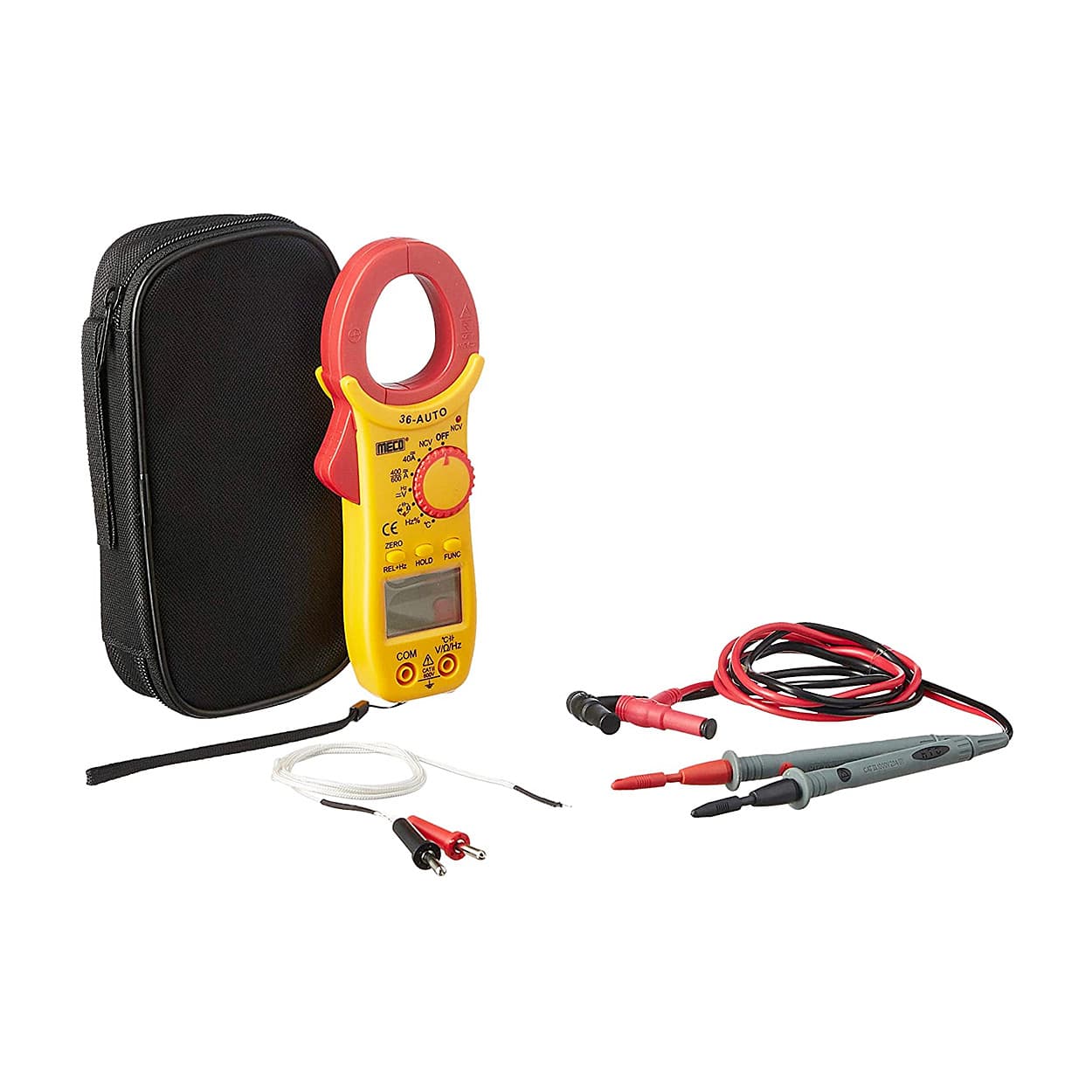

Meco 3-5/6 Digit / 6000 Count 600A AC TRMS Autoranging Digital Clamp Meter, 36-Auto BL
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 170 g
- Opening Jaw: 30 mm
- Power Supply: Two 1.5V 'AAA' Size Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,755 (Incl. of all taxes)
₹3,182 + ₹573 GST (18%)
MRP was MRP ₹3,744
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital multimeter: 3-5/6 Digit / 6000 count 600A AC/DC Autoranging Digital Clampmeter with K Type Thermocouple, Temperature, NCV (LED, Buzzer & EF Strength), Backlight, Torch Light, Cpacitanence, Frequency, Duty Cycle, Audible Continuity, Data Hold, Diode Test and APO functions
Features & Benefits:
- 3 5/6 Digits
- 6000 Counts
- TRMS
- Auto / Manual Ranging
- AC Current upto 1000A
- AC Voltage upto 750V
- DC Voltage upto 1000V
- Capacitance upto 600µF
- Frequency upto 10MHz
- Duty Cycle 0.1% ~ 99%
- Resistance upto 60MΩ
- Temperature
- Operating Environment 0 to 50C
- Storage Environment -20 to 60C
- Relative humidity 80% RH
- NCV (LED, Buzzer & EF Strength)
- Auto Power Off
- Low Battery Indication
- Jaw Opening : Cable Dia. 30mm (max.)
- Auto Ranging Digital Clampmeter with LCD Backlight.
- Torch Light.
- Auto Power Off.
- Resistance.
- Audible Continuity.
- Data Hold.
- When the Resistance is Less than 30%, The Buzzer is Sounded.
Accessories:
- Pair of test leads x 1,
- Instruction manual x 1,
- 1.5V batterys (installed) x 2,
- Carring Case x 1
Specifications:
| DC Voltage: 400mV, 4V, 40V, 400V, 600V Accuracy : ±3% rdg + 3dgt |
| AC Voltage:4V, 40V, 400V, 600V (Auto Ranging) Accuracy: ±1.2% rdg +3 dgt |
| AC Current : 40A, 400A Accuracy: ± 2.5% rdg + 8 dgt |
| Resistance: 400Ω, 4KΩ, 40KΩ, 400KΩ, 4MΩ, 40MΩ (Auto Ranging) Accuracy 1.0 % rdg + 3 dgt |
| % Duty Cycle 0.1% to 99.9% (Auto) Accuracy ± 0.5%rdg+ 5dgt |
| Frequency: 10Hz, 100Hz, 1000Hz,10KHz, 100KHz, 1000KHz, 10MHz (Auto Ranging) Accuracy ± 0.5%rdg+ 2dgt Sensitivity 3V Over Volt Protection 200V DC or AC peak |
| Capacitance: 5nF, 50nF, 500nF, 5μF, 50μF, 200μF (Auto) Accuracy: ± 4% rdg + 3 dgt |
| Temperature: 20° to 750°C Accuracy: 3.0 % + 5 Digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Opening Jaw | 30 mm |
|---|---|
| AC Voltage (V) | 0 - 600 V |
| DC Voltage (V) | 400 mV - 600 V |
| AC Current (A) | 0 - 600 A |
| Resistance | upto 40MO |
| Battery Life | 150 Hours Typical |
| Dimensions LxWxH | 220 x 85 x 46 mm |
| Power Supply | Two 1.5V 'AAA' Size Battery |
