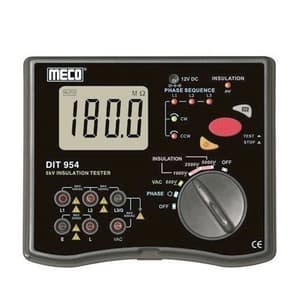

Meco 5kV - 200G Ohms Digital Insulation Tester With AC Voltage, DIT 954
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 900 kg
- AC Voltage: upto 600V
- Operating Temperature: 0°C to 40°C IRH80%)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,459 (Incl. of all taxes)
₹11,406 + ₹2,053 GST (18%)
MRP was MRP ₹13,419
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
MECO-DIT 954/DIT 954R are 5KV Digital Insulation Testers with 3½ Digit (1999 Counts! Large Display and Backlight. This measures Insulation Resistance upto 20000. AC Voltage upto 600VAC and check Phase Sequence and Phase Status Indication
Features:
- 3 Digit (1999 Counts! Large LCD Display
- Range Selection & Single Person Push Button Operation
- LCD with Green Backlight Data Holding Function
- Display with Annunciators
- Measurement of AC Voltage upto 600VAC
- Red LED Indicator for HV High Vogel
- Inbuilt Protection Circuit to prevent the harm of r
- Battery Operated with AC Adaptor
- Suitable for Calculating PI & DAR Manually
- As per 1510656-1987
- Measurement of Phase Sequence Between IPhase-Phase Voltagel with LED Indicators & Beep Facility
- Over Voltage CAT , 400
- As per Safety Standard (CC/EN 610101 & 01-F
- Auto Range (insulation Test)
- IP 44 Protection
Electrical Specfications:
Accuracy: ±(% reading + digits) at 23°C15°C; RH 75%
| Specification | Test voltage | Range | Accuracy | Resolution |
| Insulation Resistance | 1000V/2500V/5000V DC | 0.1M2 to 200MQ | (±3%rdg+5 dgt.) | 0.01M to 0.1G |
| 200M to 10G | (±5%rdg+5 dgt.) | |||
| 10G to 20G | (±10%rdg+5 dgt.) | |||
| AC Voltage Measurement | 0-600VAC (40-60Hz) | - | (±2%rdg+5 dgt.) | 1V |
| Phase Sequence Test | 100V - 450V (Phase to Phase) 40 - 60 Hz | - | - | - |
Specifications:
| Display | 3½ Digit 1999 Count Large LCD Display with 29 mm Digit Height |
| Over Range Indication | 1 is displayed |
| Power | 12V IAA Size x 8 pcs Alkaline Batteries! |
| Operating temperature: | 0°C to 40°C IRH80%) |
| Dimensions | 190 x 155 x 75 mm |
| LCD | Green Light |
| Storage Temperature: | 10°C to 50°C (RH & 75% ) |
| Standard Accessories | Insulation Resistance Measurement Test Leads x 1 Set Phase Sequence Measurement wire x 1 Set AC Adapter x 1 12 V AA Batteries x 8 pcs Heavy Duty Carrying Bag x 1pc Standard AccessoriesInstruction Manual x 1 pc |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| AC Voltage | upto 600V |
|---|---|
| Insulation Resistance Test Range | 5 KV - 200 G Ohm |
| Power | 12V AA Size x 8 Alkaline Batteries! |
| Operating Temperature | 0°C to 40°C IRH80%) |
| Storage Temperature | 10°C to 50°C (RH & 75% ) |
| Dimensions | 190 x 95 x 75 mm |
| Accessories | Insulation test lead for high Voltage - 1 Phase wire - 1 Set AC Adapter x 1 Heavy Duty carry case x 1 Instruction Manual x 1. |
