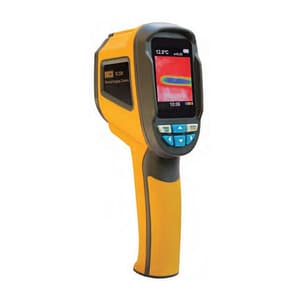

Meco Handheld Thermal Imaging Camera, TIC 300
Roll over the image to zoom in
Key Features
- Product Type: Thermal Imaging Camera
- Weight: 389 g
- Display: 2.4 Inch Colour
- Resolution: 60 x 60
- Pixels: 3600
- Image Storage: Micro SD 4GB
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹40,441 (Incl. of all taxes)
₹34,272 + ₹6,169 GST (18%)
MRP was MRP ₹40,320
Save 15%
Out of Stock
5 Business Days
1
90278090
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Handheld Thermal Imaging Camera : 20c to 300C ./ -4 F to 572 F Resolution : 60 x 60, Pixels 3600, Memory: 4GB Micro SD Card
Features & Benefits:
- Display : 2.4" Color Display
- Resolution : 60 X 60
- Total Pixels : 3600
- FOV / Shortest Focal Lenght : 20° x 20° / 0.5m
- Thermal Sensitivity : 0.15°C
- Measuring Mode : Infrared Focal Plane Measuring Termperature
- Temperature Range : -20°C ~ 300°C (-4°F ~ 572°F)
- Measuring Accuracy : ±2% digital / ±2°C
- Wavelength Range : 8 ~ 14µm
- Image Capturing Frequency : 6HzEmissivity : 0.1 ~ 1.0 (Adjustable)
- Focus Mode : Fixed
- Palette : iron Red Color, Rainbow, Rainbow High Contrast, Grey Scale (White Glow) and Grey Scale (Black Glow)
- Image Storage : Card (4GB)
- Memory Card : Micro SD Card (installed)
- File Format : BMP
- Set Control : Unit Adjustment / Language / Date Time Format / Automatic Shut Down
Applications:
- Predictive Maintenance of Electrical Equipment
- Transport Industry and Car Maintenance
- Electronic & Electrical Manufacturing
- Archaeological Study
- Automotive Manufacturing
- Furnace & Smelting
Specifications:
| Display: | 2.4 Inch Colour Display |
| Drop Resistance: | 2m |
| Image capturing Frequency: | 6 HZ |
| Image Storage: | Micro SD 4GB |
| Relative humidity: | 10 to 80 Percentage RH |
| Resolution: | 60x60 |
| Temperature Range: | - 50 Degree Celsius to 1050 Degree Celsius |
| Storage Temperature: | - 20 to 50 Degree C |
| Dimensions: | 212 x 95 x 62 mm |
| Temperature Range: | - 20 to 300 Degree C |
| Thermal Sensitivity: | 0.3 Degree C |
| Vibration: | 2G, IEC 60068 - 2 - 6 |
| Waterproof Rating: | IP54 |
| Wavelength Range | 8 ~ 14µm |
| Accessories: | Carrying Case, Inst.Manual, Micro SD Card (installed), AA x 4 Batteries (installed) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 2.4 Inch Colour |
|---|---|
| Resolution | 60 x 60 |
| Pixels | 3600 |
| Vibration | 2G, IEC 60068 - 2 - 6 |
| Image Storage | Micro SD 4GB |
| Image capturing Frequency | 6 HZ |
