Hikmicro -20°C to 550°C Handheld Thermal Imaging Camera (9216 Pixels IR Resolution), ECO Lite
Roll over the image to zoom in
Key Features
- Product Type: Thermal Imaging Camera
- Weight: 228 g
- Temperature Range (°C): -20°C to 150°C / 100°C to 550°C
- Temperature Range (°F): -4°F to 302°F / 212°F to 1022°F
- IR Resolution: 96 × 96 (9216 Pixels)
- Field of View (FOV): 50° × 50°
- Focus Mode: Focus Free
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,355 (Incl. of all taxes)
₹13,860 + ₹2,495 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Hikmicro CatalogueNot available
Download Hikmicro CatalogueNot available
Highlights
This handheld thermal imager utilizes thermal imaging technology and is specifically designed for home temperature measurement applications. It offers comprehensive functionality while remaining extremely user-friendly, featuring a spot-temperature measurement mode, making it an excellent choice for those new to thermal imaging.
Features:
- Two temperature measurement methods: Thermometer Mode and Multiple Measurement Tools (Center Spot, Max Spot, Min Spot)
- Built-in 80M (user available storage space is less than the nominal capacity)
- Up to 14 hours continuous running
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Blue Yellow
- Temperature Measurement Mode: Thermometer Mode, Measurements Presets (Center Spot, Max Spot, Min Spot, Off)
Accuracy:
- Max (±2°C/3.6°F, ±2%)
- At ambient temperature 25°C (77°F)
- Object temperature above 0°C (32°F)
Package Content:
- 1x Thermal Imaging Camera
- 1x Wrist Strap
- 1x USB-A to USB Type-C Cable
- 1x Quick Start Guide

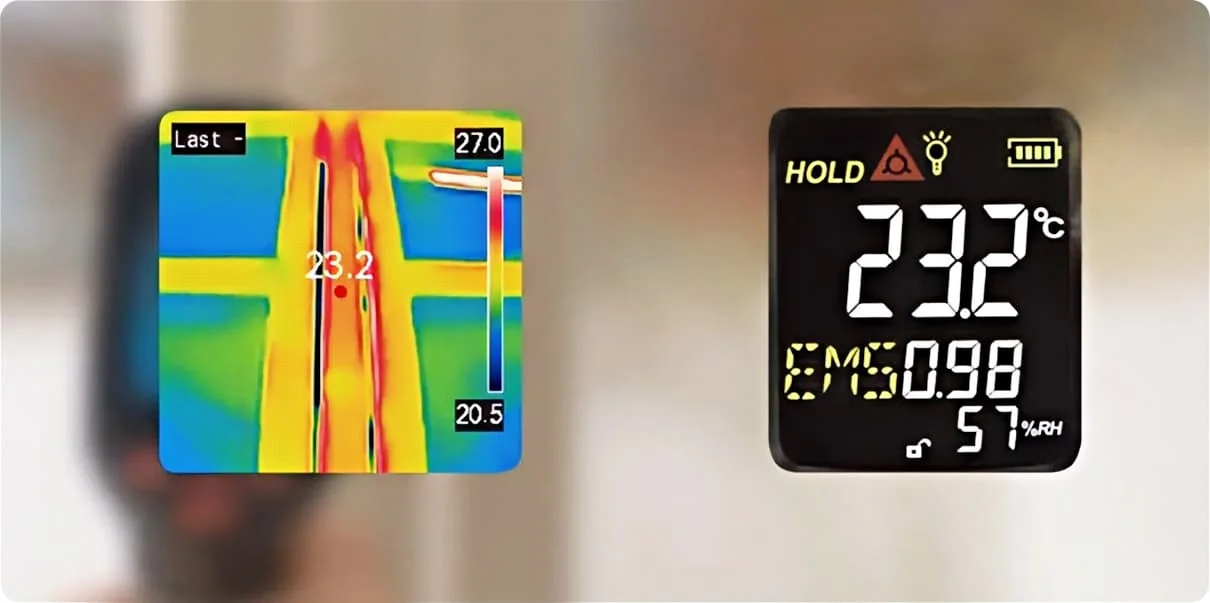

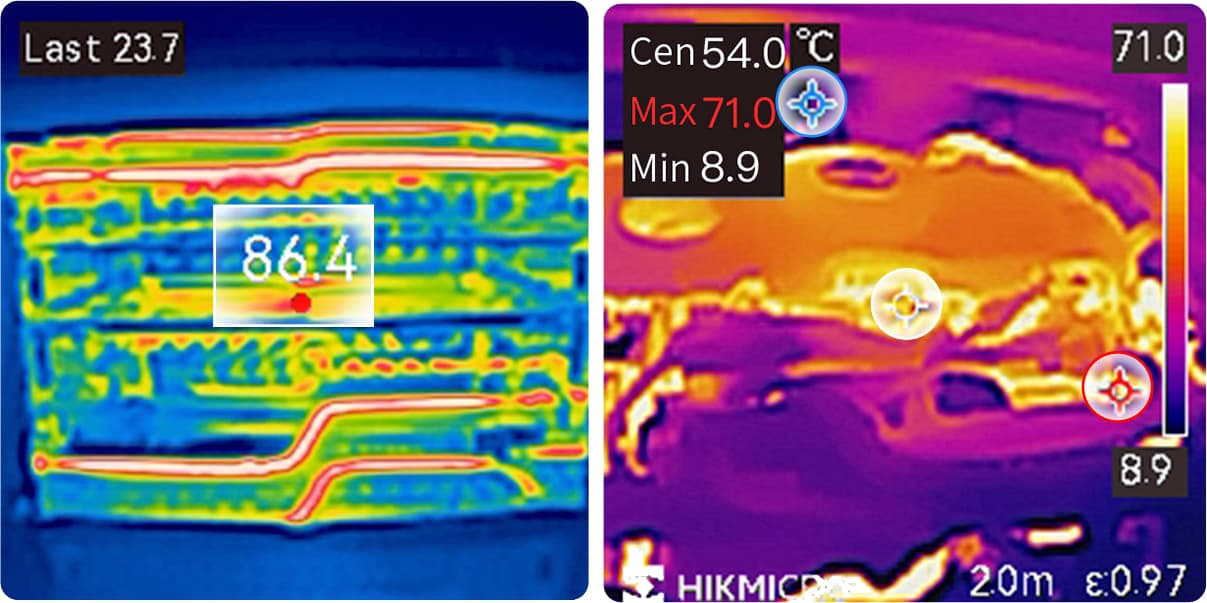

 Visual Thermometer Display Forget single-point checks. Replace boring numbers with visuals, revealing every insulation flaw in real-time on the full screen. |
 Dual-Mode Live Tracking Prefer using a thermometer? No problem. Both modes support continuous real-time tracking of temperature fluctuations. |

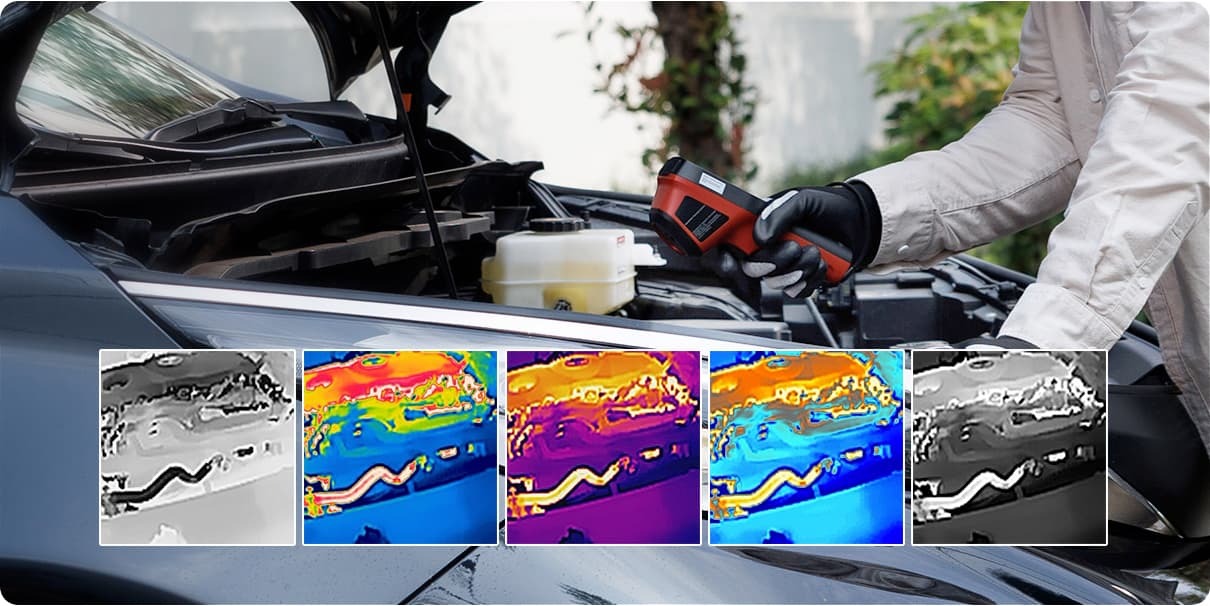

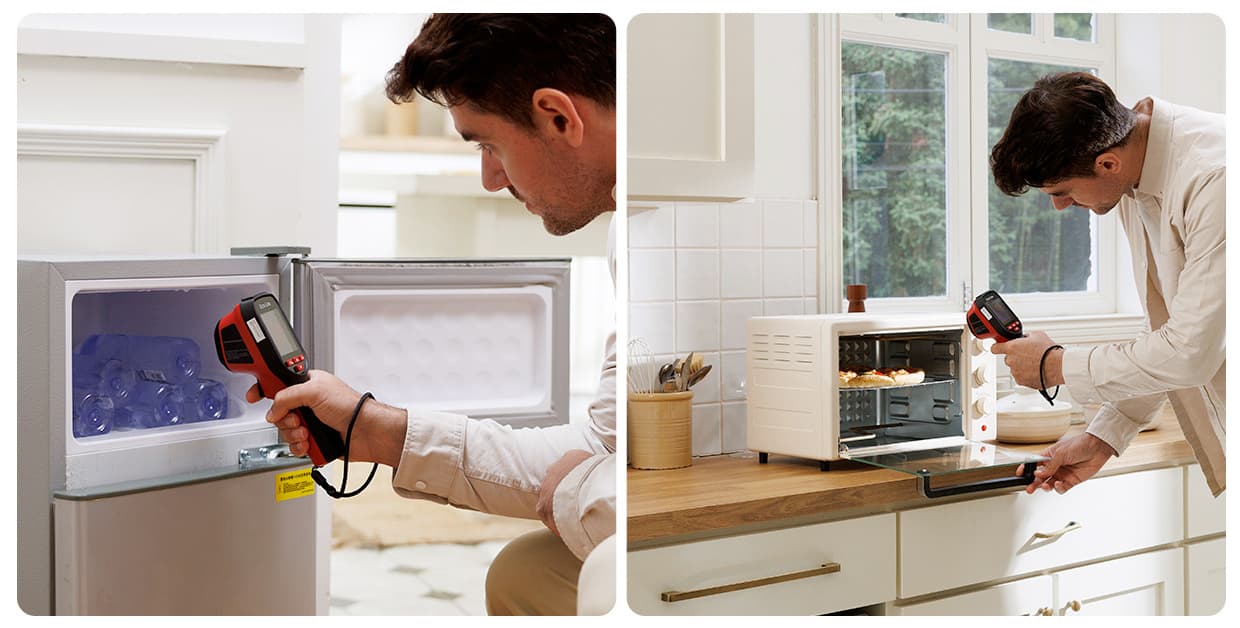

 Multi-Scenario Versatility One tool, multiple uses: From home kitchens and HAVC repairs to car maintenance, it effortlessly handles all your everyday inspection tasks. |
 Broad Temperature Coverage Covering a vast range from -20°C to 550°C, no daily temperature anomaly is beyond your sight. -20°C to 550°C Temperature Range |

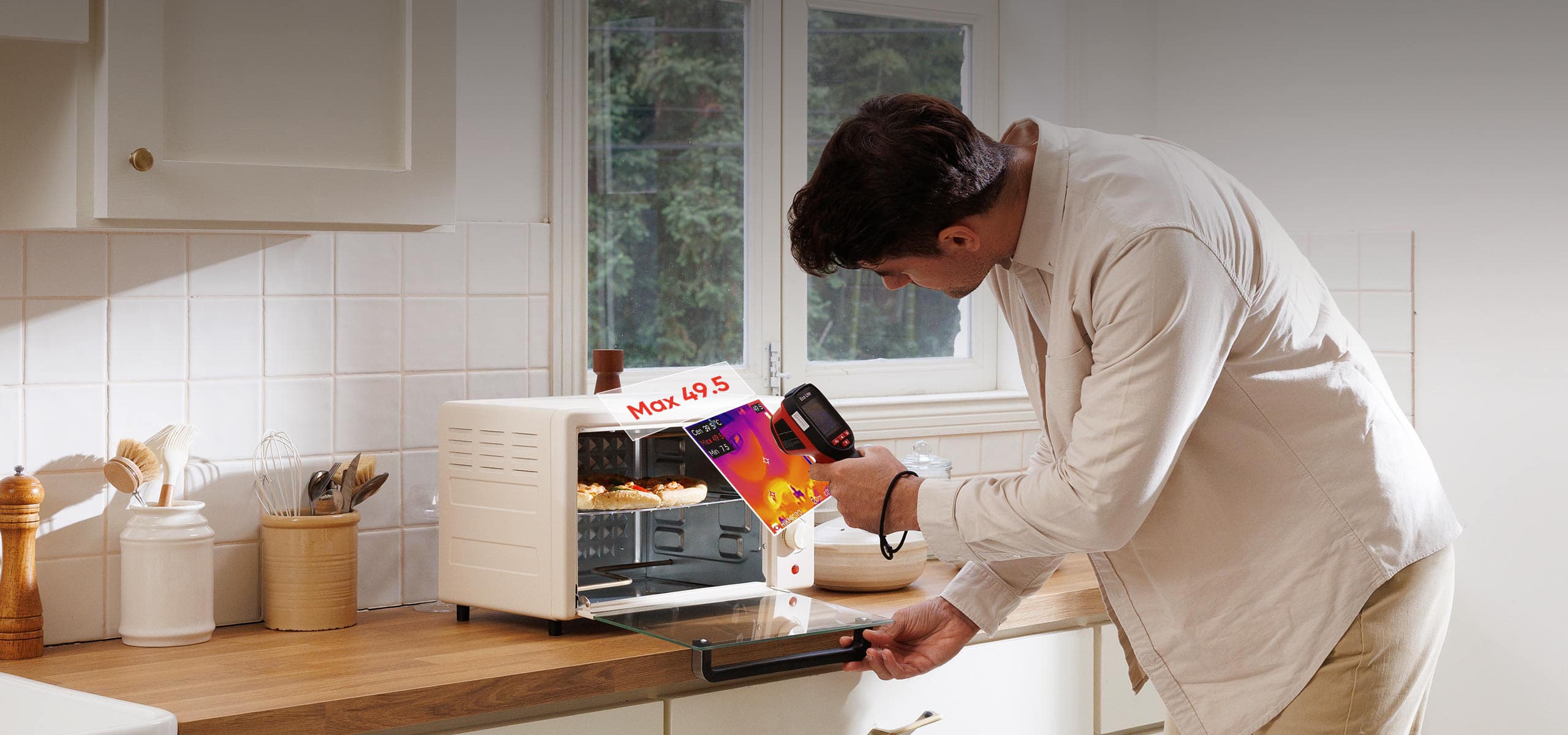

 High/Low Temperature Alarm Add an alarm function your thermometer never had - know instantly when oven temperatures get too high. |

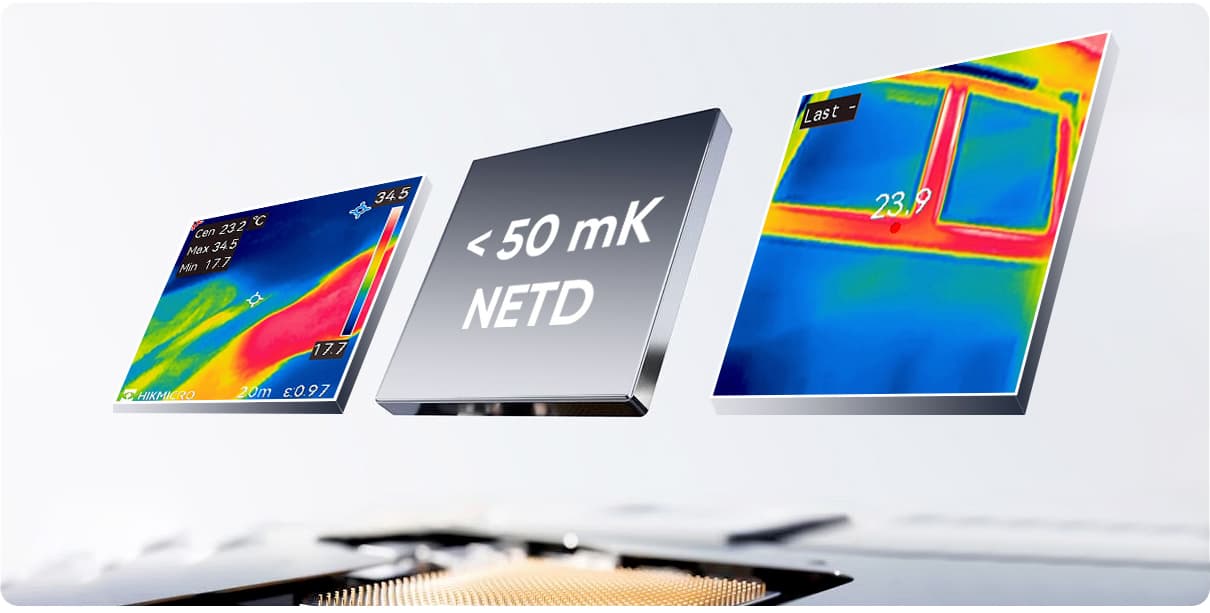

 High Precision Measurement The exceptional thermal imaging sensor captures the slightest temperature changes as small as 0.05°C. |
 Enhanced IR Resolution The 96 x 96 IR resolution displays temperatures for 9,216 pixels at once, paired with detail enhancement algorithms to improve image detail. |

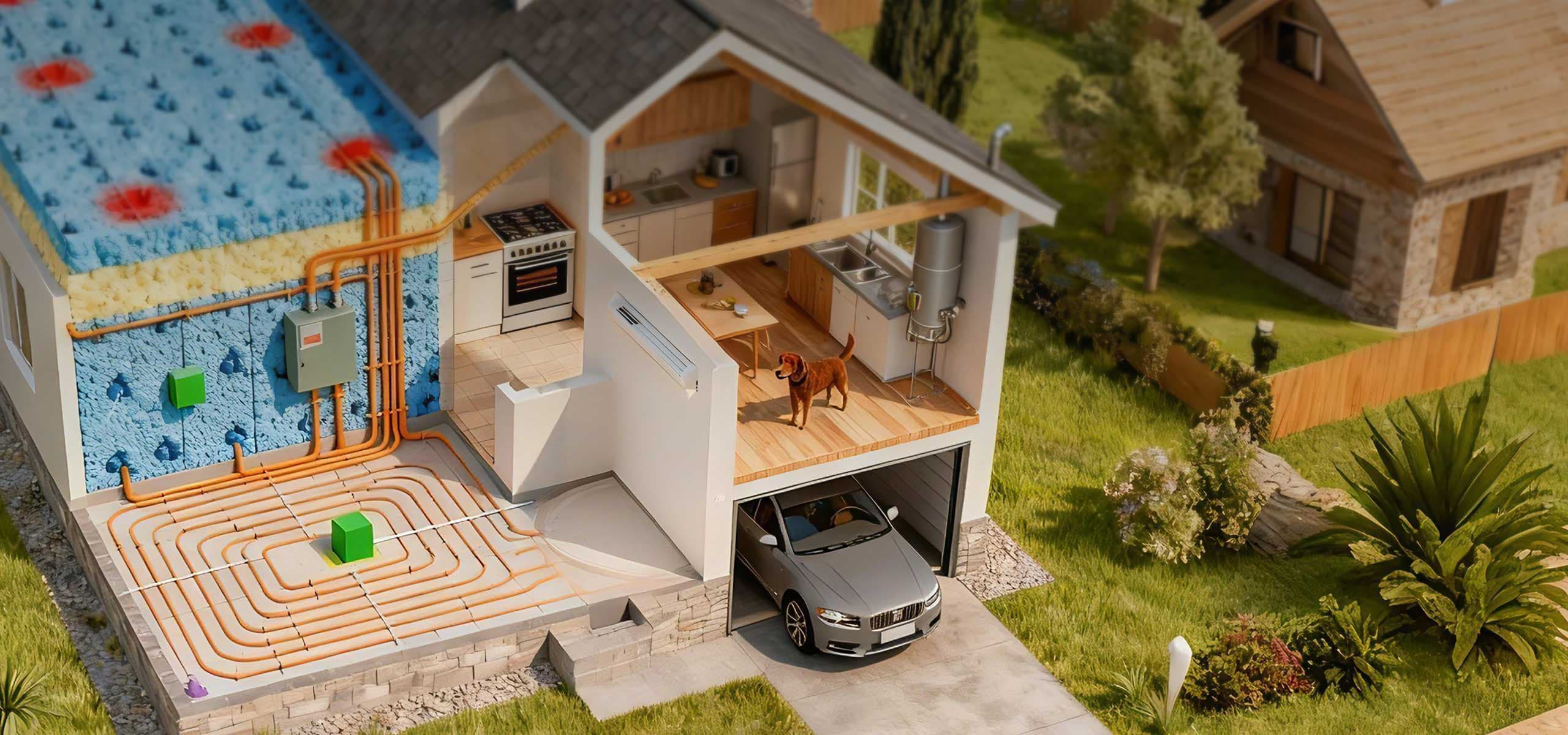

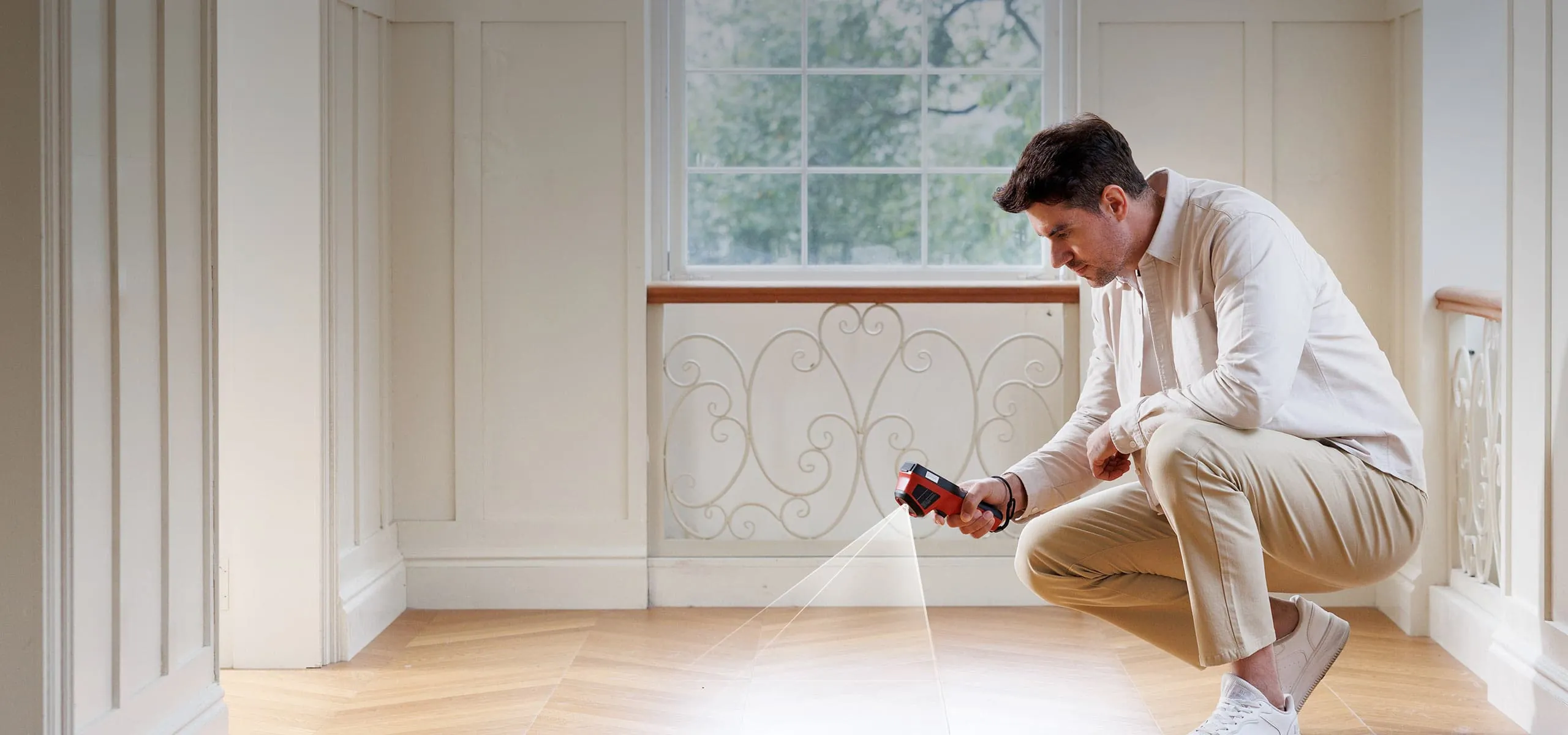

 50°×50° Wide FOV The 50°×50° wide-angle view allows you to quickly scan the entire floor, detecting underfloor heating with unparalleled efficiency. |
 25 Hz Smooth Imaging With 25Hz smooth imaging technology, moving objects can be accurately captured, bidding farewell to the era of detecting one point every few seconds. |
 Flexible Color Options 5 distinct color palettes are at your fingertips. Highlight critical temperature differences stand out in any condition. |

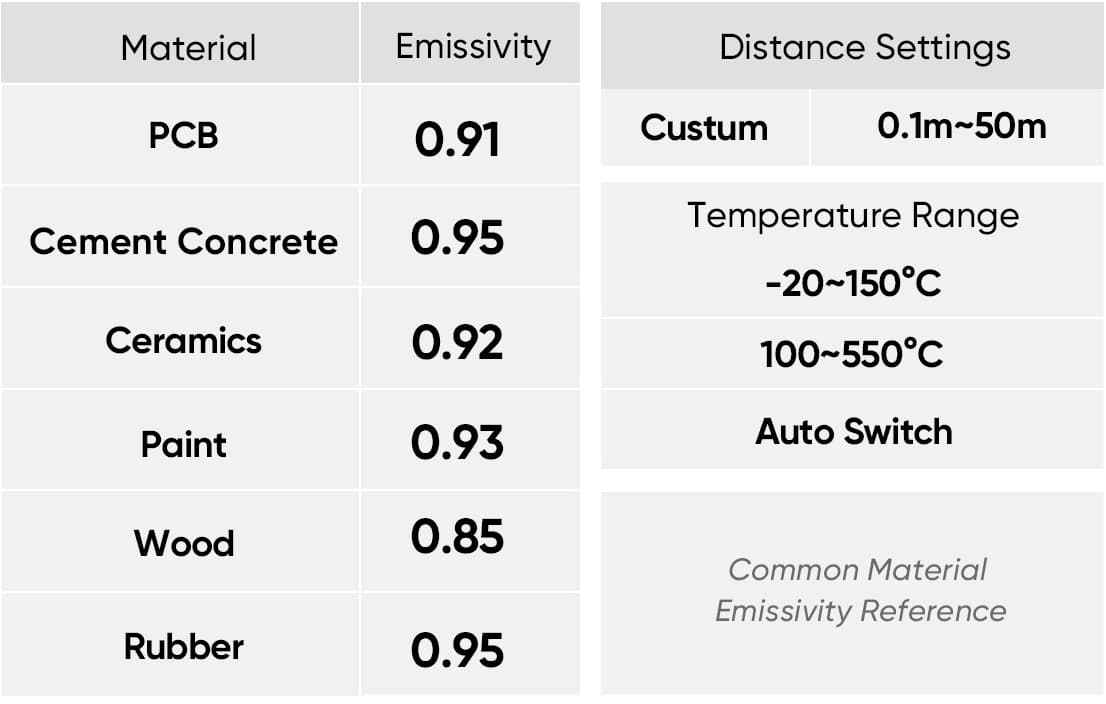

 Customizable Measurements Customize the emissivity, distance, and temperature measurement range for any object. Ensure every reading accurately reflects reality. |

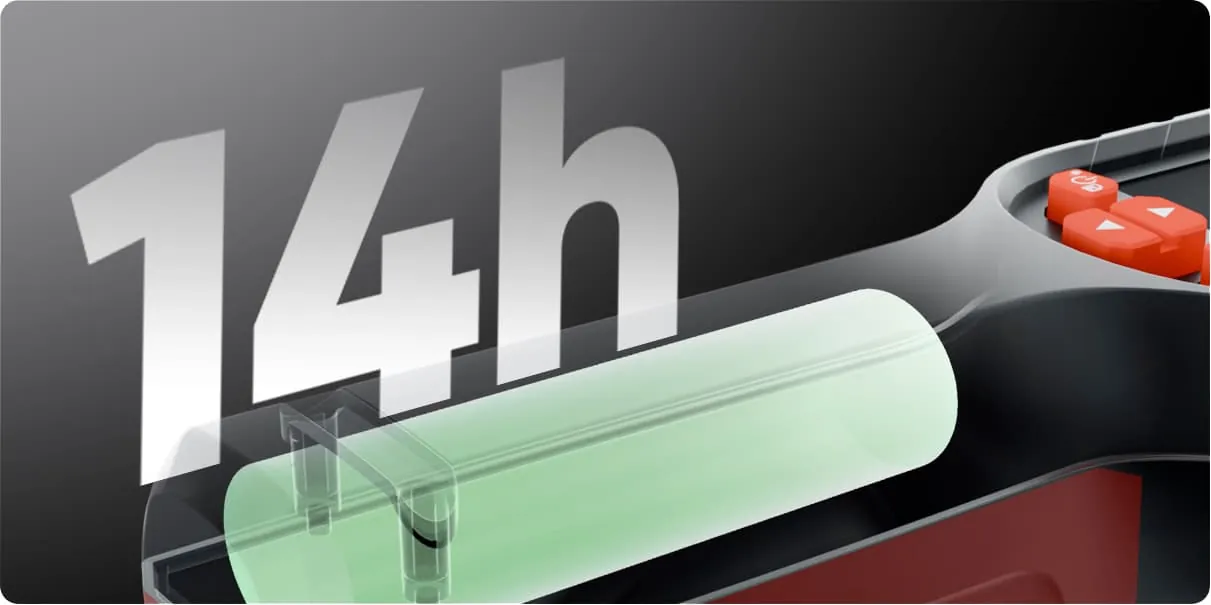

 Long-Lasting Battery 2500 mAh built-in battery, 14-hour rechargeable battery life powers through long inspections, from all-day home checks to extended repair jobs on-site. |

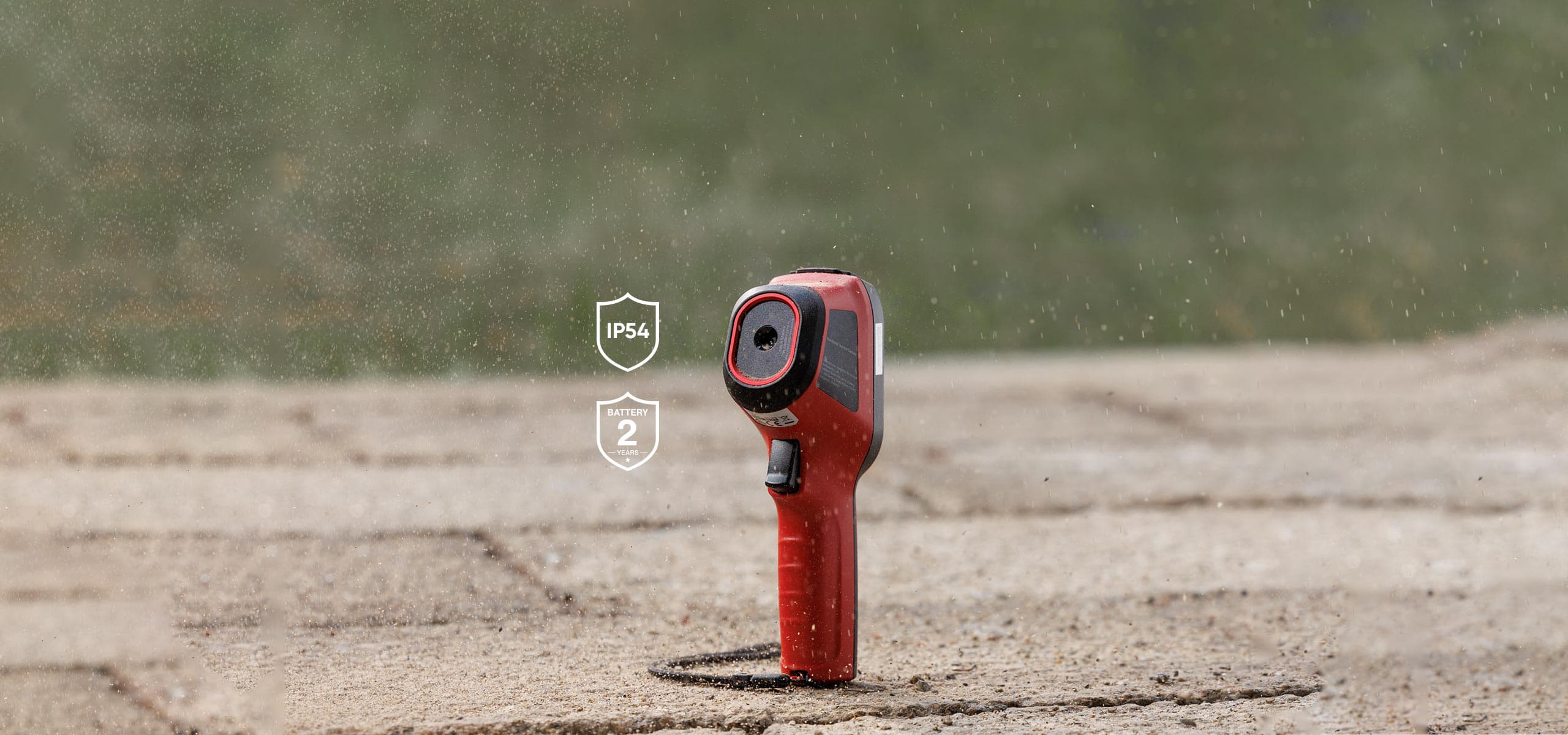

 Rugged and Reliable Built to withstand tough conditions, whether on a rainy yard or in a dusty workshop. |

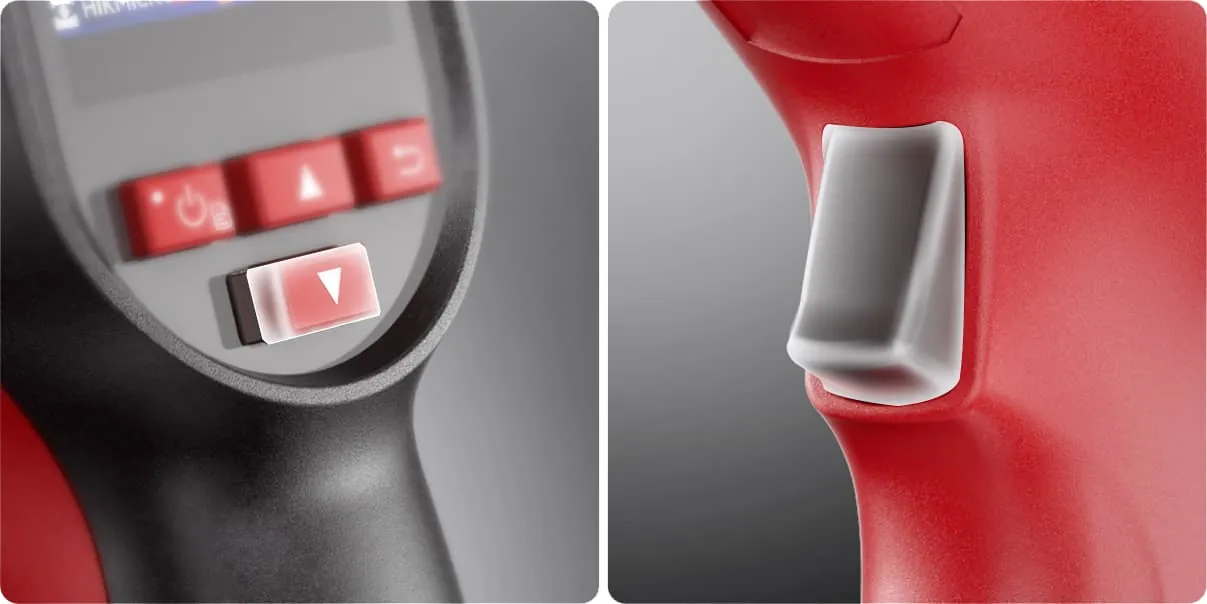

 Lightweight and Portable Ultra-lightweight and compact, it goes wherever you do. The anti-slip handle and secure wrist strap keep it safe and ready in hand, anywhere. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Temperature Range (°C) | -20°C to 150°C / 100°C to 550°C |
|---|---|
| Temperature Range (°F) | -4°F to 302°F / 212°F to 1022°F |
| IR Resolution | 96 × 96 (9216 Pixels) |

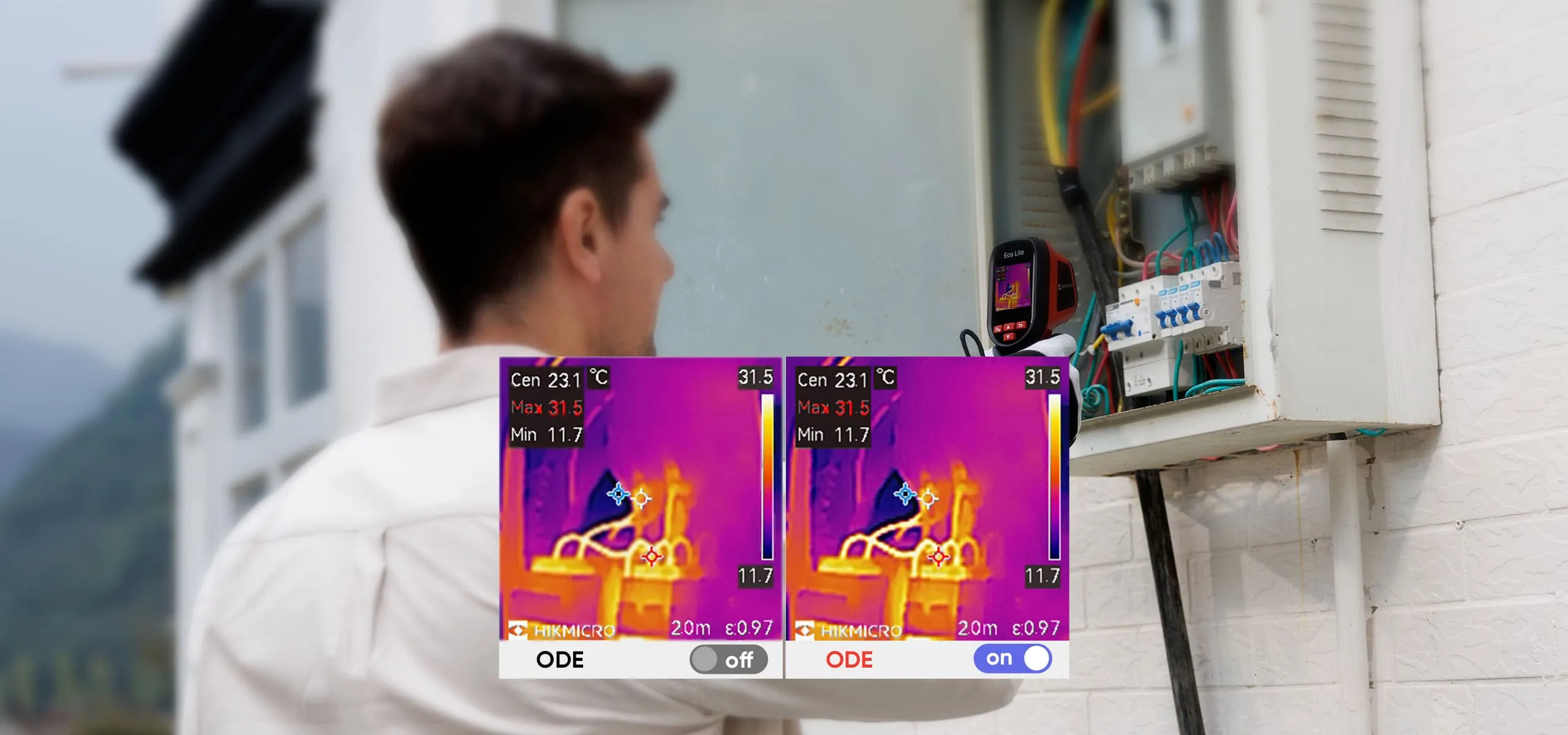

| ODE | Yes |
| Distance to Spot Ratio (D:S) | 15:1 |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1m (0.33 ft) |
| Focus Mode | Focus Free |
| Display | 240 x 320 Resolution, 2.4" LCD Screen |
| Visual Camera | 1600 × 1200 (2 MP) |
| Image Modes | Thermal |
| Screen Brightness | Manual |
| Alarm | More than, Less than |
| Alarm Linkage | Alarm Mode Palettes |
| Level & Span Mode | Auto |
| Storage Media | Built-in 2 Gb NAND FLASH (user available storage space is less than the nominal capacity) |
| Image Storage Capacity | Max. 2600 Images |
| Image File Format | JPEG |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| USB Interface | USB Type-C |
| LED Light | Yes |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Time | 14 Hours (Operating Time) / 3 Hours Fully Charged with Adapter Output:5V 2A (Charging Time) |
| Protection Level | IP54 |
| Drop Test Height | 1m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% Non-condensing |
| Tripod Mounting | UNC 1/4 inch - 20 |
| Power Supply | USB-C (5V/2A) |
| Dimensions | 196 x 117 x 59 mm (7.7 x 4.6 x 2.3 inch) |
