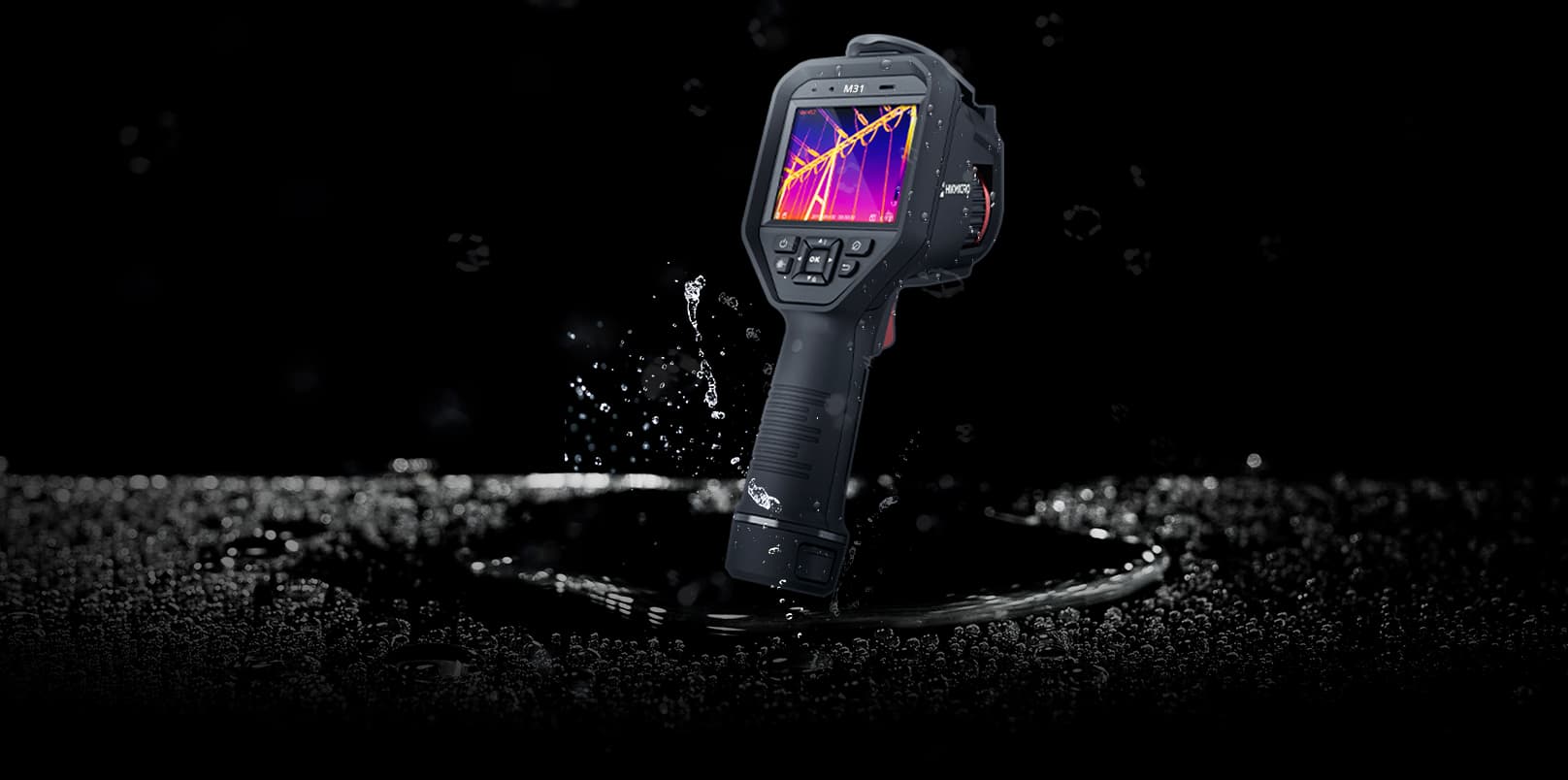

Hikmicro -20°C to 650°C Handheld Thermal Imaging Camera with Manual Focus, M20

HIKMICRO M20 handheld thermography camera is specially designed for professional inspections. It’s equipped with a 256 × 192 resolution thermal detector and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20 quickly identifies potential faults, quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.

Features:

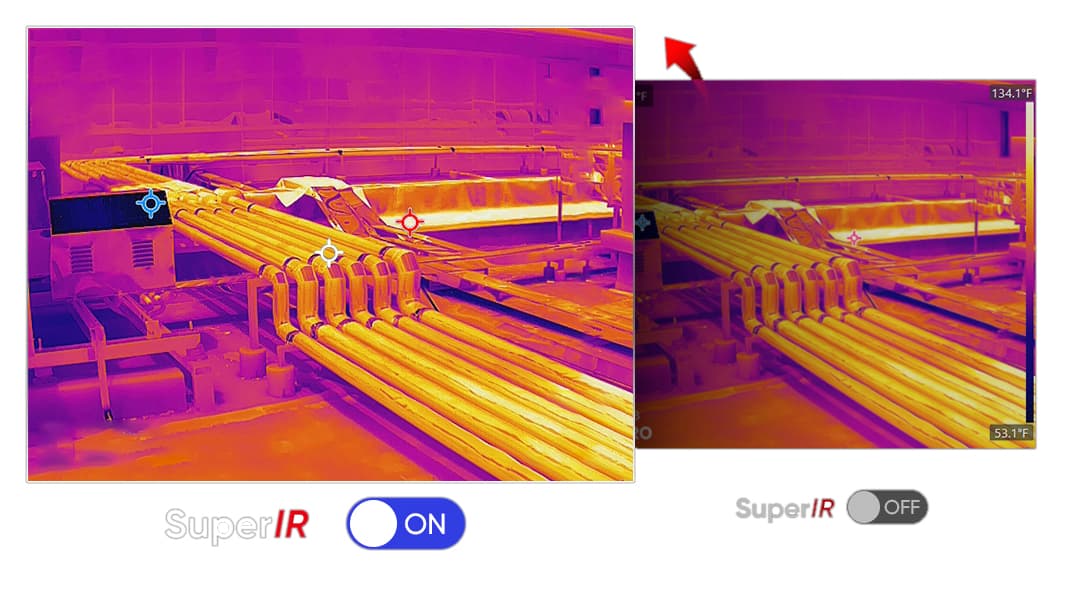

• High sensitivity thermal module with 256 × 192 resolution
• Supports multiple palettes
• High quality optical module with 8 MP resolution

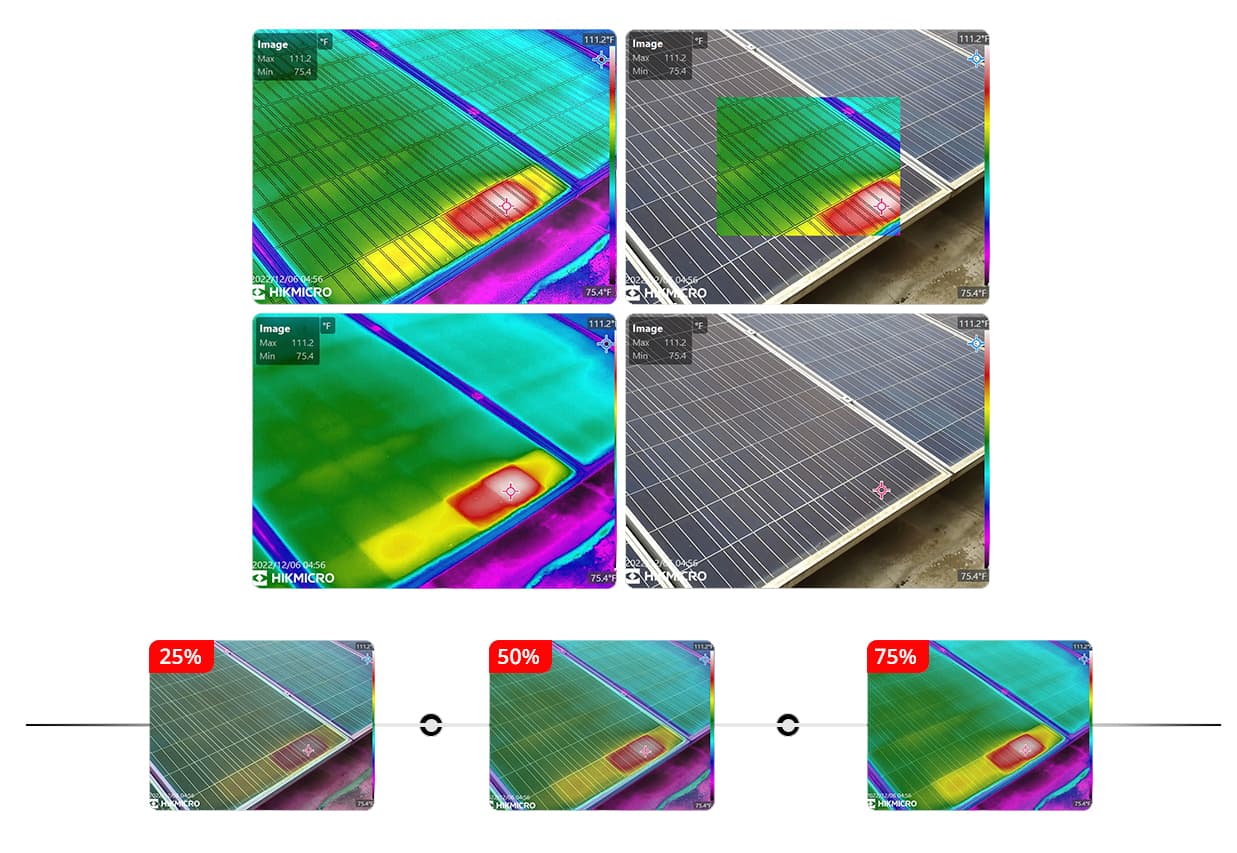

• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: -20 - 650°C
• High temperature measurement accuracy: Max ± 2°C for 0 to 100°C, ± 2% for 100 to 600° C, ± 4% for 600 to 650°C at the ambient temp. 15 to 35°C

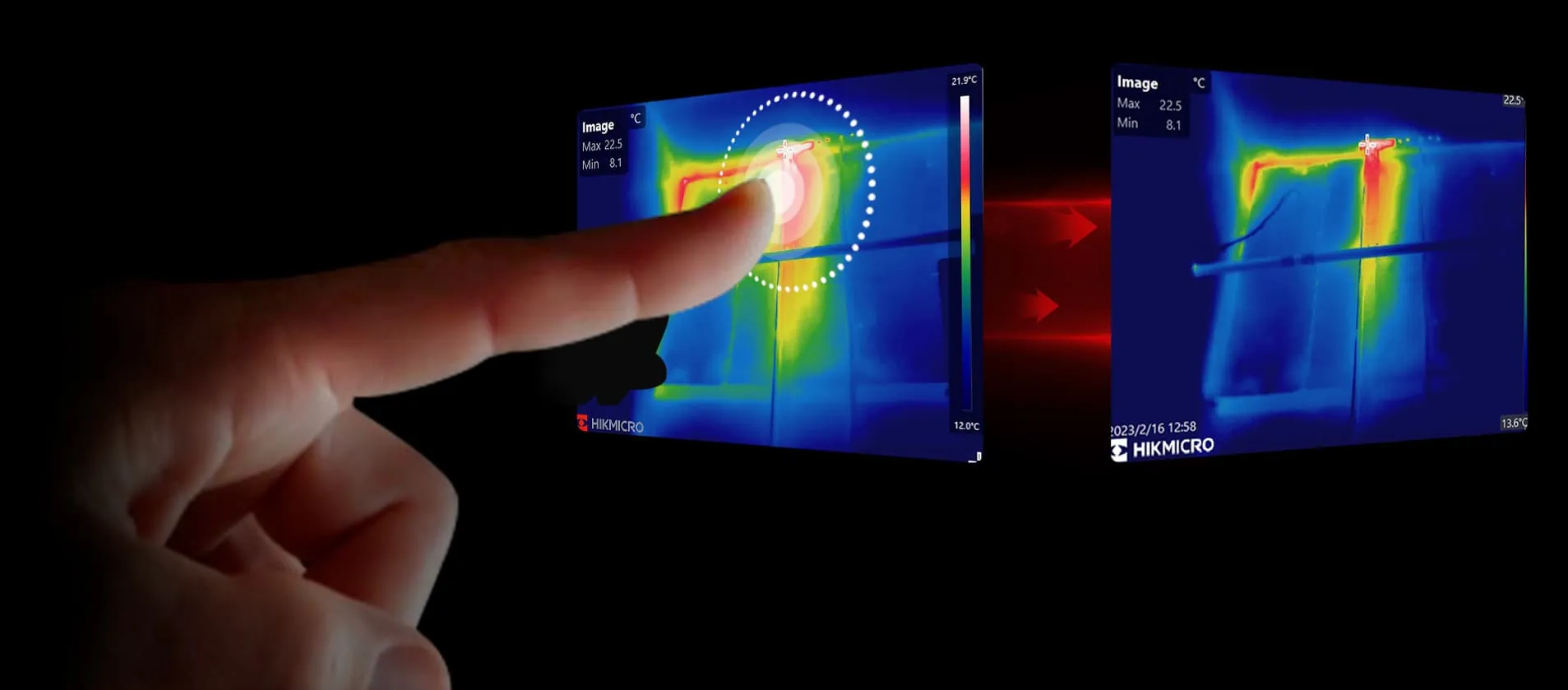

• 640 x 480 resolution 3.5'' LCD touch display

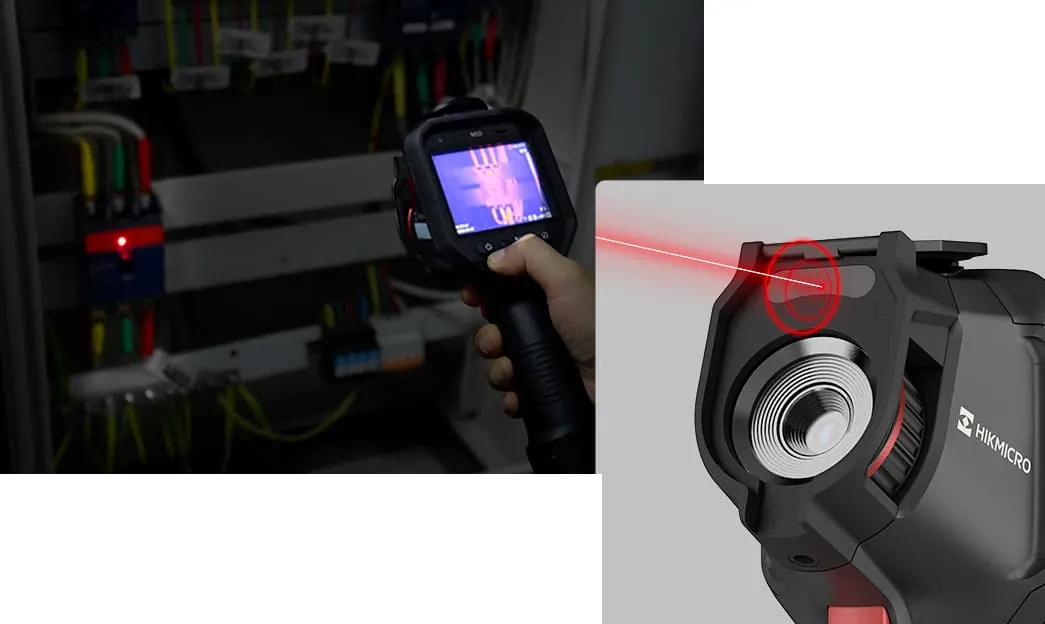

• Long-distance laser light supplement for thermography targets
• LED light supplement makes the device a torch in required scenarios
• 1.0x to 8.0x continuous digital zoom
• Supports remote album access, download and quick report with APP.
• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red, Condensation Alarm
• Focus Mode Palette: Above / Below / Interval
• Color Alarm: Above / Below / Interval / Insulation

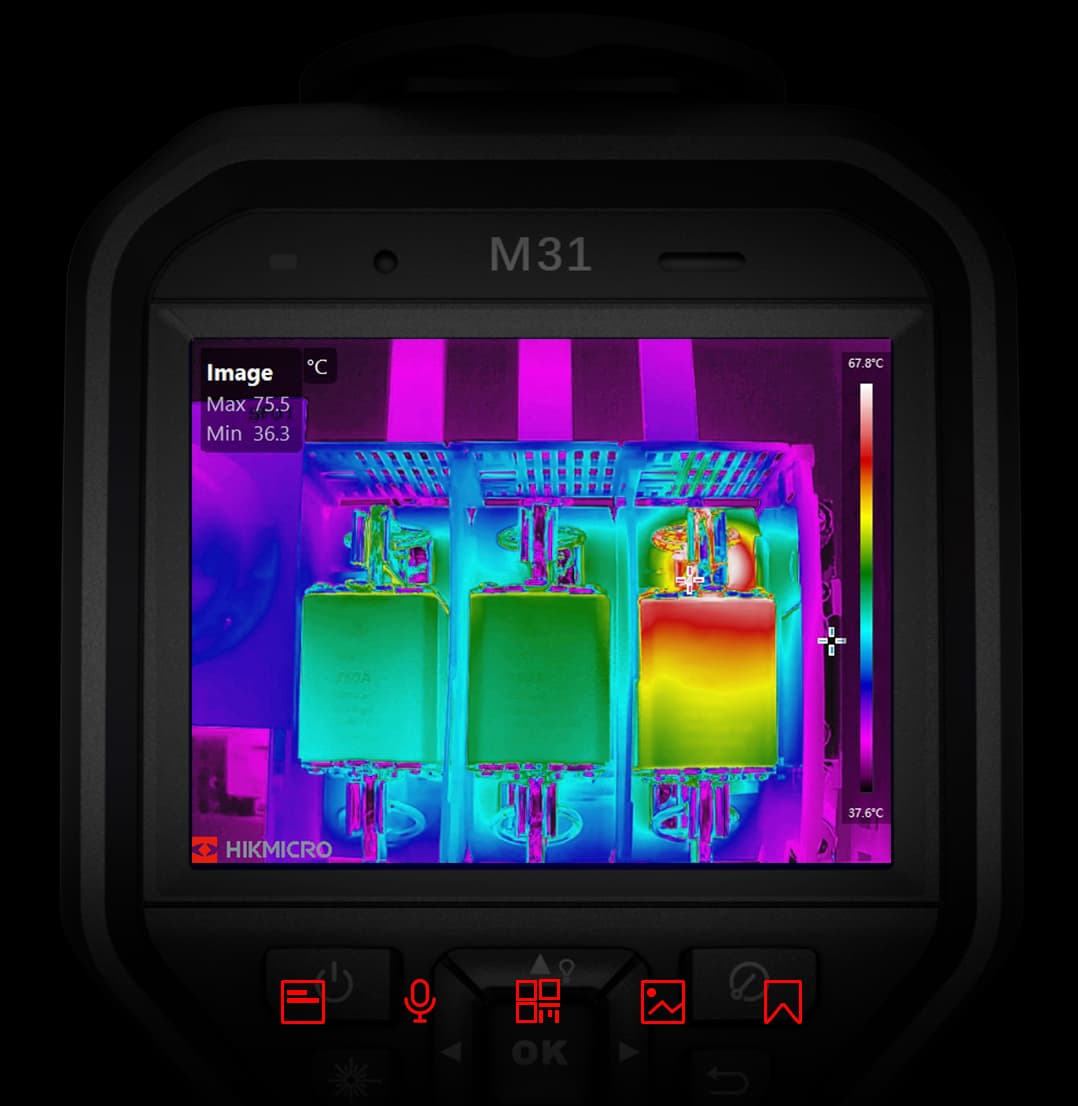

• Image Modes: Thermal / Visual / Fusion / PIP / Blending
• Measurement Tools: Center Spot, Hot Spot, Cold Spot (User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles)
• Video Storage Capacity: MP4 video max. 160h; Radiometric video max. 50h

Accuracy:

• Max ± 2°C for 0 to 100°C
• ± 2% for 100 to 600°C
• ± 4% for 600 to 650°C at the ambient temp. 15 to 35°C

Annotations:

• Voice note: Max. 60 seconds
• Text note: Max. 200 characters
• QR Code note
• Picture note
• Tag note
• Sketch

Applications:

• Existing Connection Issues
• Freezer Room
• Insulation

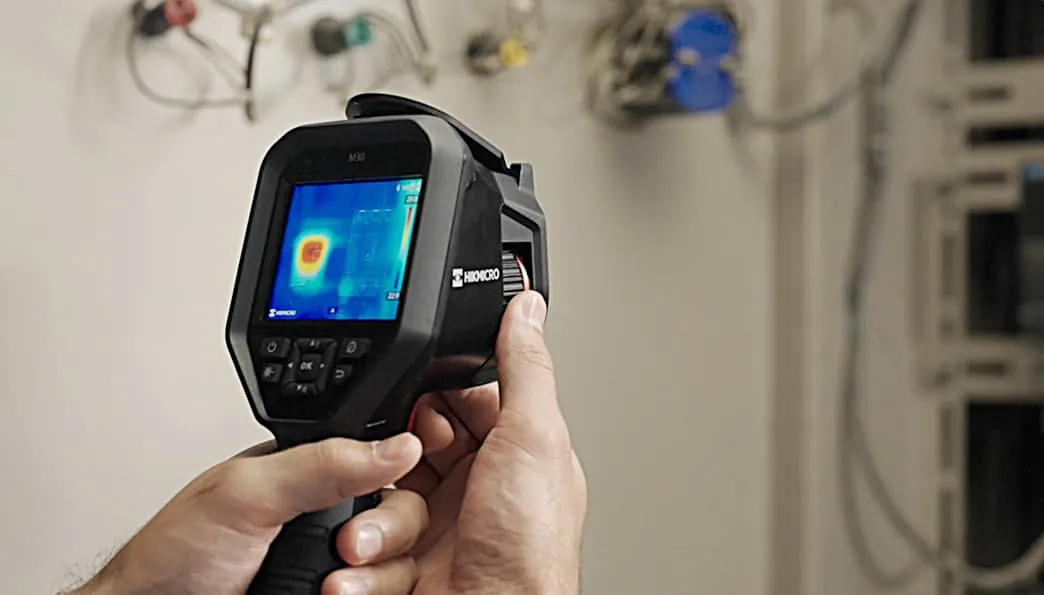

• Electrical Box
• Car
• In Floor Heating
• Electrical Cabinet
• Solar Panel

Package Content:

• 1x Thermal Imaging Camera
• 1x Calibration Certificate
• 1x Printed Quick Start Guide
• 1x Hard Carrying Case

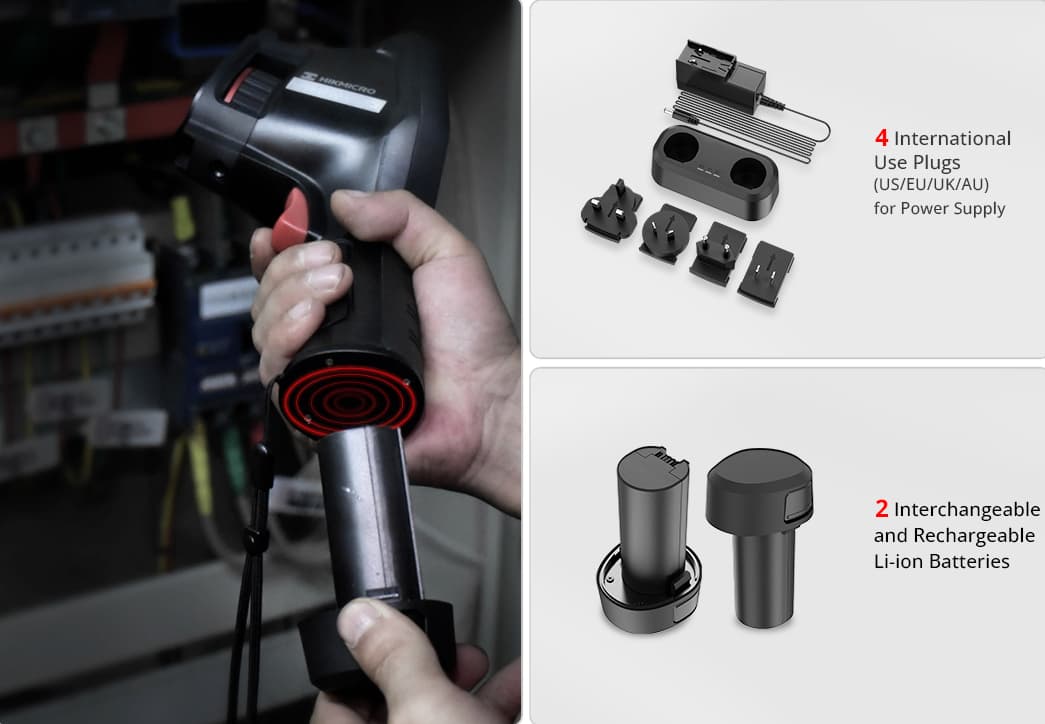

• 1x Charging Base with Adapter and Plugs (US/EU/UK/AU)
• 2x Interchangeable Battery
• 1x Wrist Strap
• 1x 64GB Micro SD card
• 1x 2-in-l USB-C to USB-CA Cable
