Hikmicro -20°C to 650°C Thermal Imaging Camera for Android, Mini3
Roll over the image to zoom in
Key Features
- Product Type: Thermal Imaging Camera
- Weight: 45 g
- Temperature Range (°C): -20°C to 150°C / 100°C to 650°C
- Temperature Range (°F): -4°F to 302°F / 212°F to 1202°F
- IR Resolution: 384 x 288 Pixel (110592 Pixels)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,14,250 (Incl. of all taxes)
₹96,822 + ₹17,428 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Hikmicro CatalogueNot available
Download Hikmicro CatalogueNot available
Highlights
The Smartphone Module is designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with functional thermal App for smartphone, the Smartphone Module enables you to get the thermal imaging on your phone.
Features:
- Make your phone smarter with HIKMICRO thermal camera
- Image Frequency: 25 Hz/50 Hz (Need 8 GB RAM on the mobile devices or more if you want to enable 50 Hz)
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
- Accuracy: Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement Tools: Center Spot, Hot Spot, Cold Spot. User-definable: 3 spots, and 3 rectangles.
Premium Performance, Small Package - Explore your world in thermal with high accuracy

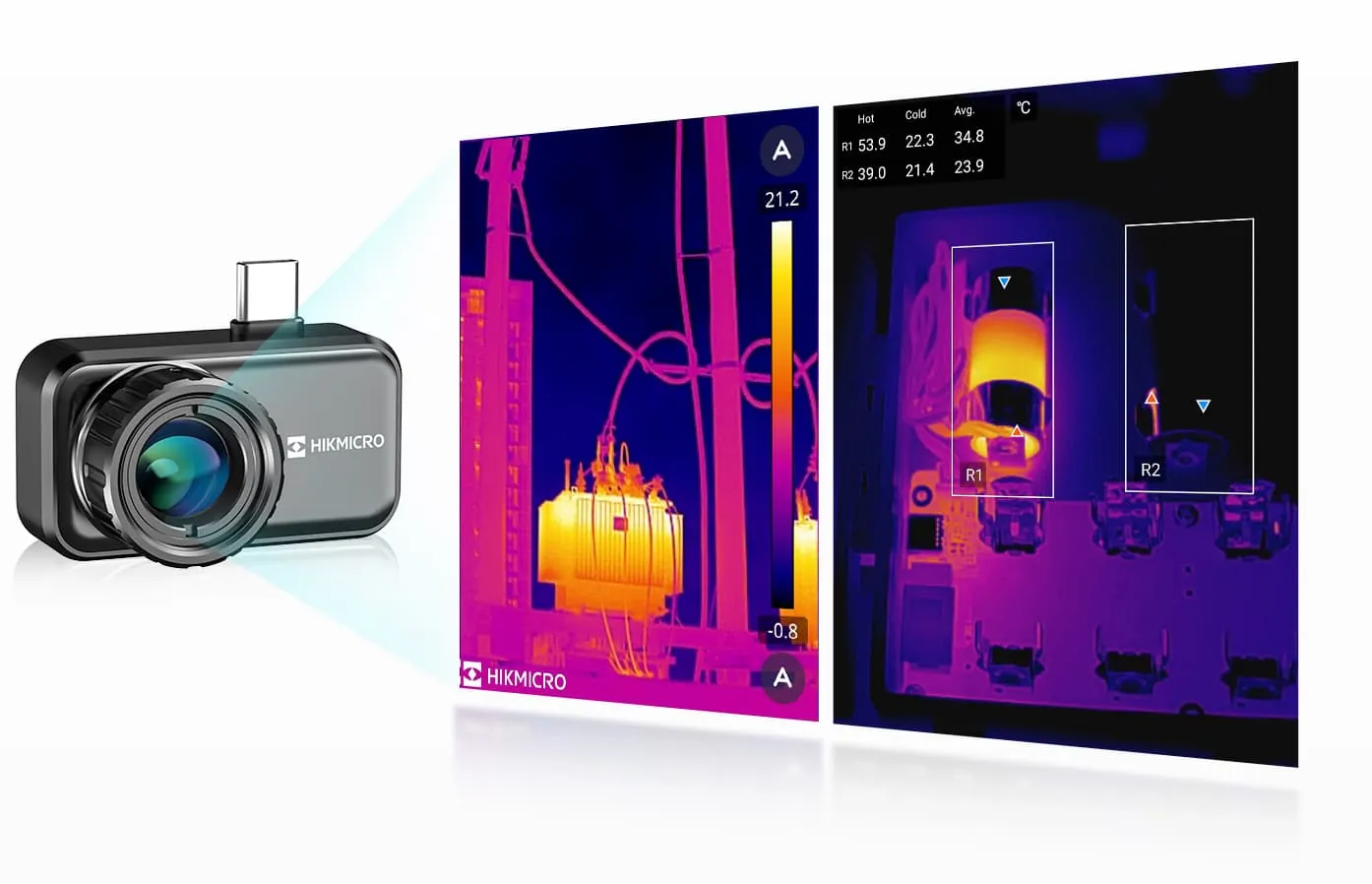

 Super Clear Thermal Image Mini3 features a highly sensitive (NETD < 30 mK) VOx detector with a resolution of up to 384 x 288 (110,592 pixels), along with optimized image enhancement algorithms to provide clear thermal images. |

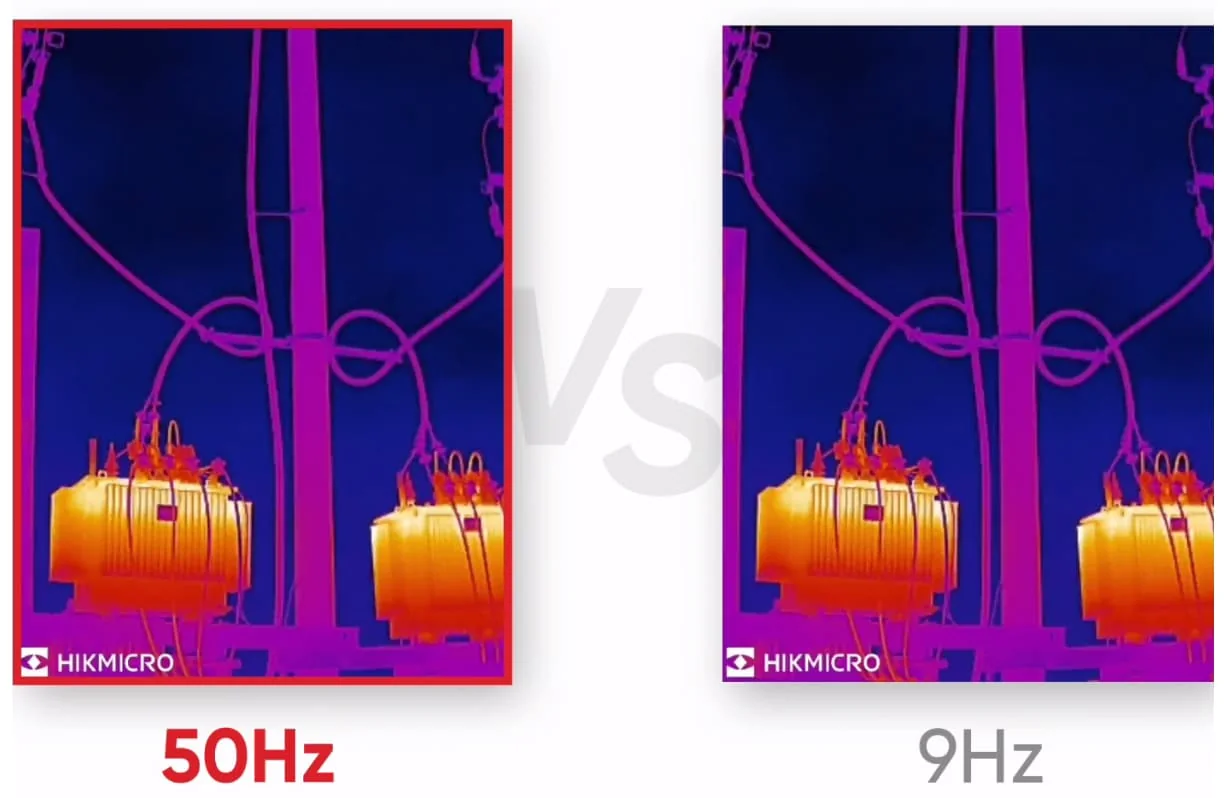

 50 Hz Smooth Video 50 Hz image refresh provides a smooth image and video while panning across scenes or viewing moving items. (Need 8 GB RAM on the mobile devices or more if you want to enable 50Hz) |

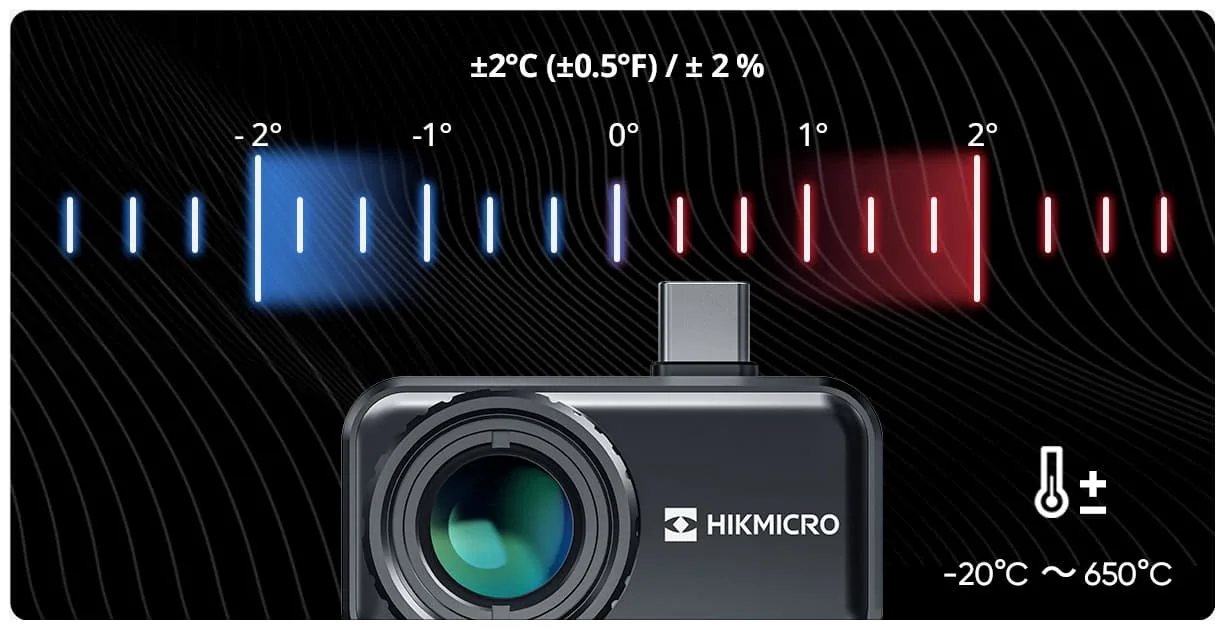

 Accurate Temperature Measurements Mini3 accurately measures temperatures from -20°C (-4°F) to 650°C (1202°F), with a temperature accuracy up to ±2°C (±0.5°F) / ± 2%. |
Ready for any job or just for fun - Small, easy to carry, and ready 24/7 for almost anything

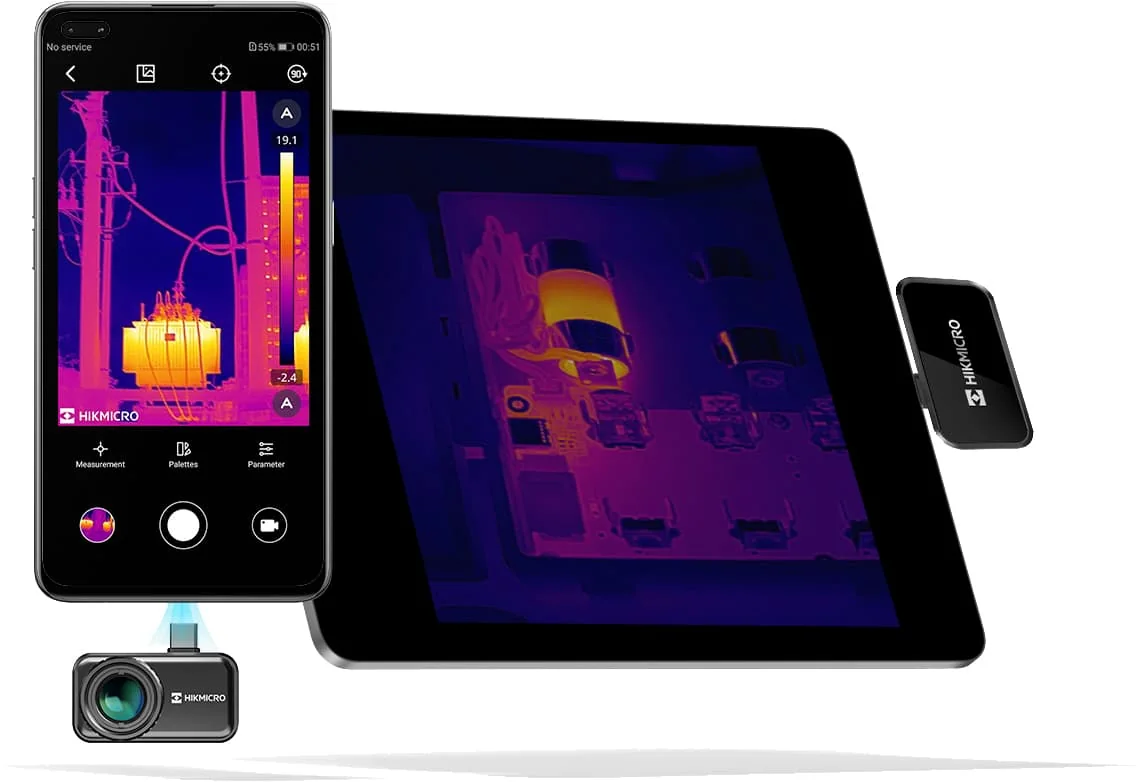

 Plug and Play Instantly attaches to your Android smartphone or tablet and is ready to go in seconds. |
 Battery-free Mini3 is battery free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are. |

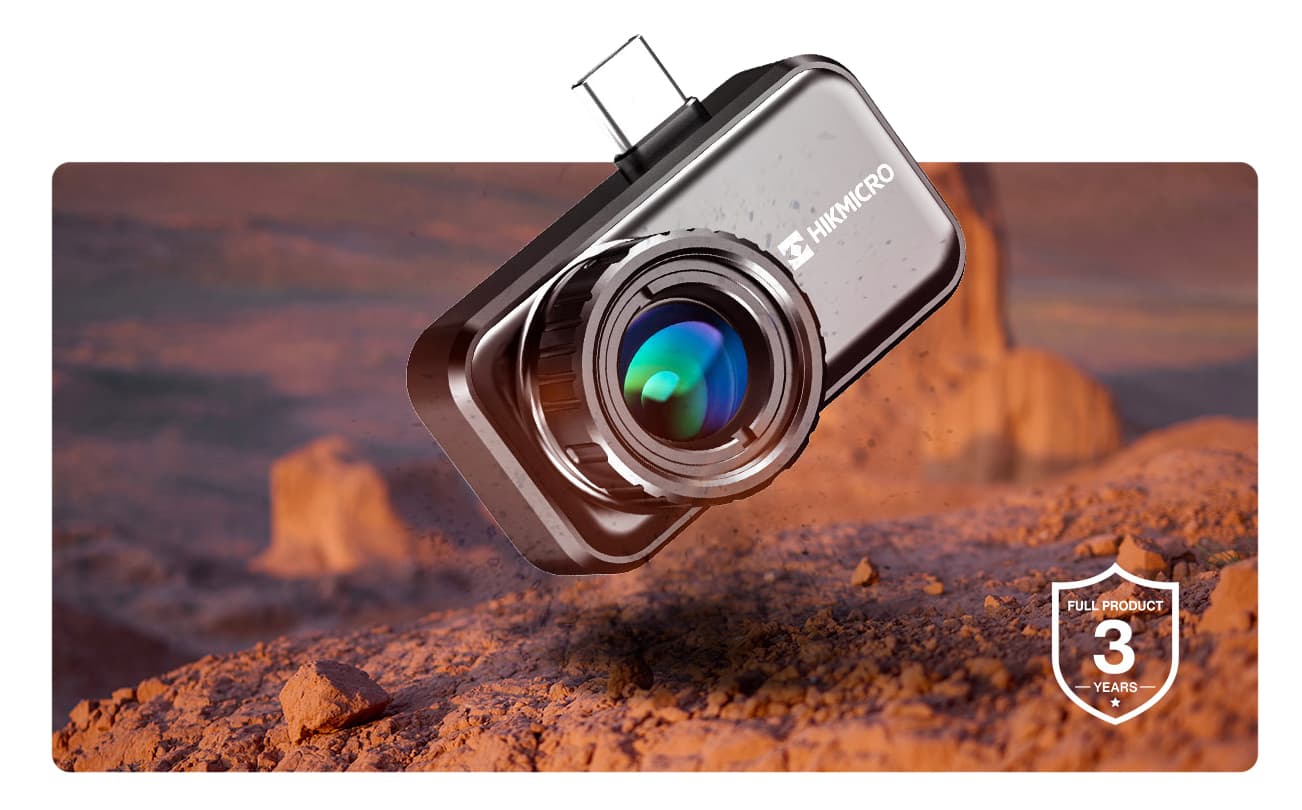

 Durable and Rugged Designed for where you work, live or relax, the Mini3 features IP40-rated aluminum alloy housings, passes strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty. |
Mini3 - Connecting with you

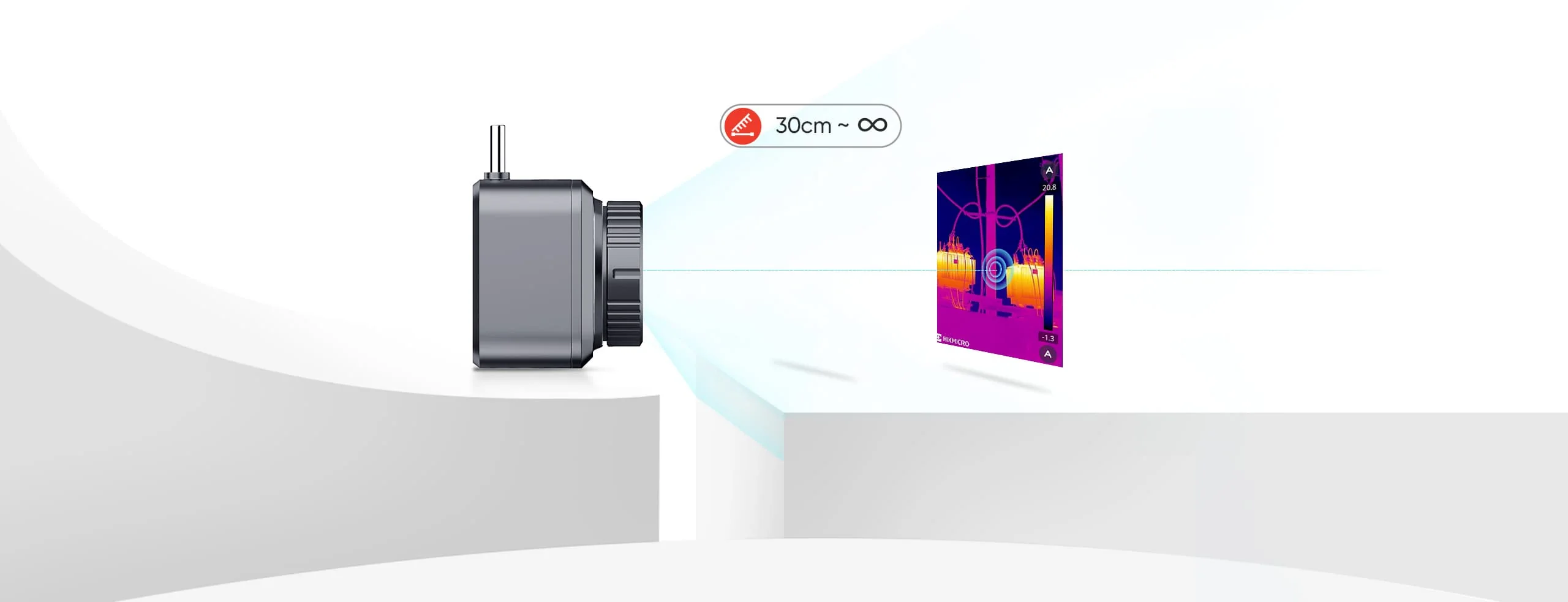

 Manual Focus Mini3 is equipped with a manual focus lens for inspection at various distances from 30 cm (0.98 ft) to infinity. Viewing small objects like electronic components, or viewing more distant objects like electrical or mechanical equipment that require a safe distance. |

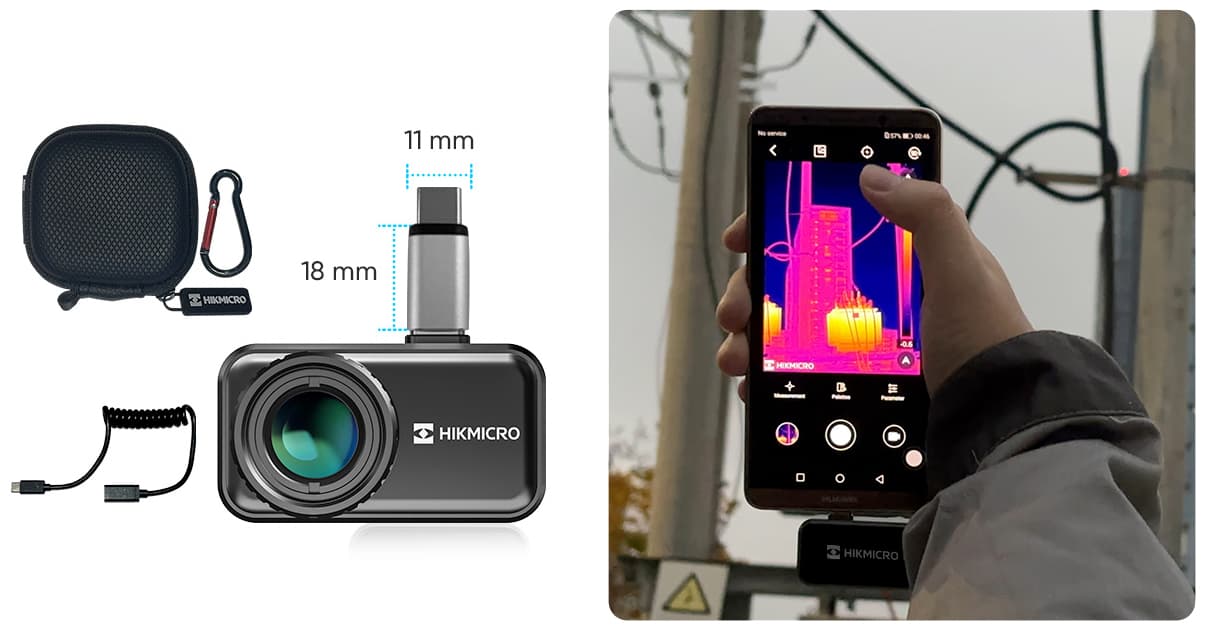

 Essential Accessories Included A 40 cm (15.75 in) extending cord connects between your device and the camera allowing remote viewing, and inspection through narrow, confined openings, or difficult-to-reach places. Also included is an 18 mm extended connector to accommodate smartphones or tablets in a protective case. A storage case is provided for storing your camera. |

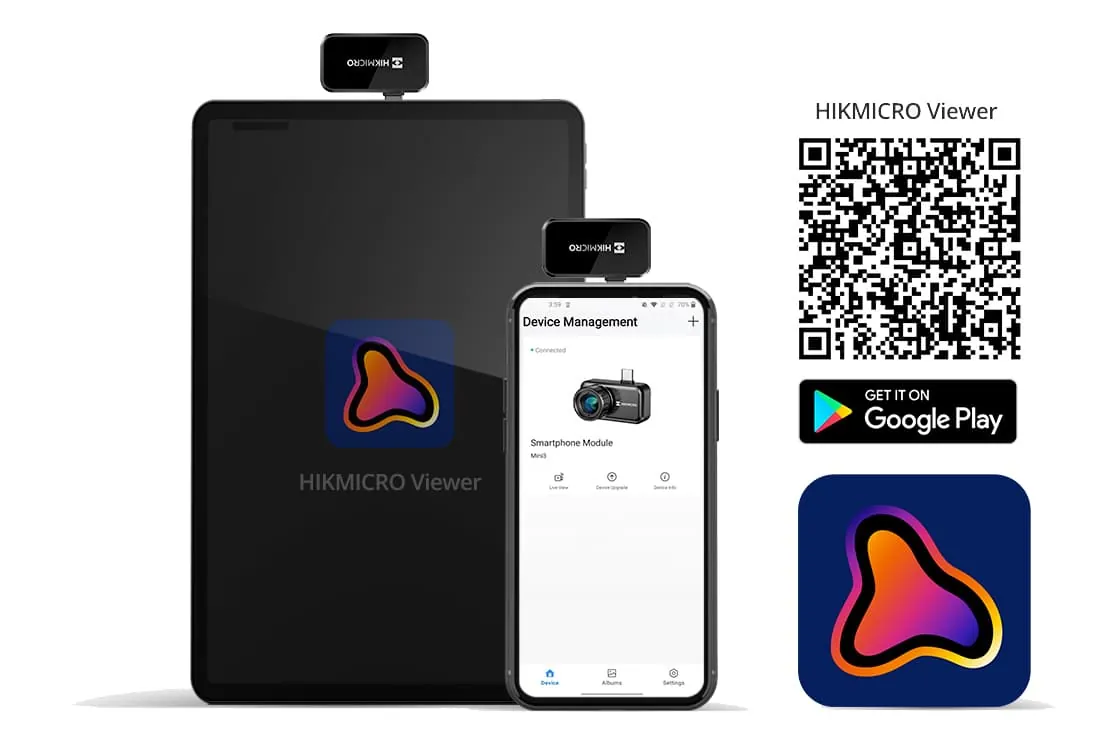

 Mini Series APP for smartphone or tablet Mini3 is compatible with our free HIKMICRO Viewer for smartphones providing a user-friendly user interface and the link to operating the camera. |

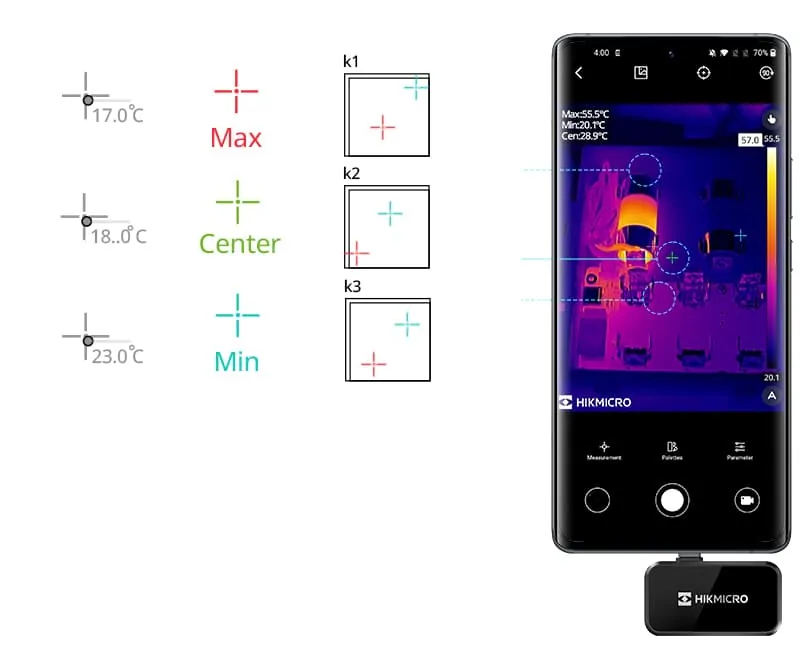

 Quick Temperature Measurement Full screen measurement: Center Spot, Hot Spot, Cold Spot, 3 Custom Spots and 3 Areas. |

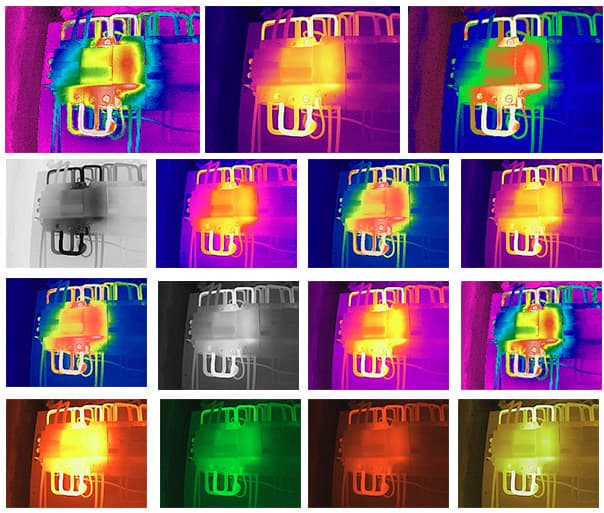

 15 Different Color Palettes Find invisible problems more easily |

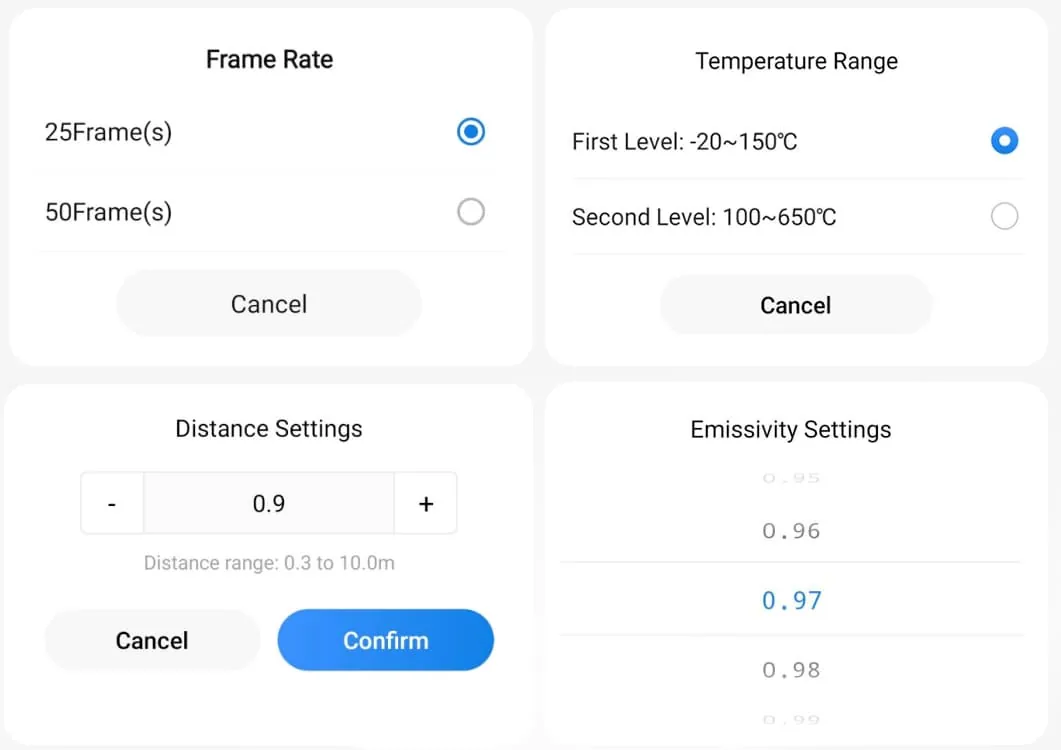

 Multiple Professional Settings Providing professional settings like emissivity/distance/range of your thermal camera allows you to get the best thermal imaging images and temperature readings of different surfaces. |

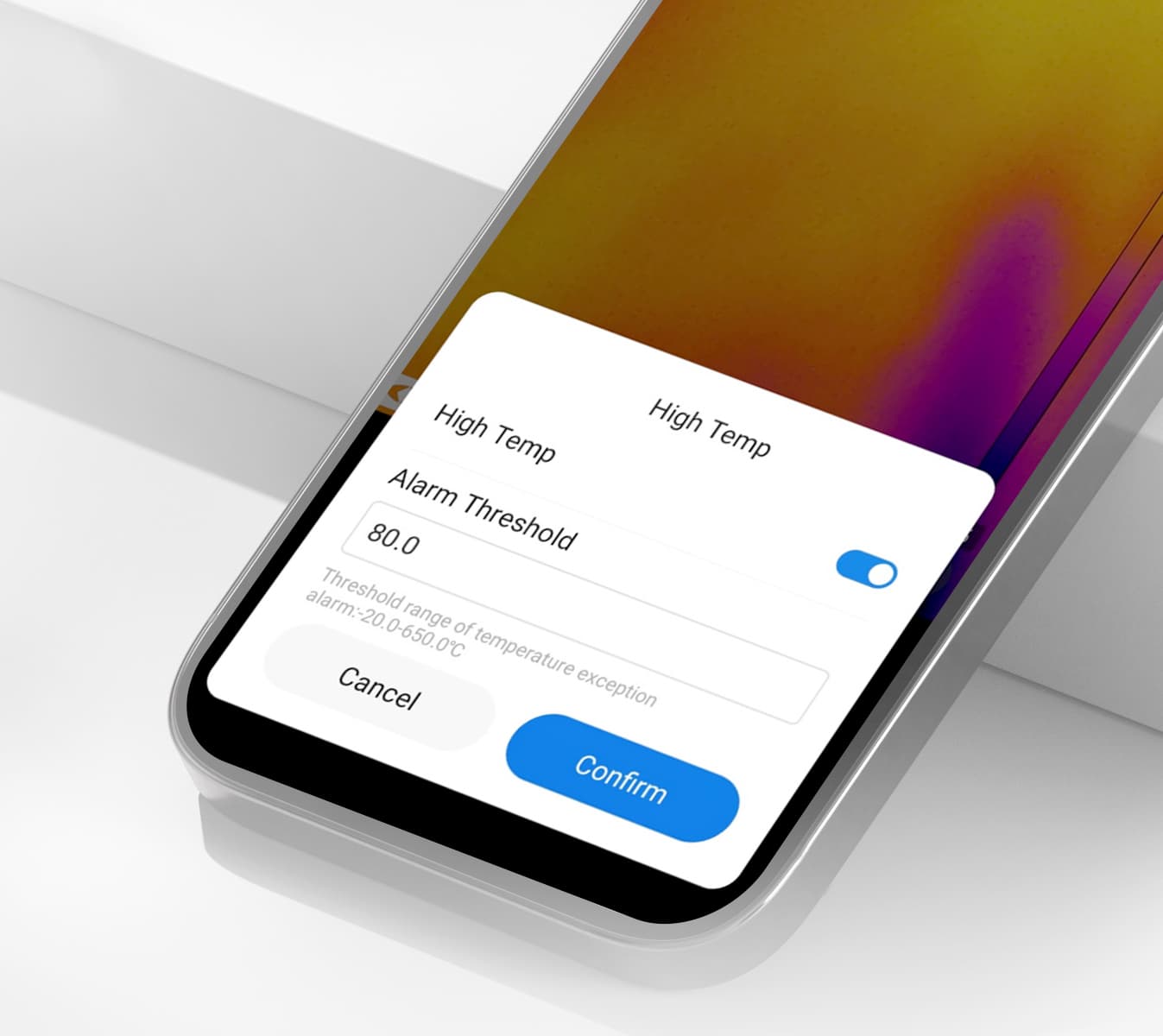

 High Temperature Alarm Give the operator audio and visual alerts to high temperatures. Instant notification when the temperature exceeds the preset alarm level. |
Package Content:
- 1x Mini Thermal Imaging Camera
- 1x Protective Case
- 1x 40cm Extension Rod
- 1x USB-C to USB-C Extension Adapter
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Temperature Range (°C) | -20°C to 150°C / 100°C to 650°C |
|---|---|
| Temperature Range (°F) | -4°F to 302°F / 212°F to 1202°F |
| IR Resolution | 384 x 288 Pixel (110592 Pixels) |
| NETD | <35 mK (@ 25°C, F#=1.0) |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14μm |
| Focal Length | 10 mm |
| F-number | F1.0 |
| Field of View (FOV) | 26° x 19° |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Manual Focus |
| Image Modes | Thermal |
| Level & Span Mode | Auto/Manual |
| Interface | USB-C |
| Power Consumption | 550mW |
| Protection Level | IP40 |
| Drop Test Height | 1m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Dimensions (mm) | 47.6 x 26 x 26.59 mm |
| Dimensions (inch) | 1.87 x 1.02 x 1.05 inch |
