Hikmicro -20°C to 550°C Handheld Thermal Imaging Camera with 0.3MP Visual Camera, ECO V
Roll over the image to zoom in
Key Features
- Product Type: Thermal Imaging Camera
- Weight: 290 g
- Temperature Range (°C): -20°C to 150°C / 100°C to 550°C
- Temperature Range (°F): -4°F to 302°F / 212°F to 1022°F
- IR Resolution: 96 × 96 (9216 Pixels)
- Field of View (FOV): 50° × 50°
- Focus Mode: Focus Free
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹27,803 (Incl. of all taxes)
₹23,562 + ₹4,241 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Hikmicro CatalogueNot available
Download Hikmicro CatalogueNot available
Highlights
Based on advanced thermal imaging technology, this handheld thermal camera is specifically engineered for temperature measurement applications. It supports multiple scene modes, with select models featuring SuperScene intelligent detection that automatically recognizes scenarios and optimizes image output. Equipped with SuperIR, it delivers clearer and more accurate thermal imaging, enabling users to perform efficient and reliable on-site troubleshooting.
Features:
- Support SuperIR
- Support Multiple Scene modes, Some support SuperScene intelligent detection
- Laser pointer
- Thermal/Visual/Fusion
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Blue Yellow
- SuperScene Mode: Custom, Water Leak, Insulation, Floor Heating, Electrical Faults, Solar Panel
- Smart SuperScene Alarm: Water Leak, Insulation, Floor Heating
- Temperature Measurement Mode: Thermometer mode, Measurements presets (center spot, Max spot, Min spot, off)
Accuracy:
- Max (±2°C/3.6°F, ±2%)
- At ambient temperature 25°C (77°F)
- Object temperature above 0°C (32°F)
Package Content:
- 1x Thermal Imaging Camera
- 1x Wrist Strap
- 1x USB-A to USB Type-C Cable
- 1x Printed Quick Start Guide
- 1x Calibration Certificate

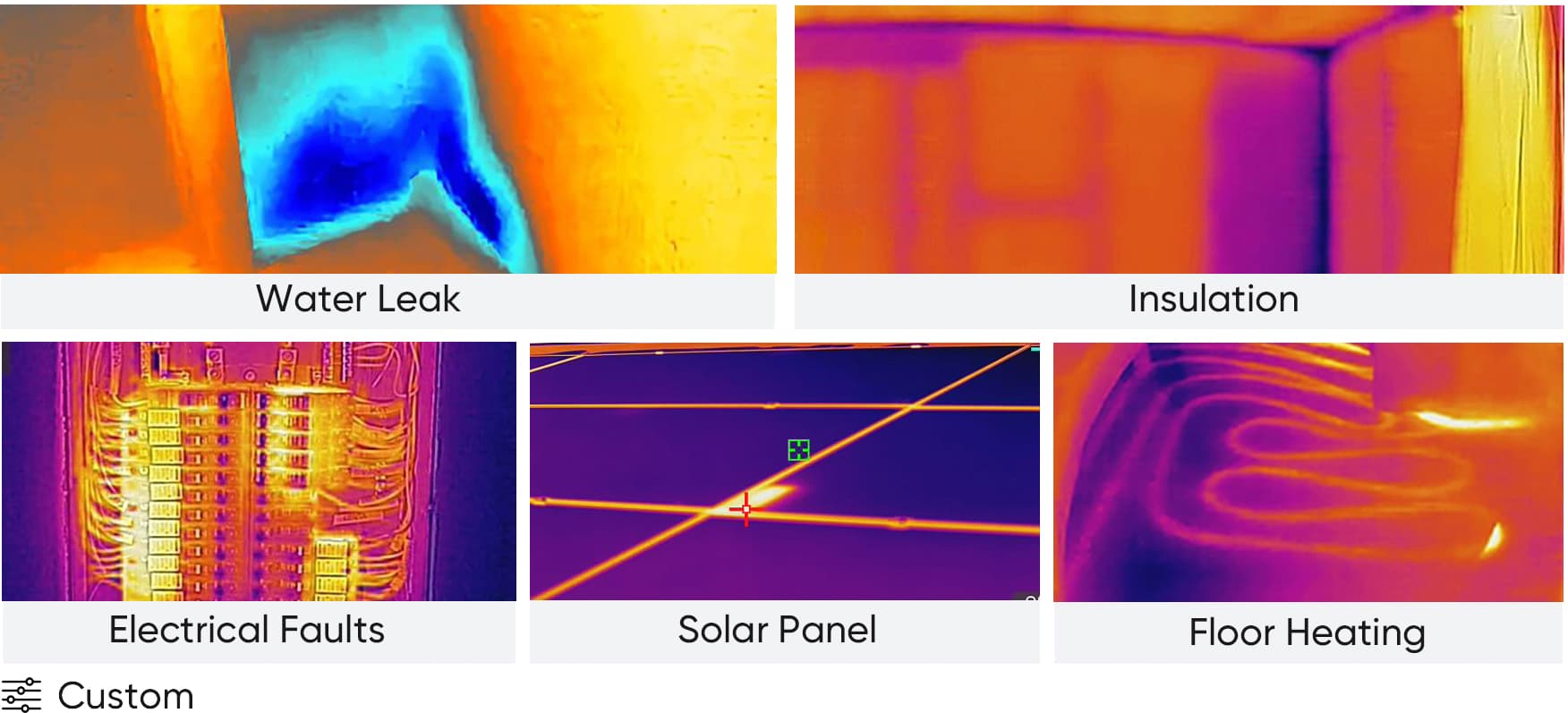

 New SuperScene Mode Focus on Findings, Not Setup. New automatic scene profiles handle the tech. You handle the inspection. Simplify work. |

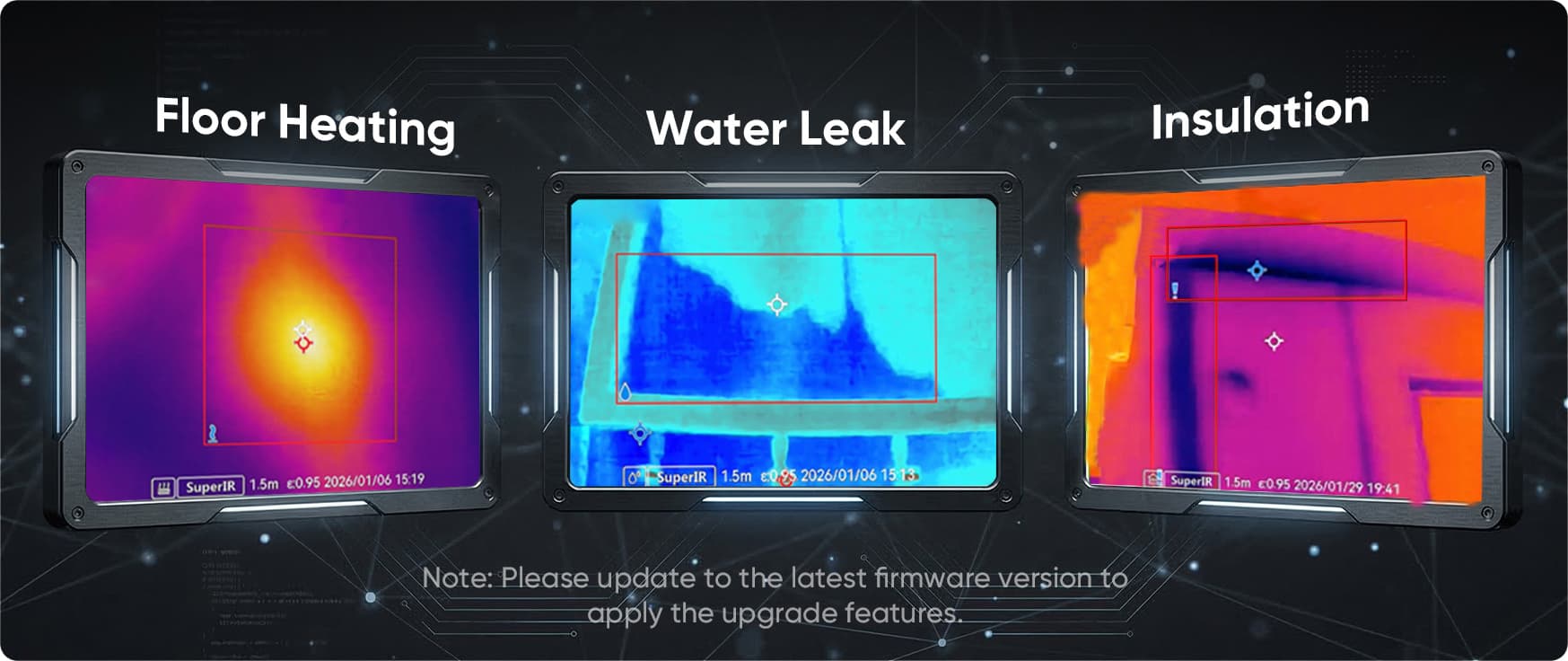

 Smart SuperScene: Think Like an Expert AI analyzes thermal images and flags anomalies on screen — water leaks, insulation gaps, floor heating issues. Raw data becomes clear, actionable information. The result: What once required specialist expertise now takes seconds. Faster. Consistent. Confident. |

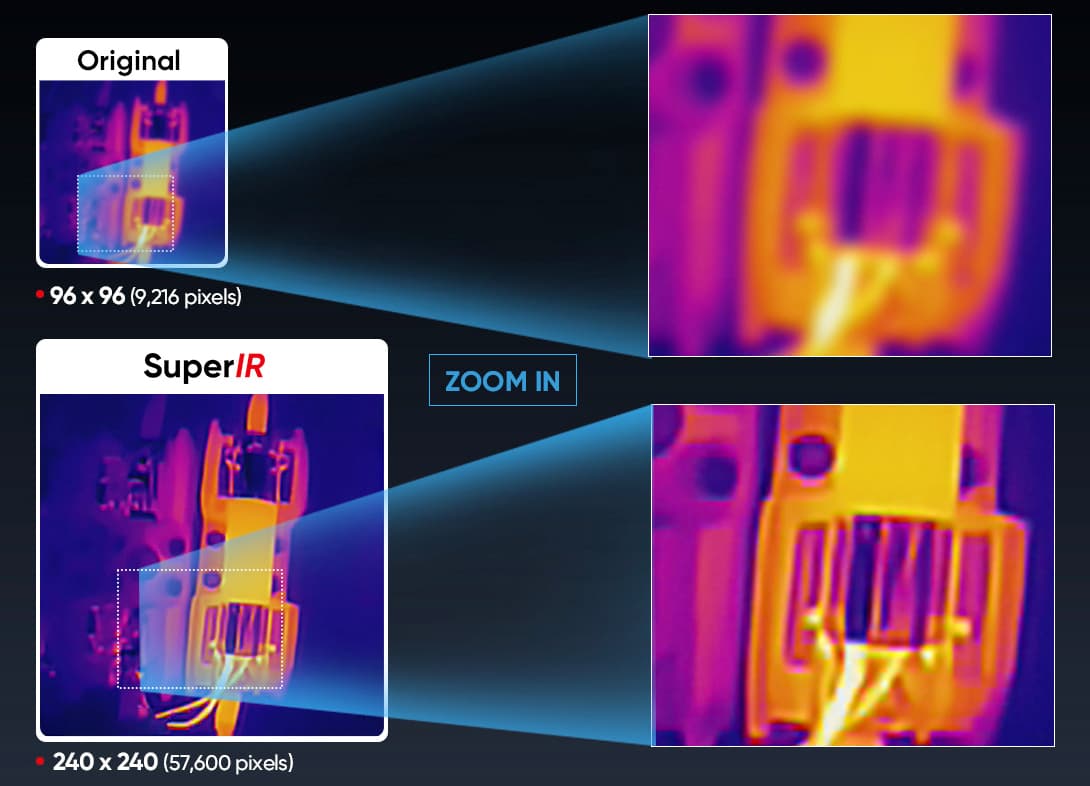

 Enhanced Thermal Clarity with SuperIR Powered by HIKMICRO SuperIR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos. |
 Dual-camera Thermal Imager (Eco-V Only) Built-in IR camera and visible camera, allow you to switch 3 image modes (Thermal, Visual, and Fusion). "Fusion" blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity. |
 50° Wide Angle Lens Scan large areas quickly with the 50° wide angle lens to find issues like air infiltration, water leaks, and insulation issues. |

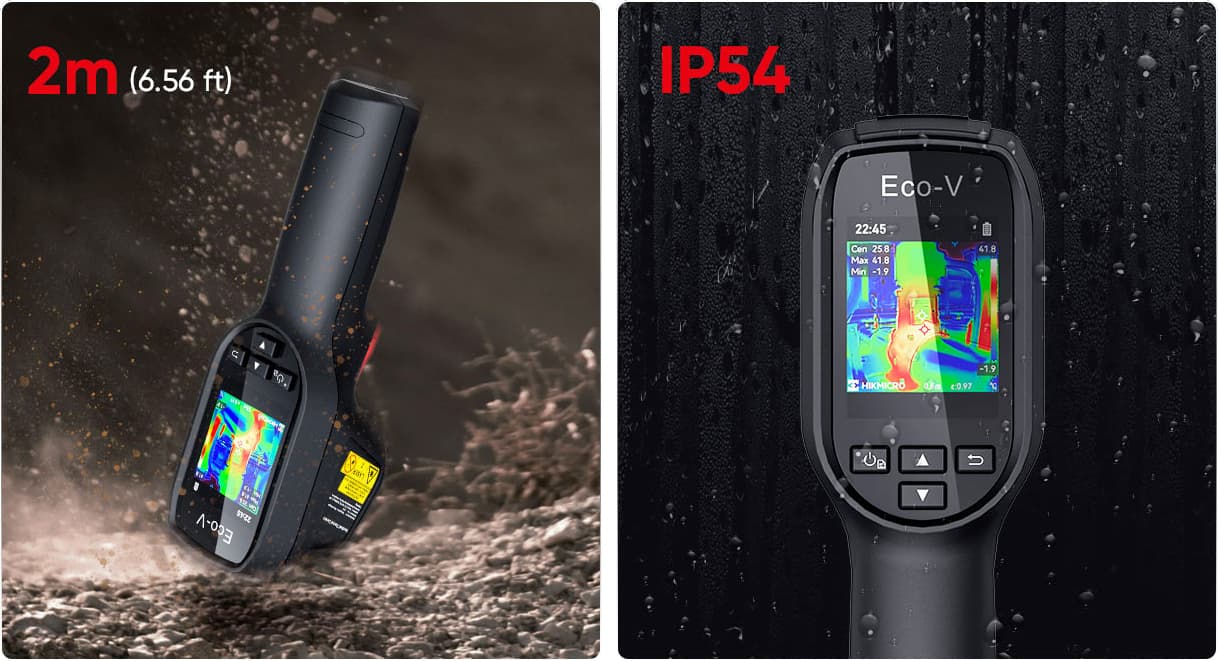

 Rugged and Durable Features IP54-rated form factor, passes strict drop tests up to 2 meters (6.56 feet) and comes with a three-year warranty. |
 Full-screen Precise and Wide Temperature Measurement Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C (-4°F) to 550°C (1022°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading. |
 8 Hrs. Continuous Runtime Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (5/10/20 minutes) allow the camera up to 8 hours of continuous operation. |

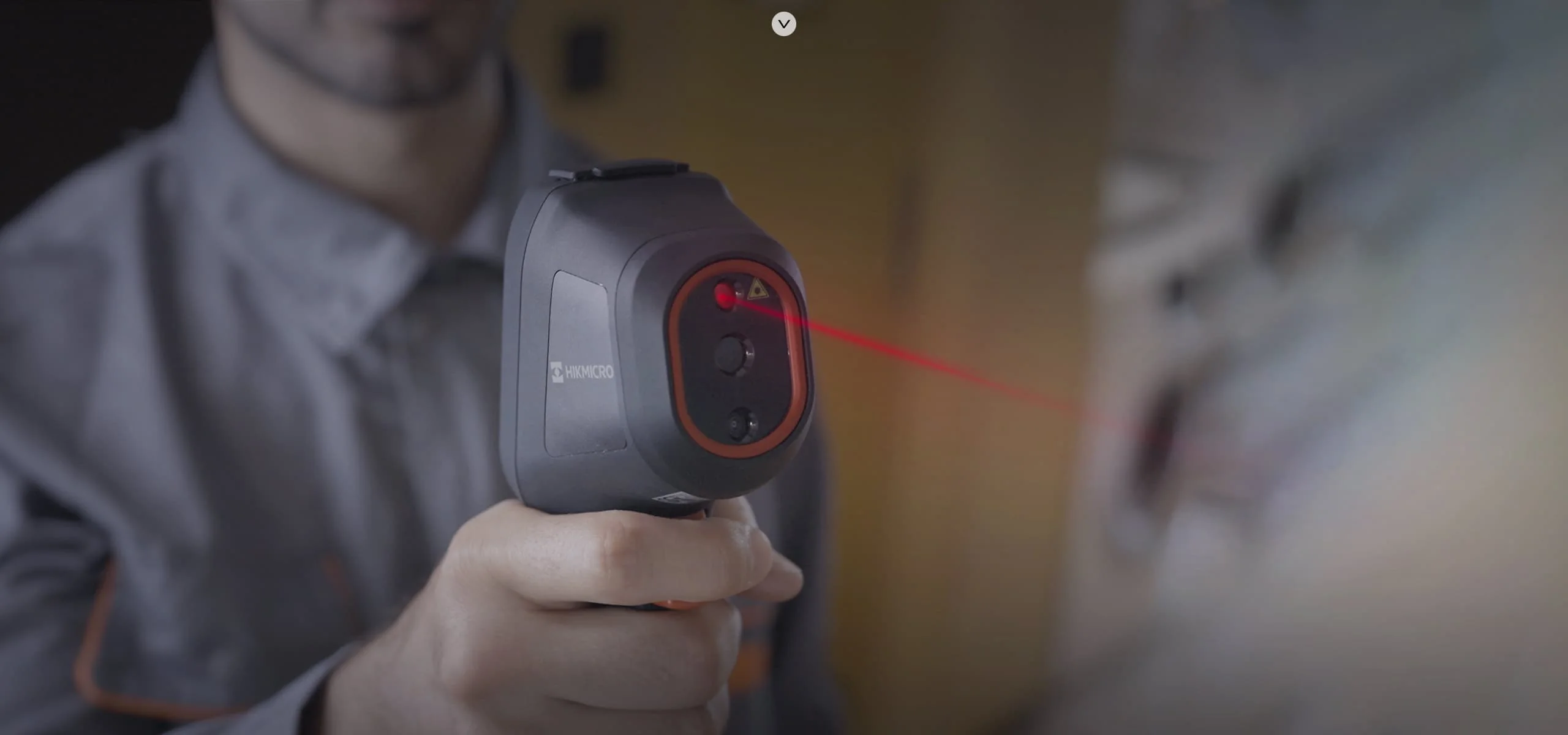

 Locate with Laser Pointer Helps show the position of the center point on actual object. |
 1-Click IR and Visual Image Storage (Eco-V Only) Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report. |

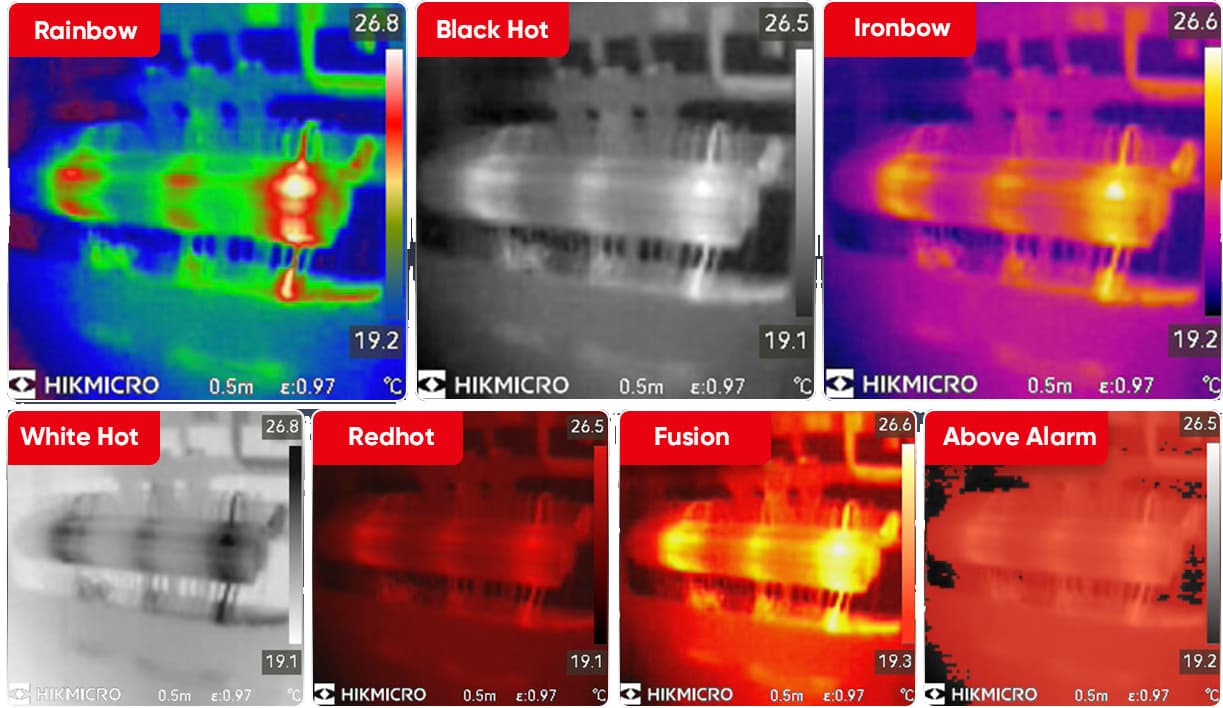

 7 Color Palettes Offers White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm 7 color palettes so you can choose the ideal color scale for your job. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Temperature Range (°C) | -20°C to 150°C / 100°C to 550°C |
|---|---|
| Temperature Range (°F) | -4°F to 302°F / 212°F to 1022°F |
| IR Resolution | 96 × 96 (9216 Pixels) |
| SuperIR | Yes, on captured images and live view |
| Distance to Spot Ratio (D:S) | 15:1 |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1m (0.33 ft) |
| Focus Mode | Focus Free |
| Display | 240 x 320 Resolution, 2.4" LCD Screen |
| Visual Camera | 640 x 480 (0.3 MP) |
| Image Modes | Thermal / Visual / Fusion |
| Screen Brightness | Manual |
| Alarm | More than, Less than |
| Alarm Linkage | Alarm Mode Palettes |
| Level & Span Mode | Auto/Manual |
| Storage Media | Built-in 4 GB eMMC (user available storage space is less than the nominal capacity) |
| Image Storage Capacity | Max 17,000 Images |
| Image File Format | Radiometric JPEG |
| Video Storage Capacity | MP4 (Approx. 11h) |
| Video File Format | MP4 |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC |
| USB Interface | USB Type-C |
| Laser | Yes (Class II) |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Time | 8 Hours (Operating Time) / 3 Hours Fully Charged with Adapter Output:5V 2A (Charging Time) |
| Protection Level | IP54 |
| Drop Test Height | 2m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% Non-condensing |
| Tripod Mounting | UNC 1/4 inch - 20 |
| Power Supply | USB-C (5V/2A) |
| Dimensions | 196 x 117 x 59 mm (7.7 x 4.6 x 2.3 inch) |
