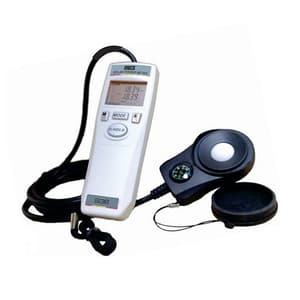

Meco Solar Power Meter With Orientation & Tilt Angle, 936
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Weight: 220 kg
- Tilt Angle Range: 0 ~ 90°
- Measurement Range: 2000 W/m
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,499 (Incl. of all taxes)
₹13,135 + ₹2,364 GST (18%)
MRP was MRP ₹15,453
Save 15%
Out of Stock
30 Business Days
1
–
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
This instrument is designed to measure Solar Power in the range from 400 to 1100 nanometers. The good Spectral Range, Orientation and Angular detection of meter allow users to conduct the most precise quantitative measurements of Solar Power Radiation
Solar Power Meter (Irradiance Meter) With Orientation & Tilt Angle: 0 - 90º, Irradiance Range: 0 - 2000 W/m (0 - 634 BTU ft2.h) with Data Hold and Backlight Display
Features:
- Solar Power Measurement with Orientation and Tilt Angle
- Easy measurement for rate of daylight penetration
- Auto change for measuring range
- Auto power off with disable function
- Instantaneous display Ave/Min/Max values
- 20 points memory
- Socket of tripod mounting
- Magnetic mount
- Backlit LCD and 4 digits triple display
Application:
- Solar Power Plant
- Solar Radiation Measurements
- Solar Power Research for Location of the Solar Panels or Solar Water Heaters
- Physics and Optical Laboratories
- Meteorology
- Agriculture
- Windows Performance Calculate the Rate of Daylight Penetration
Accessory:
- 9V Battery
- Carrying case
- Instruction Manual
Specifications:
Hight sensitive silicon photodiode |
400 ~ 1100 nm |
0~2000 W/m (0~ 634 BTU / ft .h) |
±10W/m (±3 BTU/ ft .h) or ±5% (whichever is greater) |
0.00~99.99 W/m : 0.01 W/m / 100.0~999.9 W/m : 0.1 W/m ,1000~2000 W/m : 1 W/m / 0.00~99.99 BTU/ft .h : 0.01 BTU/ ft .h / 100.0~634.0 BTU/ft .h : 0.1 BTU/ ft .h |
Cosine Corrected < 7% (angle < 60°) |
Tilt Angle Range0~90° |
±1.2°(< 60°), Additional Temperature Induced Error±0.1°/°C from 23°C |
Operation Temp. & Relative Humidity0°C~50°C (32°F~122°F) Less than 80% RH |
-10°C~60°C (14°F~140°F) Less than 85% RH |
Enable or Disable (Auto Power off after approx. 10 minutes) |
Approx. 30 Hours for Continuous Use |
Main Instrument : 140 x 49 x 29 mm (approx.) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Tilt Angle Range | 0 ~ 90° |
|---|---|
| Measurement Range | 2000 W/m |
| Measuring Accuracy | ±10W/m (±3 BTU/ ft .h) or ±5% |
