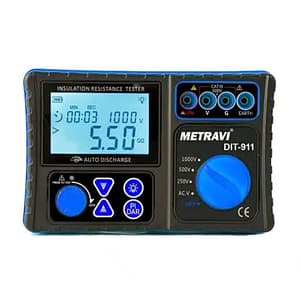

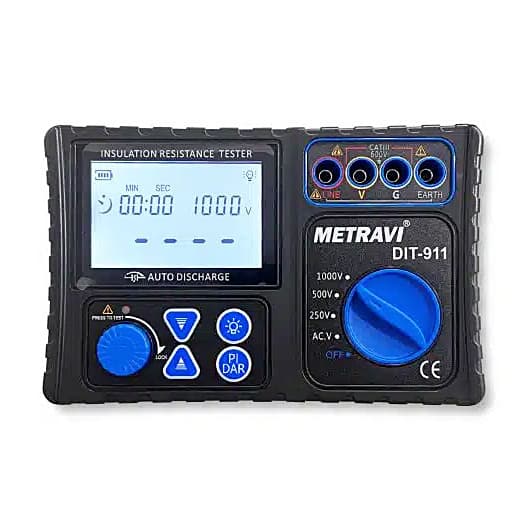

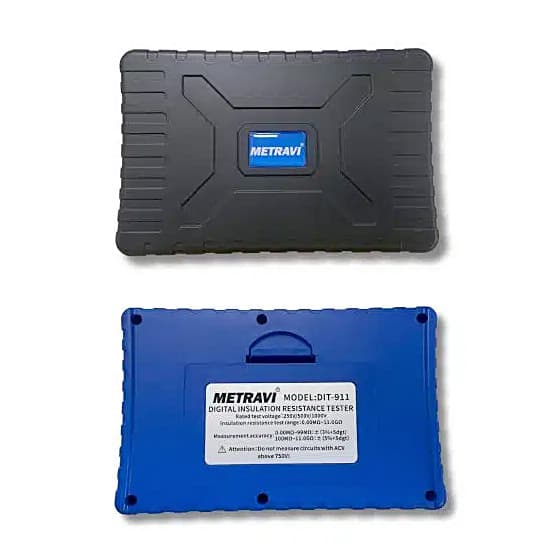

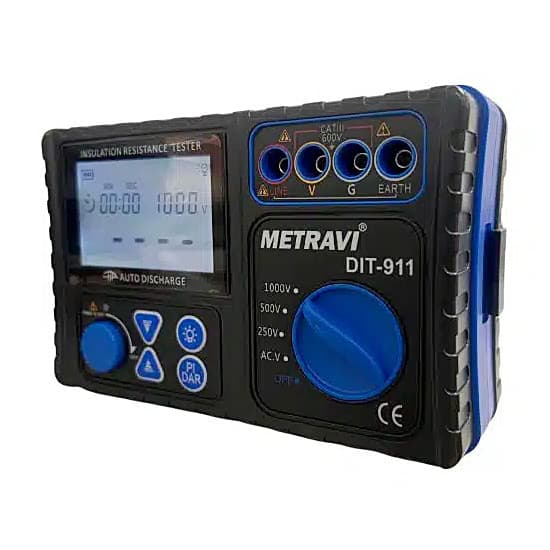

Metravi 250V - 1000V Rated Voltage Digital Insulation Resistance Tester, DIT-911
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 0.4 kg
- Display: LCD, 1999 Counts, 3-1/2 digits, Backlit
- Rated Voltage: 1000V, 250V, 500V
- Short-circuit Current: <1.8mA
- AC Voltage Resolution: 1V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,875 (Incl. of all taxes)
₹4,131 + ₹744 GST (18%)
MRP was MRP ₹6,075
Save 32%
5 Business Days
1
90303900
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi DIT-911 is a handy, multi-functional, Digital Insulation Resistance Tester with 3 1/2 Digits 1999 Counts Backlit Display, and measures 0.00MΩ~11.0GΩ at 250V / 500V / 1000V, with high accuracy.
It also measures DC Open Circuit Voltage, Short Circuit Current, Rated Test Current, AC Voltage Test, PI, DAR and has an Automatic Discharge function.
Features:
- 3-1/2 Digits 1999 Counts LCD Backlit Display
- Backlight On/Off function
- Lock function for hands-free operation
- Insulation Resistance Range: 0.00MΩ~99MΩ, Accuracy ±3%+5dgt; 100MΩ~11.0GΩ, Accuracy ±5%+5dgt;
- Rated Voltage Range: 250V / 500V / 1000V
- PI - Polarisation Index measurement
- DAR - Insulation Resistance Value Absorption Ratio
- DC Open Circuit Voltage
- Short Circuit Current
- Rated Test Current
- AC Voltage Test
- PI – Polarisation Index measurement
- DAR – Insulation Resistance Value Absorption Ratio
- Automatic Discharge function
- Complies to IEC 61010-1, CATIII 600V
- Double-insulated Housing
- Alarm function
- Battery Operated
Technical Specifications:
| Rated Voltage | 250V MAX:5.5GΩ |
500V MAX:5.5GΩ |
1000V MAX:11.0GΩ |
| Range of Accuracy | 0.00MΩ~99MΩ:± (3 %+5dgt; 100MΩ~11.0GΩ:± (5 %+5dgt) | ||
| Measuring Range | 0.00MΩ~11.0GΩ (When the value is less than or equal to 4.0 MΩ, the buzzer alarms | ||
| DC Open Circuit Voltage | 250V ±10% | 500V ±10% | 1000V ±10% |
| Rated Test Current | 250KΩ load 0.9mA~1.1mA | 500KΩload 0.9mA~1.1mA | 1MΩload 0.9mA~1.1mA |
| Short Circuit Current | Approximately less than 1.8mA | ||
| AC Voltage Test | |||
| Measuring range | AC30V~ AC750V(50Hz/60Hz)Resolution:1V | ||
| Accuracy | ±(2%+3dgt |

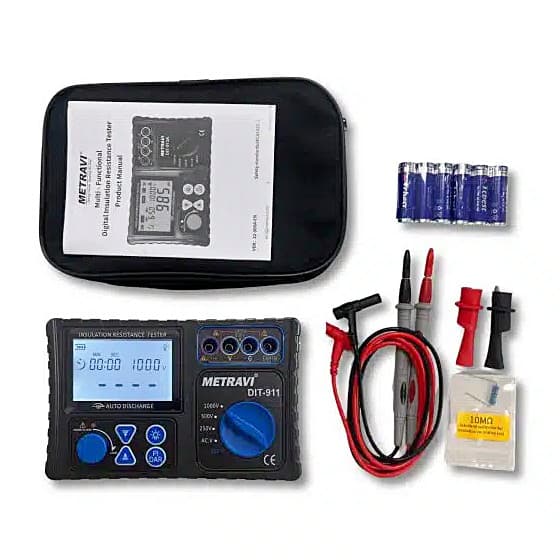

What's Included In This Package:
- 1x Test Leads
- 1x Pair Crocodile Clips
- 1x 10MΩ Standard Resistor
- 1x User Manual

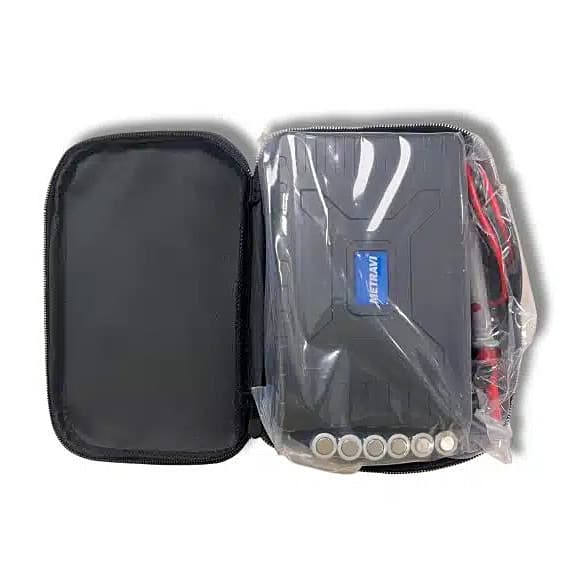

- 1x Soft Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Colour | Black |
|---|---|
| Display | LCD, 1999 Counts, 3-1/2 digits, Backlit |
| Battery Size | AA |
| Battery Capacity | 1.5V |
| Rated Voltage | 1000V, 250V, 500V |
| Short-circuit Current | <1.8mA |
| DC Current Accuracy | 0.00MO~99MO:± (3 %+5dgt), 100MO~11.0GO:± (5 %+5dgt) |
| AC Current Accuracy | ±(2%+3dgt |
| Resistance Measuring Range | 0.00MO~11.0GO |
| AC Voltage Measuring Range | AC30V~ AC750V(50Hz/60Hz |
| AC Voltage Resolution | 1V |
| Operating Temperature | 0° - 40°C |
| Operating Humidity | 30% - 85%RH |
| Dimensions (LxWxH) | 165 mm x 105 mm x 63 mm |
