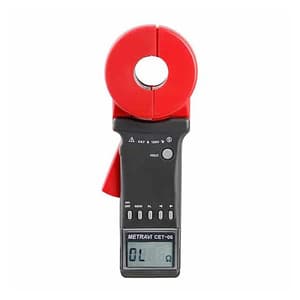

Metravi 4 Digits / 0.01Ohm - 199Ohm Resistance Range Clamp On Ground Resistance Tester With Round Jaw, CET-06

The Metravi CET-06 Clamp-on Ground Resistance Testers has:


• Self-test facility. No need to wait a long time to boot. Ready to use immediately after being switched on.
• Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, fully intelligent.
• Handheld device, easy to carry. New design, panel operation with 6 buttons, better performance. Loud sound and light alarms; “beep—beep–beep –” alarm sound.
• Improved interference signal recognition indicator. Improved anti-jamming capability and test stability. Data storage: 99 Units. Wider range: 0.01Ω-200Ω.
• Lower power consumption: Maximum operating current does not exceed 50mA. Are widely used for grounding resistance measurement in power, telecommunications, meteorology, oil fields, construction industries and electrical equipments.
• In the measurement of a grounding system with loop current, it does not require breaking down the grounding wire and needs no auxiliary electrode.
• Safe, fast and simple to use.
• Can measure ground faults beyond the reach of traditional methods and can be applied in situations not in the range of traditional methods.
• Can measure integrated value of the grounding body resistance and the grounding lead resistance.

Features:

• Display: 4 digit Backlit LCD
• Resistance Range: 0.01Ω to 200Ω
• Resolution: 0.01 Ohms
• Auto Ranging
• Storage of Measured Data: 99 Data
• Setting of Resistance Alarm Critical Value: 1 – 199 Ohms
• Data Hold, Auto Power Off
• Instrument safety: IEC/EN61010-1, IEC/EN6010-2-032
• Double insulation, pollution degree: class II
• Over-voltage category: CATIII 150V to ground, Max 20A Degrees of protection.
• IP30, Group III equipment as per EN 60529 Ed 92 IK04, as per EN 50102 Ed 95
• Span of Jaw : 32 mm
• Battery type: 4 ×1.5V alkaline LR6 AA battery (not included)
• Low battery indicationInternal consumption: <50mA
• Auto Power Off: after 5 minutes of being idle
• Display: 4 digits 9999 counts Backlit LCD with annunciators
• Memory size: 99 Units of Reading
• Data upload interface: RS232 (Optional)
• Weighted around 1120 grams (including batteries)
