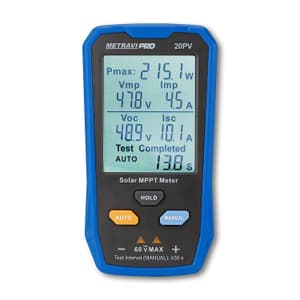

Metravi 5 - 800W Solar MPPT Meter, PRO 20PV
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Weight: 154 g
- Max Power Measuring Range: 5~800W
- Display: Large LCD (52 x 66 mm)
- Test Modes: Manual / Auto
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,066 (Incl. of all taxes)
₹5,141 + ₹925 GST (18%)
MRP was MRP ₹7,560
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights

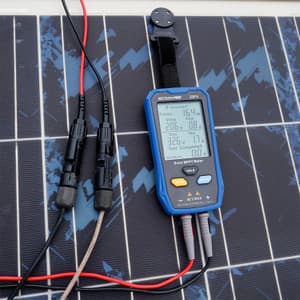

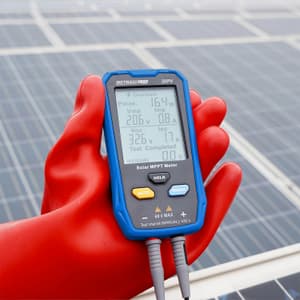

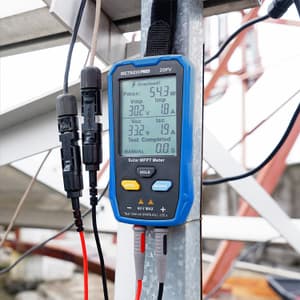

The Metravi Pro 20PV Solar MPPT Meter can effectively identify any abnormalities in solar panels by testing their Maximum Power, Peak Power Voltage, Peak Power Current, Open Circuit Voltage, and Short Circuit Current. Featuring a large display and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. The Metravi Pro 20PV Solar MPPT Meter’s portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for Photovoltaic and Solar Panel manufacturers, installers, and end users.
Features:
- Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles
- Make instantaneous measurements to determine the watts per square meter solar irradiation, required by IEC 62446-1 standard
- High contrast LCD with large numbers for easy readability in direct sunlight
- Includes convenient carry case with shoulder strap
- Large screen and multiple result display: A single measurement that displays all essential test values can significantly enhance work efficiency.
- No batteries needed, powered by the solar panel: There is no requirement for batteries as the measurement can be effortlessly performed for extended periods.

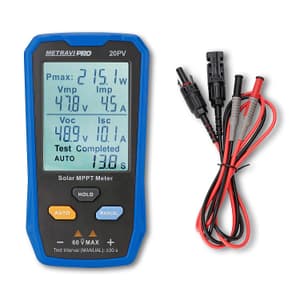

- Equipped with MC4 test lead: With the MC4 connector already included, there is no need for additional solar panel connectors. This enables quick and efficient measurements to be performed effortlessly.
- Portable and convenient: With its portable and lightweight design, this meter provides operators with convenience and ease of use, making it an incredibly versatile and indispensable tool for a wide range of tasks.
Technical Data:
| Maximum Power Test |
5~800W |
|---|---|
| Peak Power Voltage |
12~ 60V |
| Open Circuit Voltage |
12~60V |
| Short Circuit Current |
0~35A |
| Maximum Power Measurement Range |
5~800W |
| Maximum Power Measurement Accuracy |
±(1.0%+10) |
| Maximum Power Measurement Resolution |
0.1W |
| Maximum Power Current(DC) Range |
0~35A |
| Maximum Power Current(DC) Accuracy |
±(1.5%+5) |
| Maximum Power Current(DC) Resolution |
0.1A |
| Maximum Power Voltage(DC) Range |
12~60V |
| Maximum Power Voltage(DC) Accuracy |
±(1.5%+5) |
| Maximum Power Voltage(DC) Resolution |
0.1V |
| Open Circuit Current(DC) Range |
12~60V |
| Open Circuit Current(DC) Accuracy |
±(1.5%+5) |
| Open Circuit Current(DC) Resolution |
0.1V |
| Short Circuit Current(DC) Range |
0~35A |
| Short Circuit Current(DC) Accuracy |
±(1.5%+5) |
| Short Circuit Current(DC) Resolution |
0.1A |

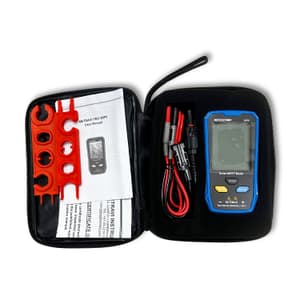

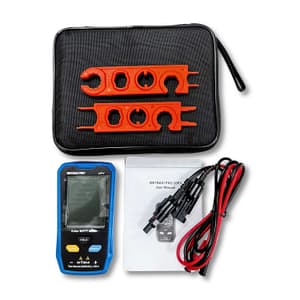

What's Included In This Package:
- MC4 Test Leads
- User Manual

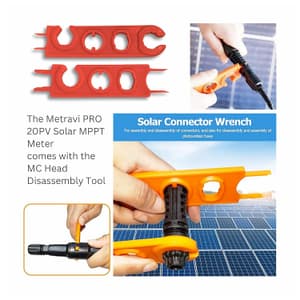

- MC Head Disassembly Tool
- Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max Power Measuring Range | 5~800W |
|---|---|
| Display | Large LCD (52 x 66 mm) |
| Protection | Over-current protection, Over-power protection, Over-temperature protection, Over-voltage protection, Protection against reverse polarity connections |
| Test Modes | Manual / Auto |
| Over Range Indication & Data Hold | Yes |
| Power Supply | Powered by the Solar Panel Under Test |
| Certifications | CE, Pollution Degree 2, RoHS, CAT 0 60V, cETLus |
| Drop Proof | 1m |
| Operating Altitude | < 2000m |
| Operating Temperature | 18°C to 28°C (64°F to 82°F) |
| Dimensions (mm) | 142 x 76 x 22 mm |
