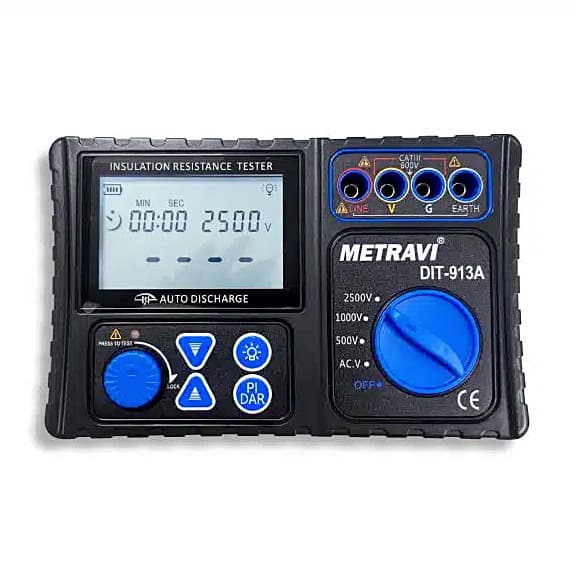

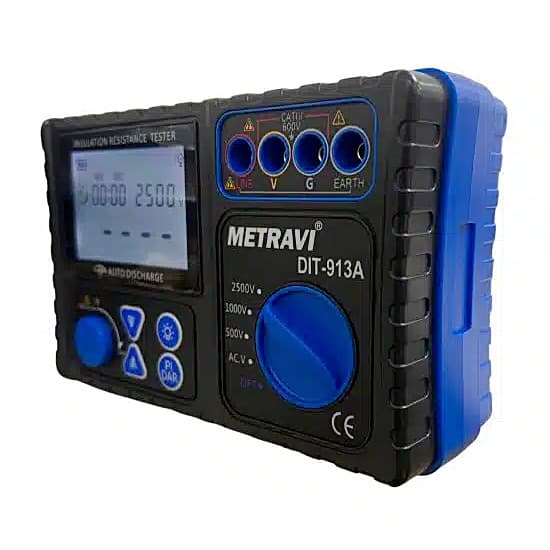

Metravi 500V - 2500V Rated Voltage Digital Insulation Resistance Tester, DIT-913A
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 0.4 kg
- Display: LCD, 1999 Counts, 3-1/2 digits, Backlit
- Short-circuit Current: <1.8mA
- Resolution: 1V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,741 (Incl. of all taxes)
₹4,865 + ₹876 GST (18%)
MRP was MRP ₹7,155
Save 32%
5 Business Days
1
90303900
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi DIT-913A is a handy, multi-functional, Digital Insulation Resistance Tester with 3 1/2 Digits 1999 Counts Backlit Display, and measures 0.00MΩ~22.0GΩ at 500V / 1000V / 2500V, with high accuracy.
It also measures DC Open Circuit Voltage, Short Circuit Current, Rated Test Current, AC Voltage Test, PI, DAR and has an Automatic Discharge function.
Features:
- 3-1/2 Digits 1999 Counts LCD Backlit Display
- Backlight On/Off function
- Lock function for hands-free operation
- Insulation Resistance
- AC Voltage Test
- PI - Polarisation Index measurement
- DAR - Insulation Resistance Value Absorption Ratio
- Automatic Discharge function
- Complies to IEC 61010-1, CATIII 600V
- Double-insulated Housing
- Alarm function
Technical Specifications:
| Rated Voltage | 500V MAX:5.5GΩ |
1000V MAX:11.0GΩ |
2500V MAX:22.0GΩ |
| Range of Accuracy | 0.00MΩ~99MΩ:± (3 %+5dgt; 100MΩ~22.0GΩ:± (5 %+5dgt) | ||
| Measuring Range | 0.00MΩ~22.0GΩ (When the value is less than or equal to 4.0 MΩ, the buzzer alarms | ||
| DC Open Circuit Voltage | 500V±10% | 1000V±10% | 2500V±10% |
| Rated Test Current | 250KΩ load 0.9mA~1.1mA | 500KΩload 0.9mA~1.1mA | 1MΩload 0.9mA~1.1mA |
| Short Circuit Current | Approximately less than 1.8mA | ||
| AC Voltage Test | |||
| Measuring range | AC30V~ AC750V(50Hz/60Hz)Resolution:1V | ||
| Accuracy | ±(2%+3dgt |

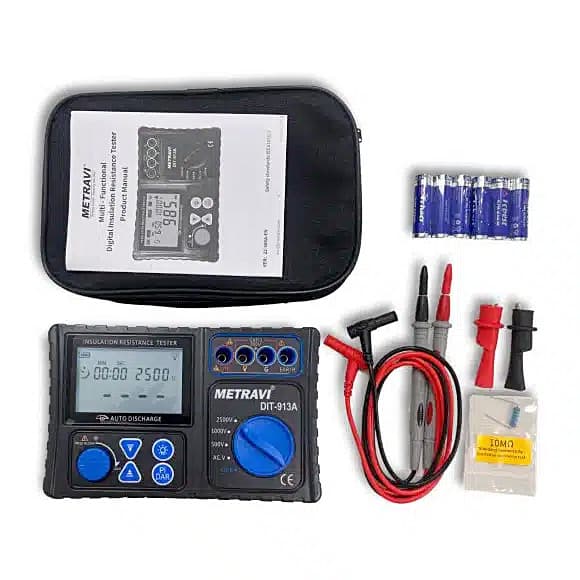

What's Included In This Package:
- 1x Test Leads
- 1x Pair Crocodile Clips
- 1x 10MΩ Standard Resistor
- 1x User Manual

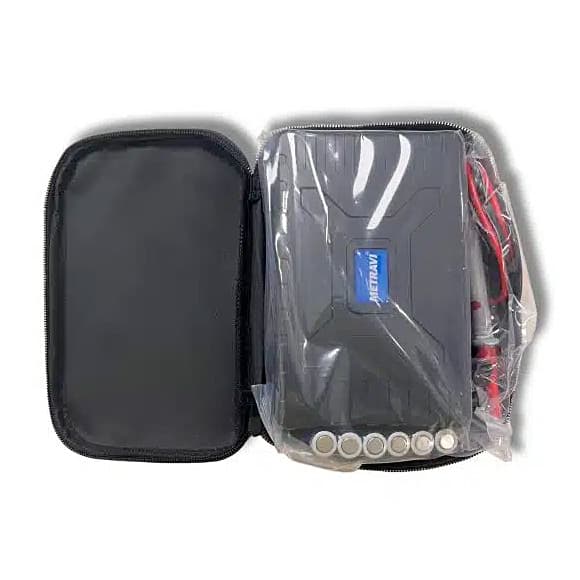

- 1x Soft Carrying Case
- 6x 1.5AA batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Colour | Black |
|---|---|
| Display | LCD, 1999 Counts, 3-1/2 digits, Backlit |
| Measuring Range | 0.00MOhms~22.0GOhms, AC30V~ AC750V(50Hz/60Hz) |
| Short-circuit Current | <1.8mA |
| DC Current Accuracy | 0.00MOhms~99MOhms:± (3 %+5dgt), 100MOhms~22.0GOhms:±5%+5dgt) |
| AC Current Accuracy | ±(2%+3dgt |
| Resolution | 1V |
