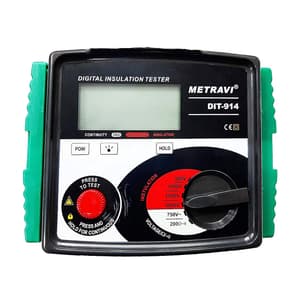

Metravi 500V - 5000V Battery Cum Mains Operated Digital Insulation Resistance Tester, DIT-914
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 0.85 kg
- Insulation Test Voltage: 500V / 1000V / 2500V / 5000V
- AC Voltage Range: 0V to 750V
- Resistance Range: 0 to 200 ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,040 (Incl. of all taxes)
₹16,983 + ₹3,057 GST (18%)
MRP was MRP ₹24,975
Save 32%
5 Business Days
1
90308990
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
Battery cum Mains Operated, with facility to measure AC Voltage, Low Resistance, Continuity, 500V/2000M.Ohms, 1000V/2000M. Ohms, 2500V/20G.Ohms, 5000V/200G.Ohms.
Features:
- Four ranges: 500V, 1000V, 2500V, 5000V
- High voltage output testing auto extends for 30 seconds.
- Autorange insulation resistance testing
- 2 seconds high voltage output interval with warning beeper
- AC voltage /Continuity/Low resistance measuring
- White backlight to view the test results in dimly lit areas.
- Display: LCD:75*35mm, Max reading: 1999
- Low battery indication
- Diode & Continuity test
- Audio Alarm
- Overload Indication
- Low Battery Indication
- Battery Cum Mains Operated

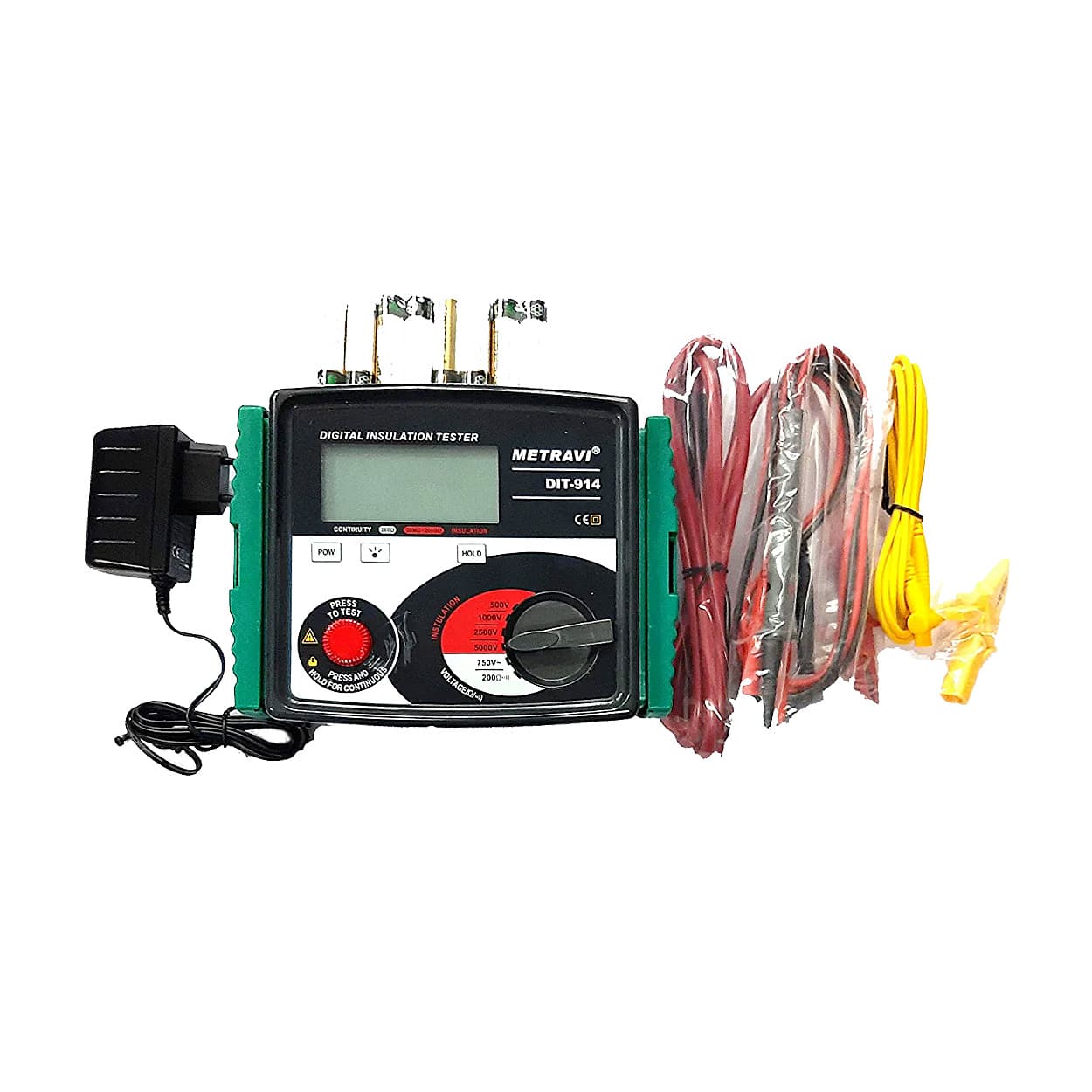

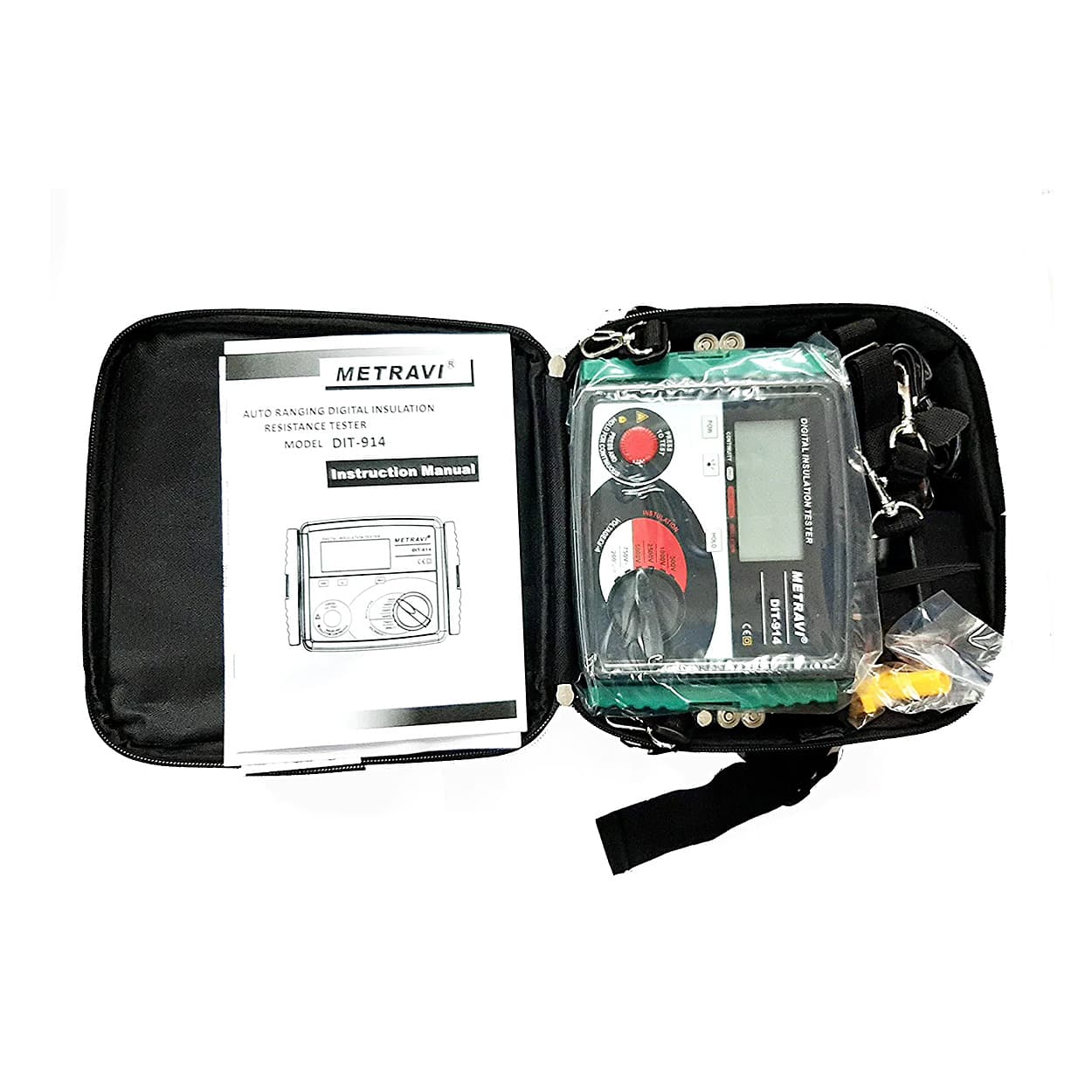

What's Included In This Package:
- One Pair of Test Line
- One Pair of Crocodile Clips
- 6 Pcs Batteries
- Mains Adapter
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | Backlit LCD |
|---|---|
| Colour | Black |
| Power Source | Battery Operated, Mains Operated |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 6 |
| Short-circuit Current | >1mA (2500V), >2mA (250V to 1000V) |
| Insulation Test Voltage | 500V / 1000V / 2500V / 5000V |
| Insulation Resistance Range | 200 to 200G ohms |
| AC Voltage Range | 0V to 750V |
| Resistance Range | 0 to 200 ohms |
| Accuracy | ±2%±5 |
