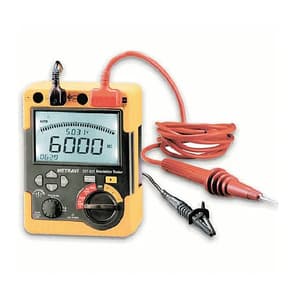

Metravi 500V - 5000V Battery Cum Mains Operated Digital Insulation Resistance Tester, DIT-921

Battery cum Mains Operated, with facility to measure, PI, DAR, AC Voltage, Low Resistance, Continuity, 500V/6G.Ohms, 1000V/6G.Ohms, 2500V/60G.Ohms, 5000V/60G.Ohms. The high voltage insulation resistance tester is a handheld instrument designed primarily to measure AC/DC voltage, Resistance, Continuity test/insulation resistance.

Safety:

This insulation resistance tester complies with the standards IEC61010 safety measurement requirement in pollution degree 2, over voltage category (CAT IV 600V) and double insulation.

Features:

• Designed to following safety standards: IEC 61010-1 (CAT IV 600V Pollution degree 2) IEC 61010-031 (Requirements for hand-held probes)
• Insulation test range: 0.1M to 60G
• Insulation test voltages: 500 V,1000V,1500V,5000V
• AC/DC voltage: 0.5 V to 600 V
• 200 mA Continuity
• Resistance: 0.1  to 6k
• Battery Cum Mains Operated
• With auto-discharge function & voltage output warning function
• Backlight levels selector function to facilitate working at dimly illuminated location or at nighttime work.
• LIVE circuit warning symbols plus audible warning.
• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
• With Auto-power off function & battery check.
• With Timer measurement function : Automatically performs a measurement at the set time.
• With Polarization index measurement (PI)
• With Dielectric absorption ratio measurement (DAR)
• Auto ranging with larger 6000 counts LCD display with bargraph
• MAX/MIN, PEAK,Relative value & Data hold functions for DC/AC voltage measurments.
• Accuracy: +2.5%
