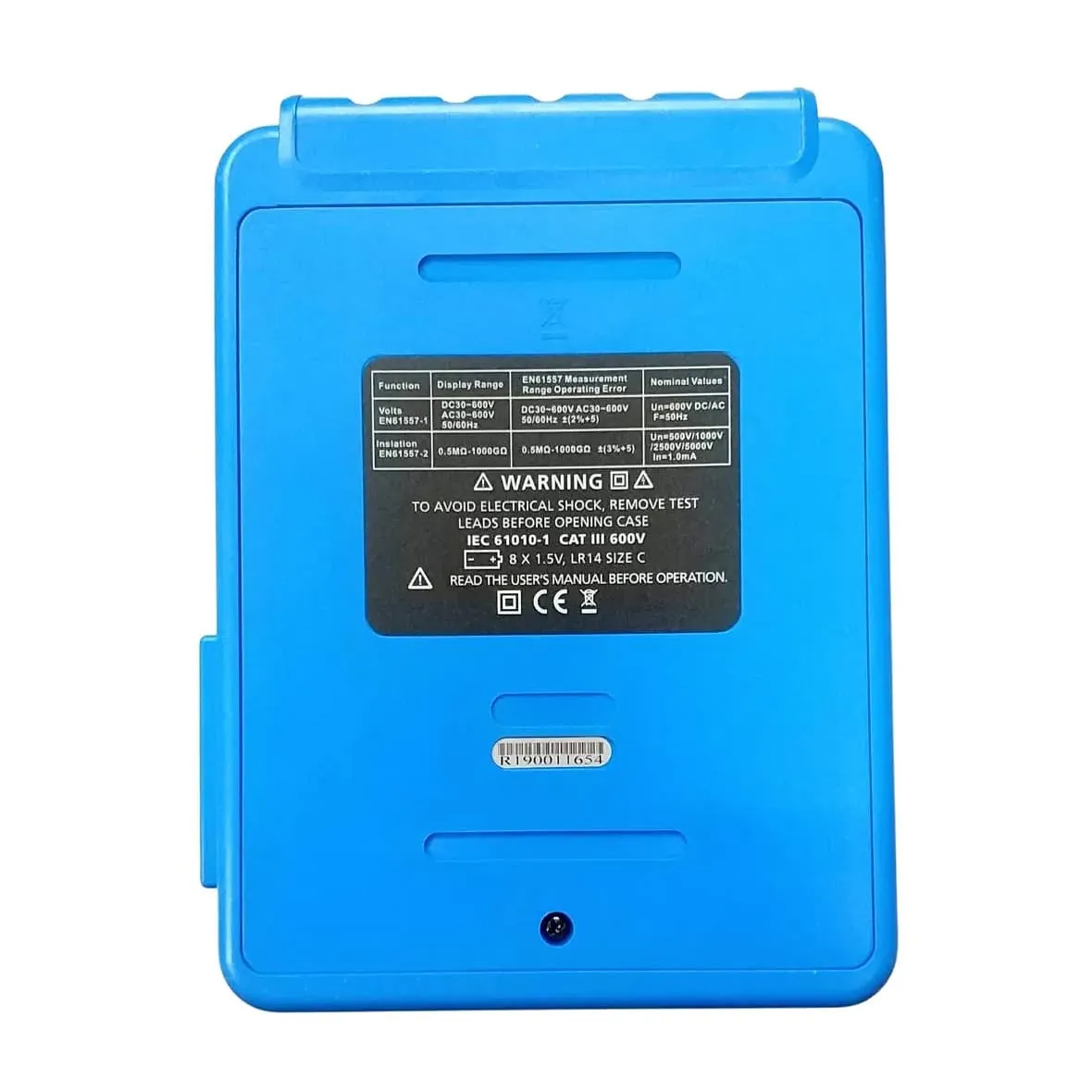

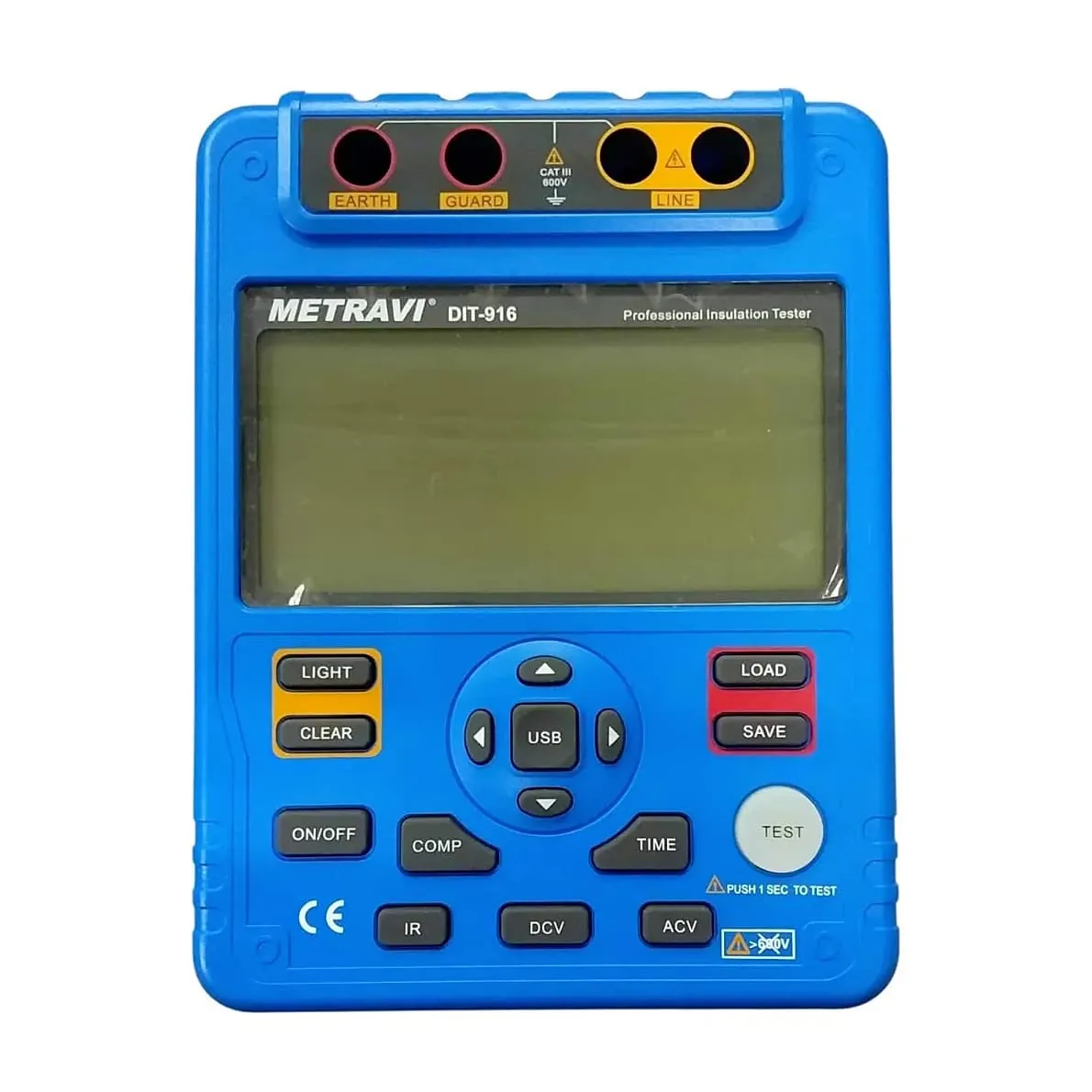

Metravi 500V - 5000V Digital Insulation Resistance Tester With USB PC Interface, DIT-916
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 2 kg
- Insulation Test Voltage: 500V / 1000V / 2500V / 5000V
- Bargraph: Analogue Bargraph
- Short-circuit Current: =2.0mA
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹37,913 (Incl. of all taxes)
₹32,130 + ₹5,783 GST (18%)
MRP was MRP ₹47,250
Save 32%
5 Business Days
1
90308990
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
Digital Insulation Tester for 500V / 1000V / 2500V / 5000V & 1T.Ohms with USB PC Interface cable and software.
Features:
- Test insulation of wires, cables, transformers, motors, surge arrestors and generators
- Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000V
- Insulation resistance measurement up to 1T Ω
- User selectable programmable timer (10s to 30 min)
- Automatic discharge of test object after completion of measurement
- Diagnostic tools
- Polarization index (PI)
- Dielectric absorption ratio (DAR)
- USB PC Interface
- Comparison feature to set pass/fail thresholds for quick measurement and verification
- Dual power source – receptacle or batteries
- Built in internal memory storing 18 measurements

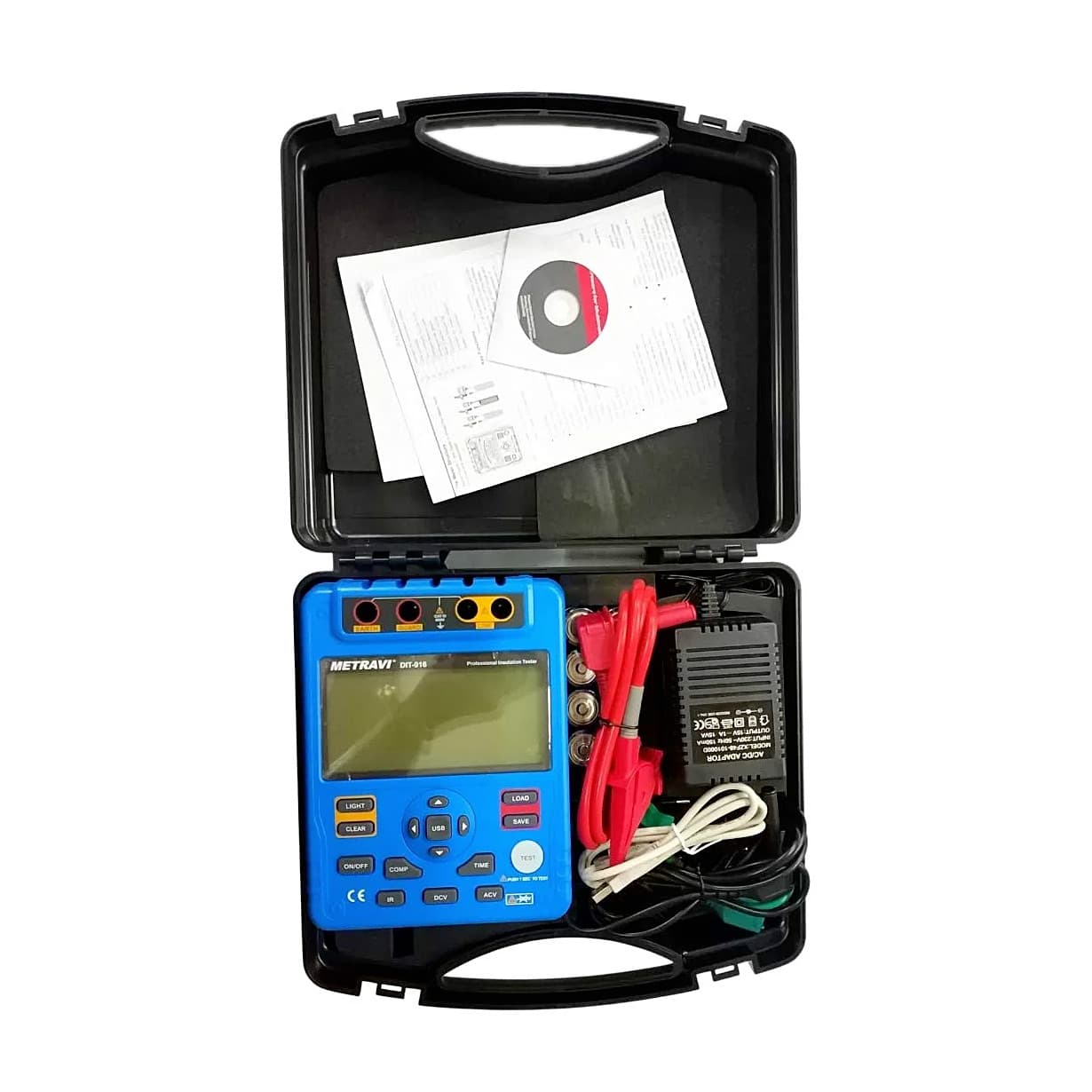

- Comes as a complete kit: power adapter, software, USB interface cable, hard carrying case, batteries, complete set of test leads, and instruction manual
- CAT III 600V
- Confir cmes to: IEC 61010 CAT.III 600V overvoltage and double insutation standard
- Display (LCD) : Digital : 9999 counts Analog bar graph
- Display Backlight : Bright Backlight for clear readings in poorly lighted areas

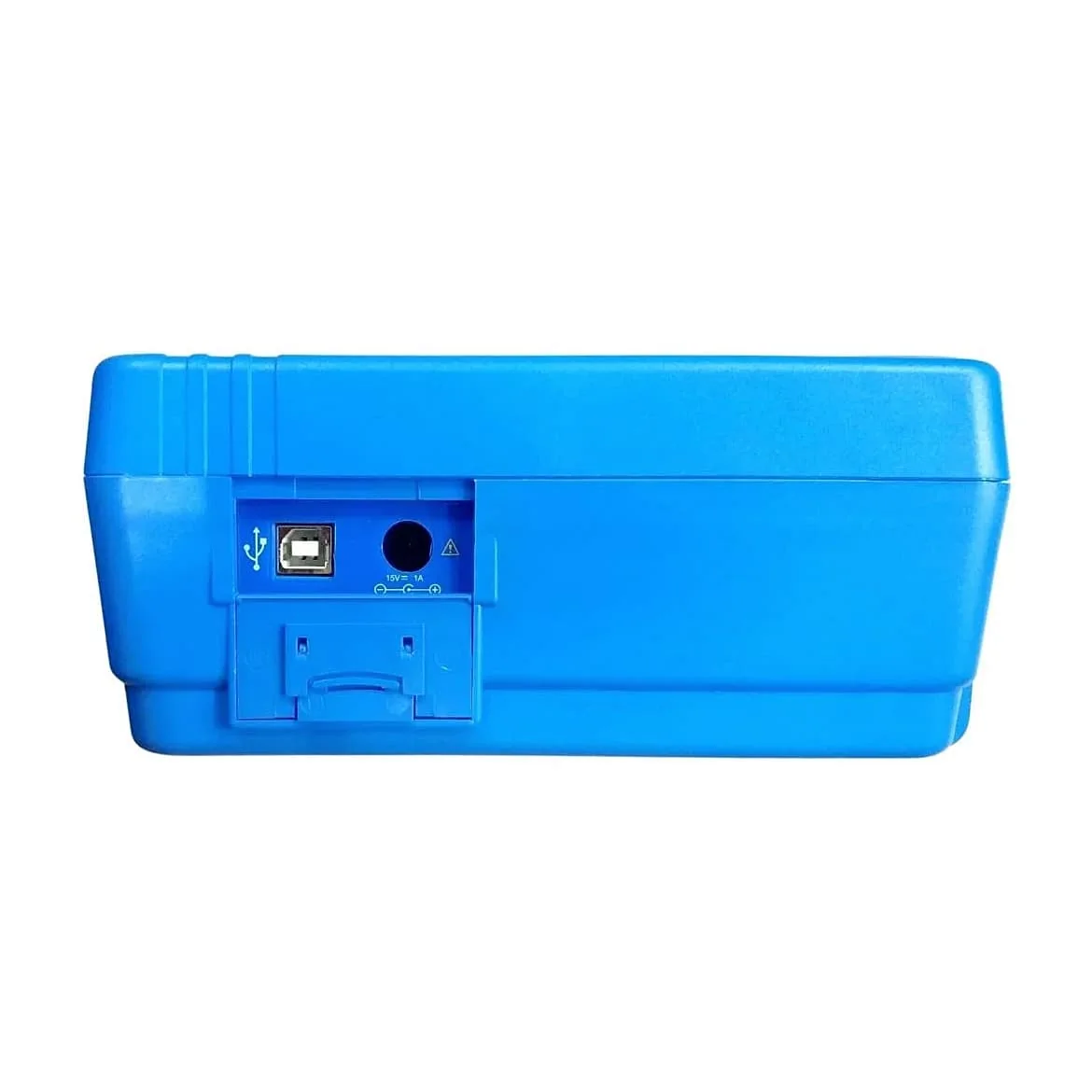

- Computer Connection : Via USB interface
- Data Logging and Recall : 18 sets
- Auto Range : The meter automatically selects best range
- Warning : Displayed on the instrument
- Test Voltage : Automatically source the voltage
- COMP Measurement : Used for Compare function to set a pass/fail compare level for the insulation measurement
- PI Measurement : Polarization Index is the ratio of insulation resistance. Preset the time for two points and the Meter will carry out the measurement automatically
- Time : To carry out measurement by setting a specificed time within 15 minutes
- Over Loading : Display OL on insulation resistance range
- Battery Indicator : Low Battery indication
- Battery type : 8pcs of 1.5V (LR14) batteries or power adaptor (input voltage 230V, 50/60Hz, 150mA, input DC15V, 1.0A)Power adaptor is optionally at extra cost
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | Backlit LCD |
|---|---|
| Colour | Blue |
| Data Logging | 18 sets |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| No of Batteries | 8 |
| Automatic Charge Discharge | After test automatically releases charge of test object |
| Comparator | Pass/Fail thresholds for quick measurement and verification |
| Test Timer Function | User-selectable (10sec to 30min) |
| Insulation Test Voltage | 500V / 1000V / 2500V / 5000V |
| Insulation Resistance Range | 0.0M ohms to 1T ohms |
| Bargraph | Analogue Bargraph |
| Short-circuit Current | =2.0mA |
| Accuracy | ±3% ±5 |
| Certifications | CAT-III 600V, IEC 61010 |
| Dimensions | 202 x 155 x 94 mm |
