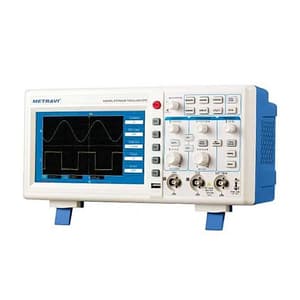

Metravi 50MHz / 500MSa/Sec Dual Channel Digital Storage Oscilloscope, DSO-5050E

50MHz DSO, 500MSa/Sec, with colored display, USB PC Interface cable and software. The instrument is designed and manufactured strictly according to “Safety Requirements of Electronic Measuring Instrument (GB4793) and IEC61010-1 Safety Standard. It Conforms to “Insulation Overvoltage Standard” (CAT II o) and Safe Standard with Pollution Leve II

DSO-5000E Series Digital Storage Oscilloscope provides simple front panel with clear functions to users for all basic operations. Scale and position of various channels can provide intuitional operation to meet usage habits of traditional instruments, Users can use it skillfully without learning and being familier with operation for a long time. Users can also press AUTO key directly to accelerate adjustment and facilitate measurement. Appropriate waveform and gear setup can be shown on the instrument panel. DSO-5000E Series Digital Storage Oscilloscope also has high-performance indicators and powerful functions to fulfill measurement tasks quickly besides easy usage.

Quicker signals can be observed by DSO-5000E Series Digital Storage Oscilloscope by real-time sampling of 250MS/s or 500MS/s (or 1GS/s) and equivalent sampling of 25GS /s (or 50GS/s). It can capture and analyze waveform easily by powerful trigger and analysis capacity. Users can also observe and analyze signal problems quickly and clearly by clear LCD display and mathematical calculation function. We can see that such series of Digital Storage Oscilloscope can meet your measurement requirements by following performance

Features:

• Double Analog Channels High-resolution colorful LCD display with resolution of 400 X 240 (or 800 X 480)
• To support plug and play USB storage instrument to communicate with computer.
• Automatic waveform and status setup. Waveform, setup, bitmap storage, waveform and setup reoccurrence.
• Elaborate view window extension function for delicate analysis of waveform details and profile
• Automatic measurement of 28 kinds of waveform parameters
• Automatic cursor tracing and measurement function
• Unique waveform recording and playback functions
• Embedded FFT
• Multiple mathematical calculation functions (including +, -, X, ÷ ) for waveform
• Edge, video, pulse width and ALT Trigger functions
• Multi-language menu display
• Bandwidth 50MHz
• Sampling Rage: 500MSA/Sec.
• Storage Depth: 25k
• Record Length: Sampling Point of 2 x 521k
• Vertical Deflection: 1mV/div~5V/div

What's Included In This Package:

• 2 inactive probes of 1.2m and 1:1 (10: 1)
• 1 power chord to meet national standards
• 1 Operation Manual
• 1 Warranty Certificate
• Communication control software of DSO-5000E Oscilloscope
• USB connecting Cables: DSO-5150E / DSO-5200E :06 / DSO-5025E / DSO-5050E / DSO-5070E / DSO-5100: D05
