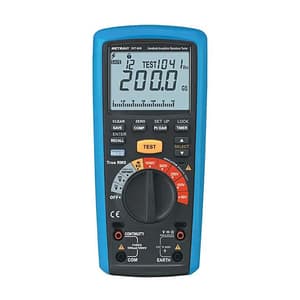

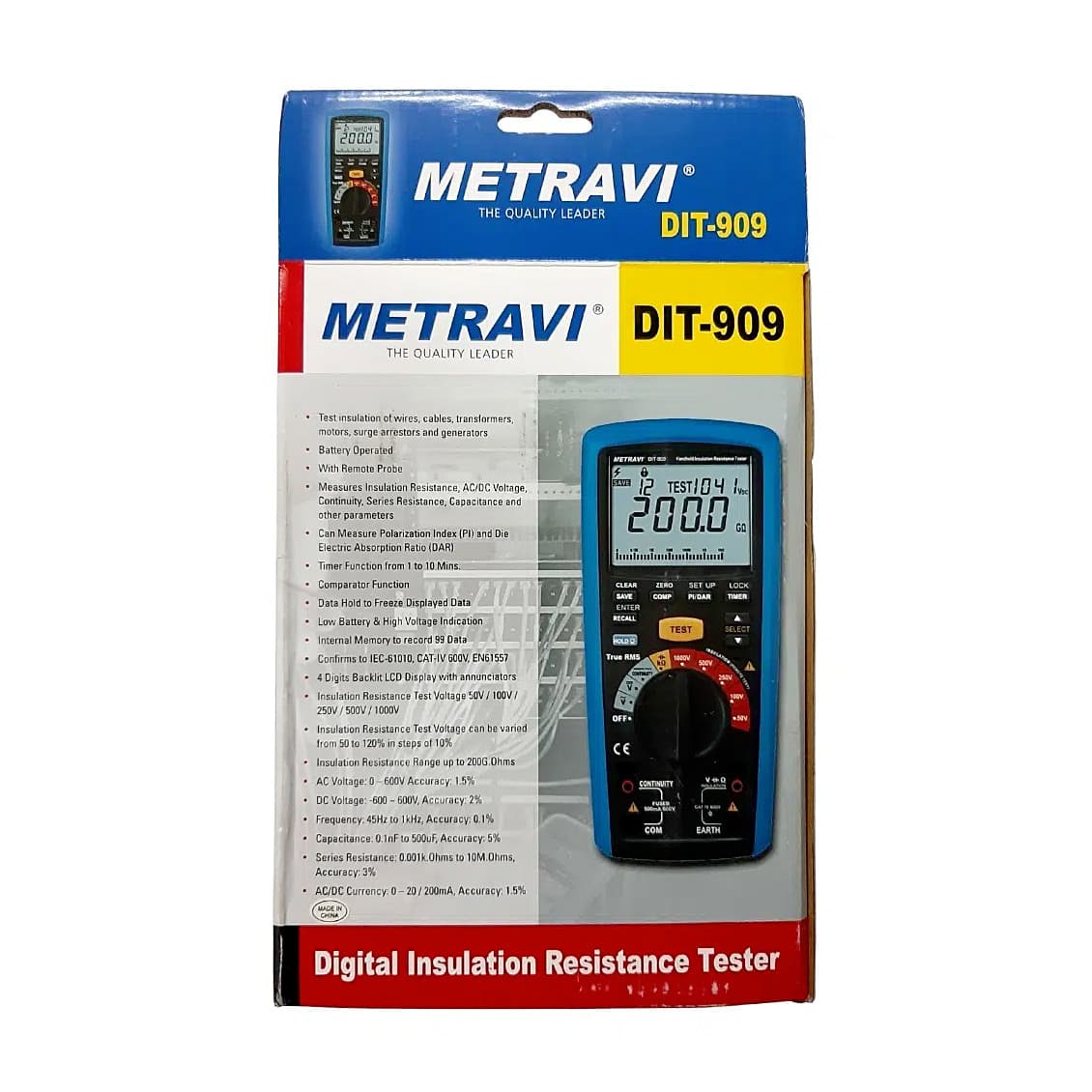

Metravi 50V - 1000V Digital Insulation Resistance Tester, DIT-909

9999 Counts Backlit LCD, Low Battery Indication, Data Hold, Timer Function up to 10mins, Comparator, 99 Data Records, USB PC Interface (optional). Test Voltage: 50V / 100V / 250V / 500V / 1000V, 200GΩ, AC Voltage T-RMS, DC Voltage, Frequency, Capacitance, Continuity Test, With Remote Probe, IP-54. DIT-909 a digital Insulation Resistance Testing Instrument.

The complete equipment is brand new degin with large-scale integrated circuit, accomplices measuring of Insulation Resistance, DC Voltage, AC Voltage, Continuity, Resistance Capacitance and other Parameters; it offers more complete function, higher accuracy, more stable performance, and more convenient & reliable operation. It’s application includes measuring IR on various electrical devices such as voltage transformer, motor, cable, switch, electrical appliance and insulation resistance for insulation materials, maintenance, testing and verification on variouse electrical device

Safety:

The instrument is designed and produced in strict accordance with GB4793 Safety Requirements for Electronic Measuring Apparatus and IEC61010-1, EN 61010-2-033 safety standard for double insulation over-voltage CAT IV 600V and pollution level II.

Features:

• Test insulation of wires, cables, transformers, motors, surge arrestors and generators
• Battery Operated
• Comparator Function
• USB PC Interface
• Measures PI and DAR
• Has Timer Function to set between 1-10min
• Locking Facility for measurement
• Full Self Test for internal evaluation
• Auto Power Off
• Data Hold
• Internal Memory to store 99 Readings
• Low Battery and High Voltage Indication
• Test Voltage can be varied from 50% to 120% in steps of 10%
• Test Voltage Range: 50V / 100V / 250V / 500V / 1000V
• Insulation Resistance Range: 0.01M.Ohms to 200G.Ohms
• Leakage Current measurement 10 – 2000uA
• Low Resistance: 0.01 to 100 Ohms
• General Resistance: 0.01k.Ohms to 1000k.Ohms
• DC Voltage: 0 – 600V DC
• AC Voltage: 0 – 600V AC T-RMS
• Frequency: 45 – 450Hz
• Capacitance: 100pF – 10uF
• With Remote Test Probe

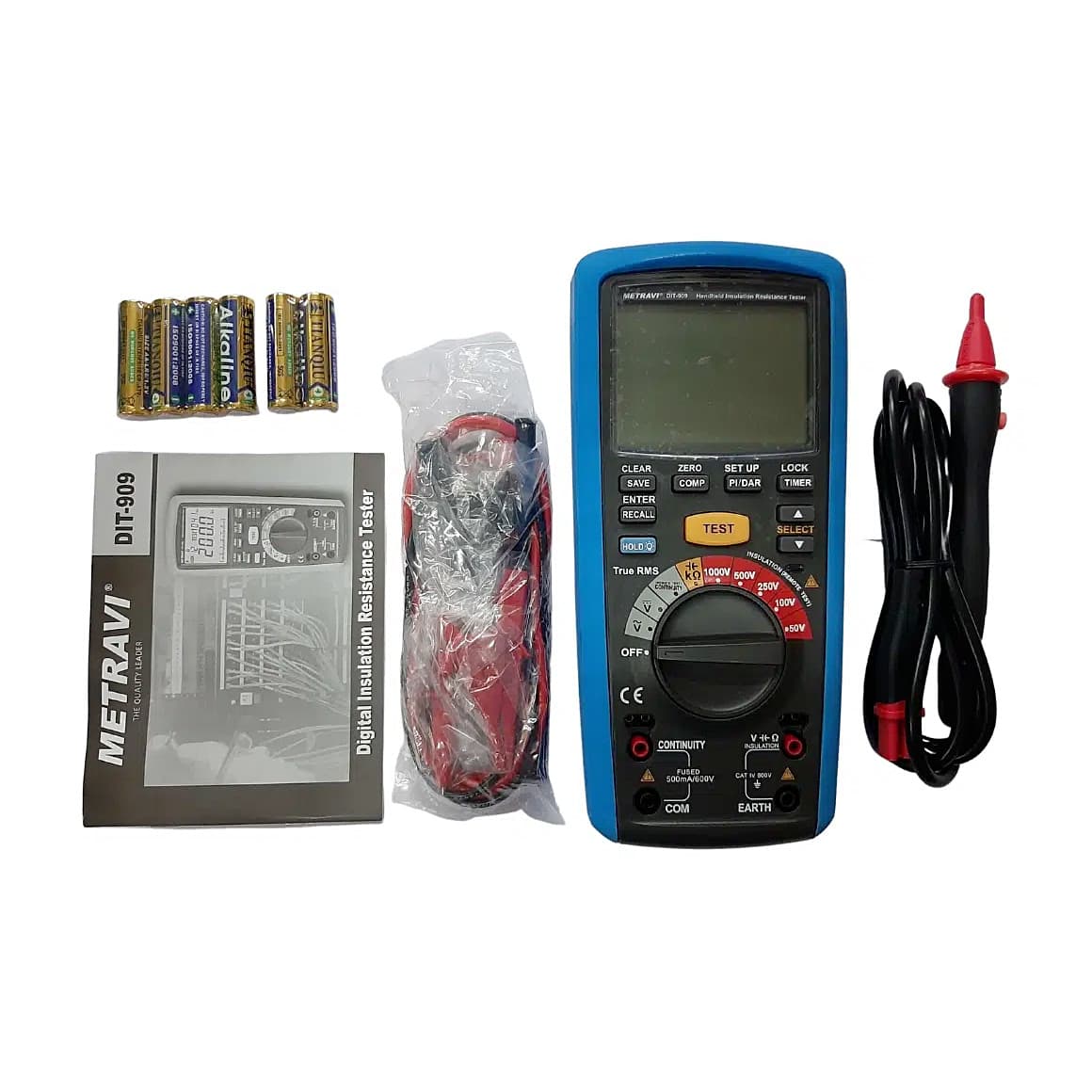

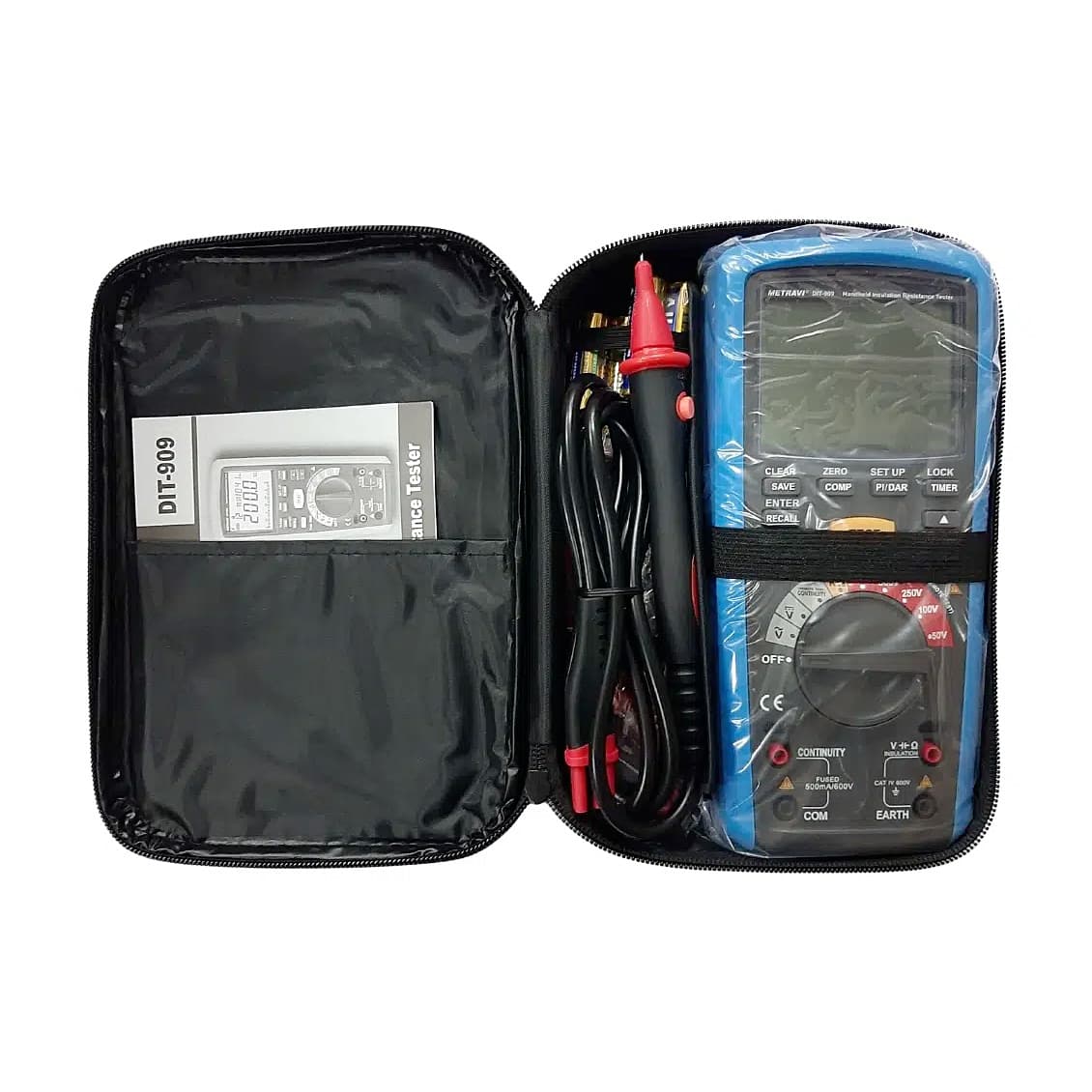

What's Included In This Package:

• Wire
• Alligator clip,
• 6 1.5V (No.5) alkaline batteries,
• Instructions & a carrying bag

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
