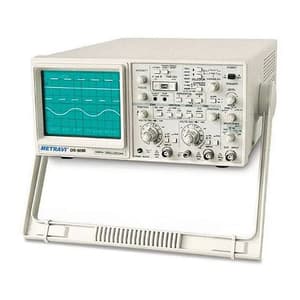

Metravi 60MHz Dual Channel Four Trace Cathode Ray Oscilloscope, OS-5060

60MHz Dual Channel Four Trace Cathode Ray Oscilloscope with 1:1 and 10:1 Probes

Features:

• Dual Channel Four Trace Oscilloscope
• Confirms to EN61010-1 (1993) and EN-IEC61326-1(1997)
• Waveforms are parallax-free with CRT’s internal graticule
• Alt Mag: The waveform (x1) and the x10 magnified waveforms can be displayed simultaneously
• Alt Trig: Stabilized triggering is accomplished with two unrelated signals
• TV Synchronization: Stable TV signals are displayed using new circuitry
• Auto Focus: Focus deviation is automatically corrected
• Vertical Deflection: 5mV/Div to 5V/Div in 1-2-5 sequence in 10 steps for both channels
• Input coupling system: AC-GND-DC
• Operation system: CH1, CH2, ADD and DUAL
• Time Base sweep Mode: x1, x5; x1, x5ALT
• Sweep Time: 0.1uS to 0.2S/iv in 20 calibrated steps of 1-2-5 sequence
• Sweep Expansion: 10ns/div to 20ms/div
• Alt Mag Trace: Maximum 4 traces
• Trigger Mode: AUTO, NORM, TV-V, TV-H
• Trigger Signal Source: INT, CH2, LINE, EXT
• X-Y Operation Mode: CH1, X-axis and CH2, Y-axis
• Calibration Signal: 0.5V Square wave of 1kHz

What's Included In This Package:

• Oscilloscope x1
• Probe x2
• Power Cord x1
• Instruction Manual x1
• Spare Fuses x2
