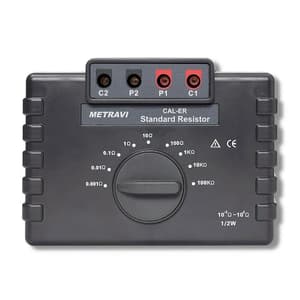

Metravi AC 3700V / rms Earth & Ground Tester Calibrator, CAL-ER

The Metravi CAL-ER Earth and Ground Tester Calibrator is used for calibrating grounding resistance testers, equipotential testers and other instruments which require a standard resistor.

It is widely used in building quality inspection stations, supervision companies, construction companies, lightning protection companies, electric power departments, etc.

Features:

• Connection: 4-wire method
• Insulation Resistance: 10MΩ above(between the circuit and shell 500V)
• Safety Standards: IEC61010-1,CAT ? 600V,Polluted Gradation
• The military grade instrument is composed of 9 pieces of 1/2w, high-precision, military-grade wire- wound resistors.

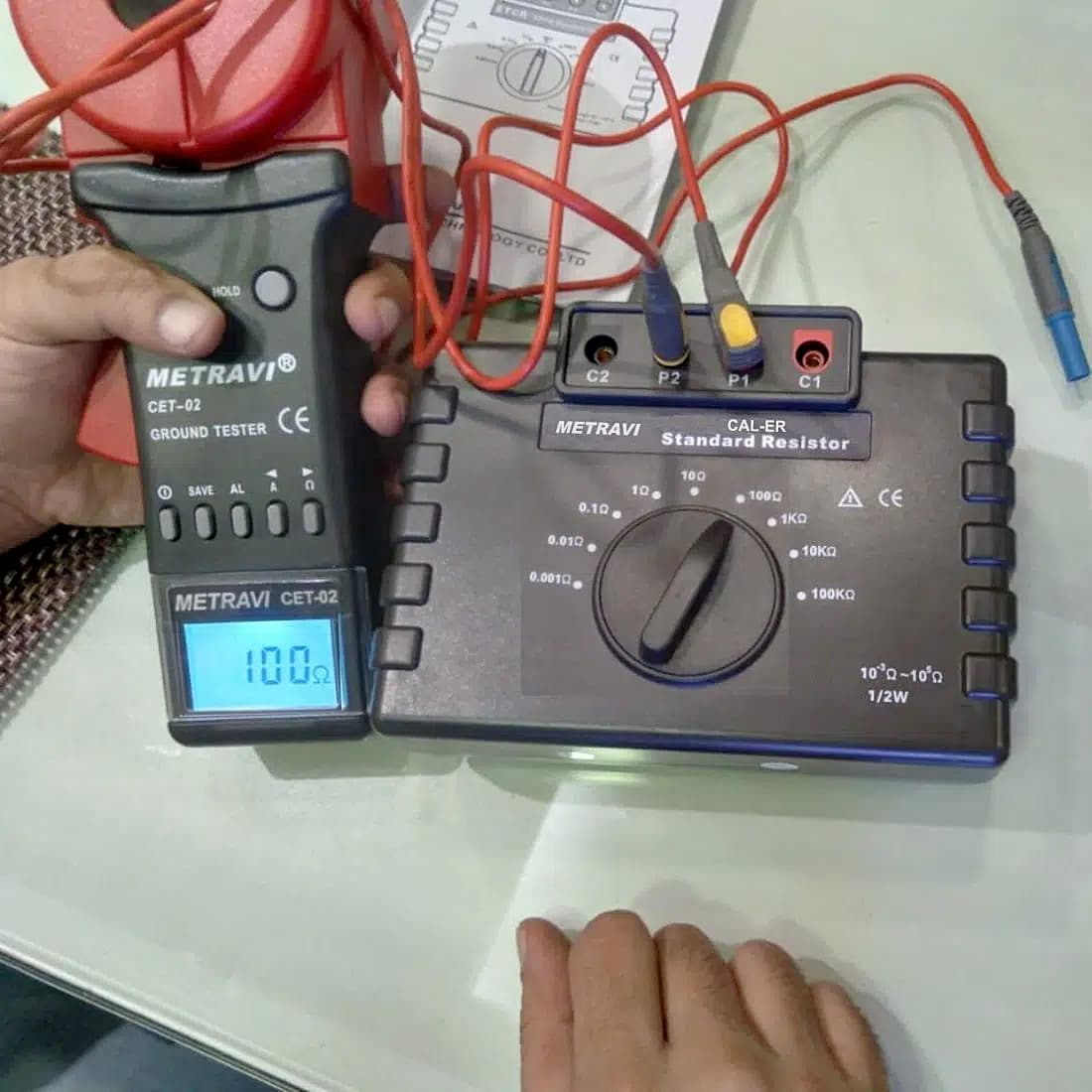

• It has stable performance and strong structure, especially convenient for calibration & testing. When calibrating resistors, one can direct shift and test without replacing the test line.
• Fully meets the national weather service order "lightning protection device detection qualification management approach" specified in the range of 10-3 ~ 105 Ω.

Range & Accuracy:

• 0.001Ω; 2%
• 0.01Ω; 0.5%
• 0.1Ω; 0.2%
• 1.0Ω; 0.2%
• 10Ω; 0.05%
• 100Ω; 0.05%
• 1KΩ; 0.05%
• 10KΩ; 0.05%
• 100KΩ; 0.05%

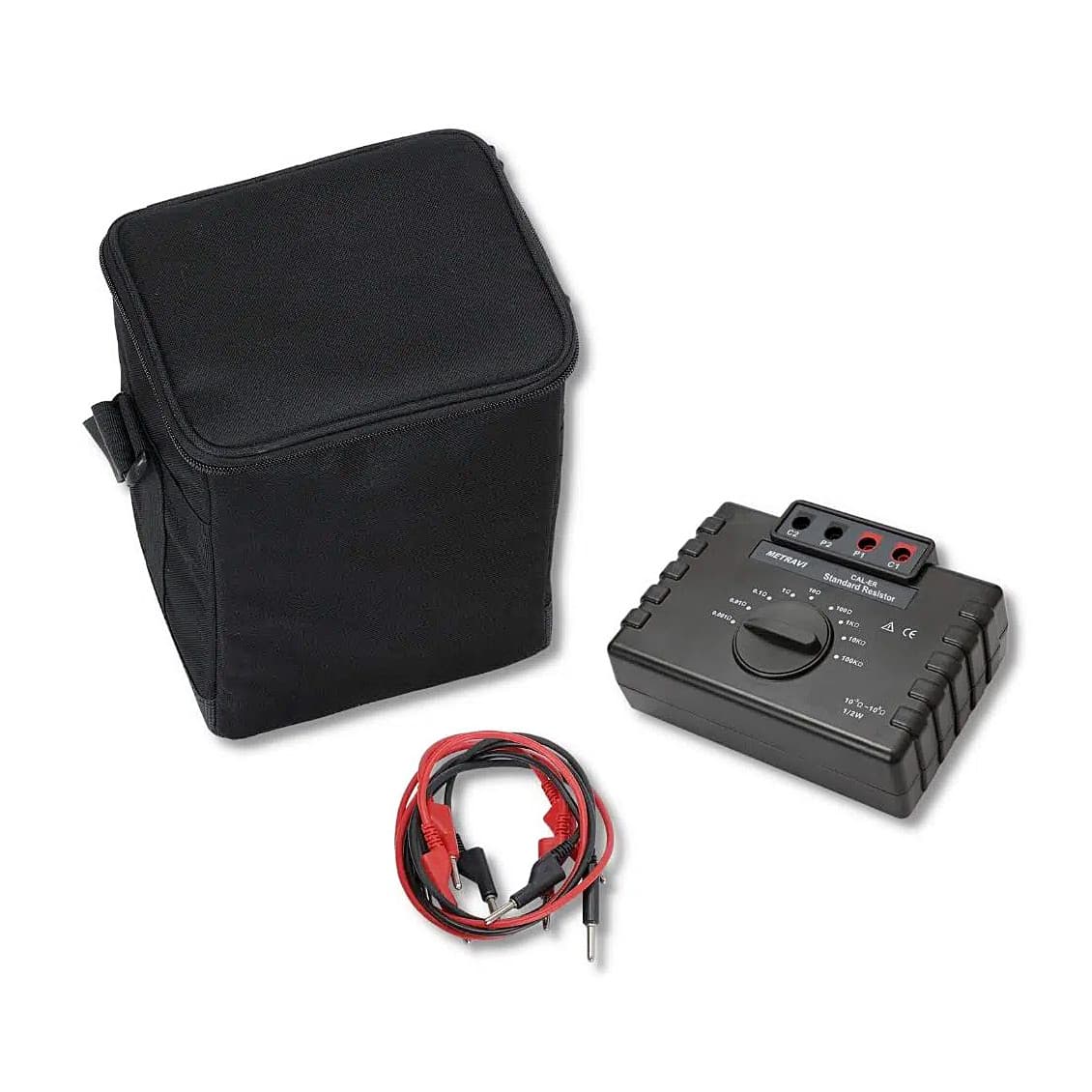

What's Included In This Package:

• Meter
• Test Leads (2 Black, 2 Red)
• Carry Bag
• User Manual
• Test Certificate


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
