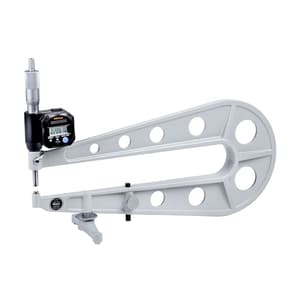

Mitutoyo 0 - 1 inch Digital Sheet Metal Micrometer (Type A), 389-714
Roll over the image to zoom in
Key Features
- Product Type: Sheet Metal Micrometers
- Weight: 2.75 kg
- Range (Inches): 0 - 1 inch
- Throat Depth (inch): 12 inch
- Anvil Type: A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹54,905 (Incl. of all taxes)
₹46,530 + ₹8,375 GST (18%)
MRP was MRP ₹62,040
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The extra-deep frame 12-inch enables measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard deep-frame micrometer. A ratchet stop guarantees repeatable measurement. Digimatic data output.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures the Thickness of Sheet Metal.
- Equipped with Ratchet Stop for constant Measuring Force.
Functions:
- 2x PRESET
- ABS / INC (INC ZERO)
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low-voltage alarm
- ORIGIN

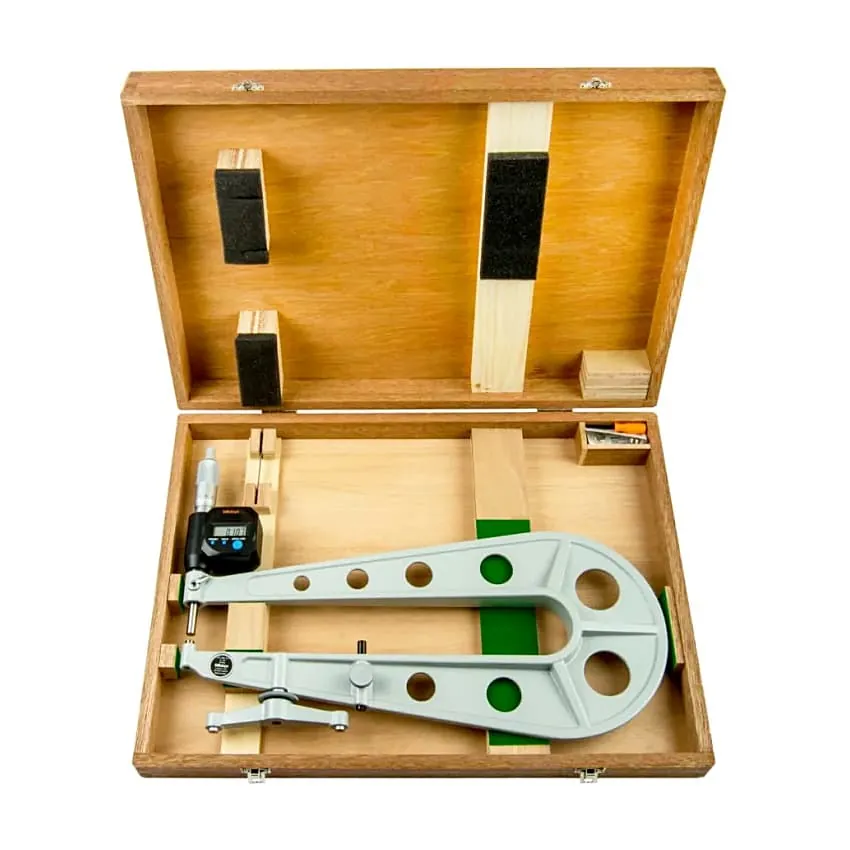

Package Content:
- Sheet Metal Micrometer
- Spanner
- 2x SR44 Battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 0 - 1 inch |
|---|---|
| Resolution | 0.00005 inch / 0.001 mm |
| Max. Permissible Error JMPE (inch) | ±0.00025 inch |
| Throat Depth (inch) | 12 inch |
| Measuring Surface | Flat-Flat |
| Flatness | 0.00004 inch |
| Anvil Type | A |
| Measuring Face | Carbide-tipped |
| Measuring Force | 10 - 14 |
| Parallelism | 0.00012 inch |
| Material Finishing | Thimble & Sleeve Satin Chrome Finish |
| Display | LCD (Character Height 7.5 mm) |
| Power Supply | 2x SR44 Battery |
