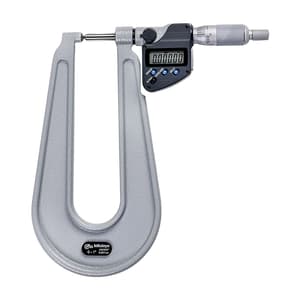

Mitutoyo 0 - 1 inch Digital Sheet Metal Micrometer (Type C), 389-371-30
Roll over the image to zoom in
Key Features
- Product Type: Sheet Metal Micrometers
- Weight: 840 g
- Range (Inches): 0 - 1 inch
- Throat Depth (inch): 6 inch
- Anvil Type: C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹29,710 (Incl. of all taxes)
₹25,178 + ₹4,532 GST (18%)
MRP was MRP ₹33,570
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures the Thickness of Sheet Metal.
- Equipped with Ratchet Stop for constant Measuring Force.
Functions:
- 2x PRESET
- ABS / INC (INC ZERO)
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low-voltage alarm
- ORIGIN

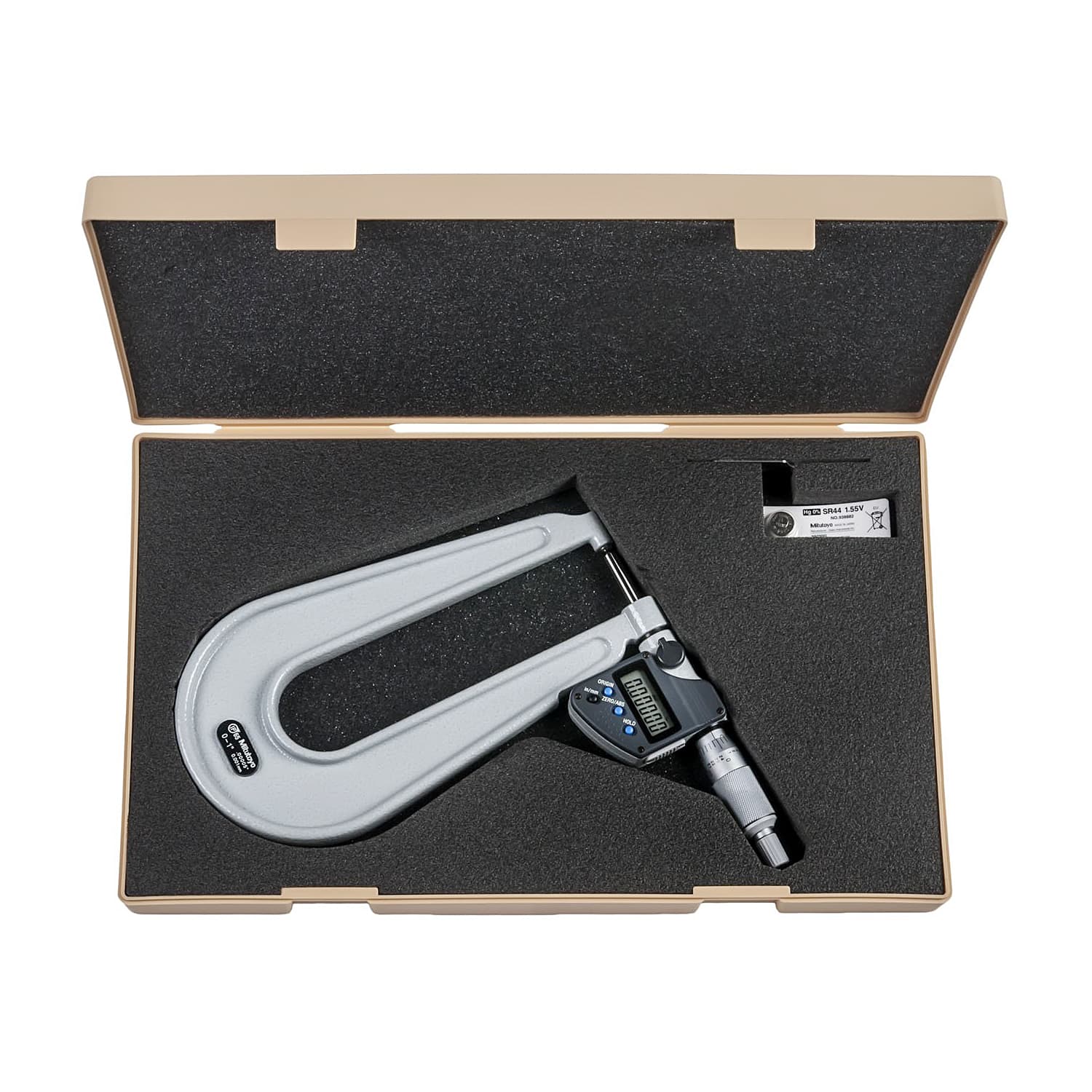

Package Content:
- Sheet Metal Micrometer
- Spanner
- 1x SR44 battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 0 - 1 inch |
|---|---|
| Resolution | 0.00005 inch / 0.001 mm |
| Max. Permissible Error JMPE (inch) | ±0.0002 inch |
| Throat Depth (inch) | 6 inch |
| Measuring Surface | Spherical-Spherical |
| Flatness | 0.000024 inch |
| Anvil Type | C |
| Measuring Face | Carbide-tipped |
| Parallelism | 0.00012 inch |
| Material Finishing | Thimble & Sleeve Satin Chrome Finish |
| Display | LCD (Character Height 7.5 mm) |
| Power Supply | 1x SR44 Battery |
| IP Rating | IP65 (Dust & Water Protected) |
