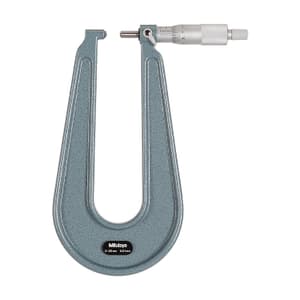

Mitutoyo 0 - 25 mm Sheet Metal Micrometer (Type C), 118-118
Roll over the image to zoom in
Key Features
- Product Type: Sheet Metal Micrometers
- Weight: 740 g
- Range (mm): 0 - 25 mm
- Throat Depth (mm): 150 mm
- Anvil Type: C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,603 (Incl. of all taxes)
₹9,833 + ₹1,770 GST (18%)
MRP was MRP ₹13,110
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a spherically radiused spindle-end and anvil and a deep frame to enable measurement of sheet metal thickness further from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures the Thickness of Sheet Metal.
- Equipped with Ratchet Stop for constant Measuring Force.

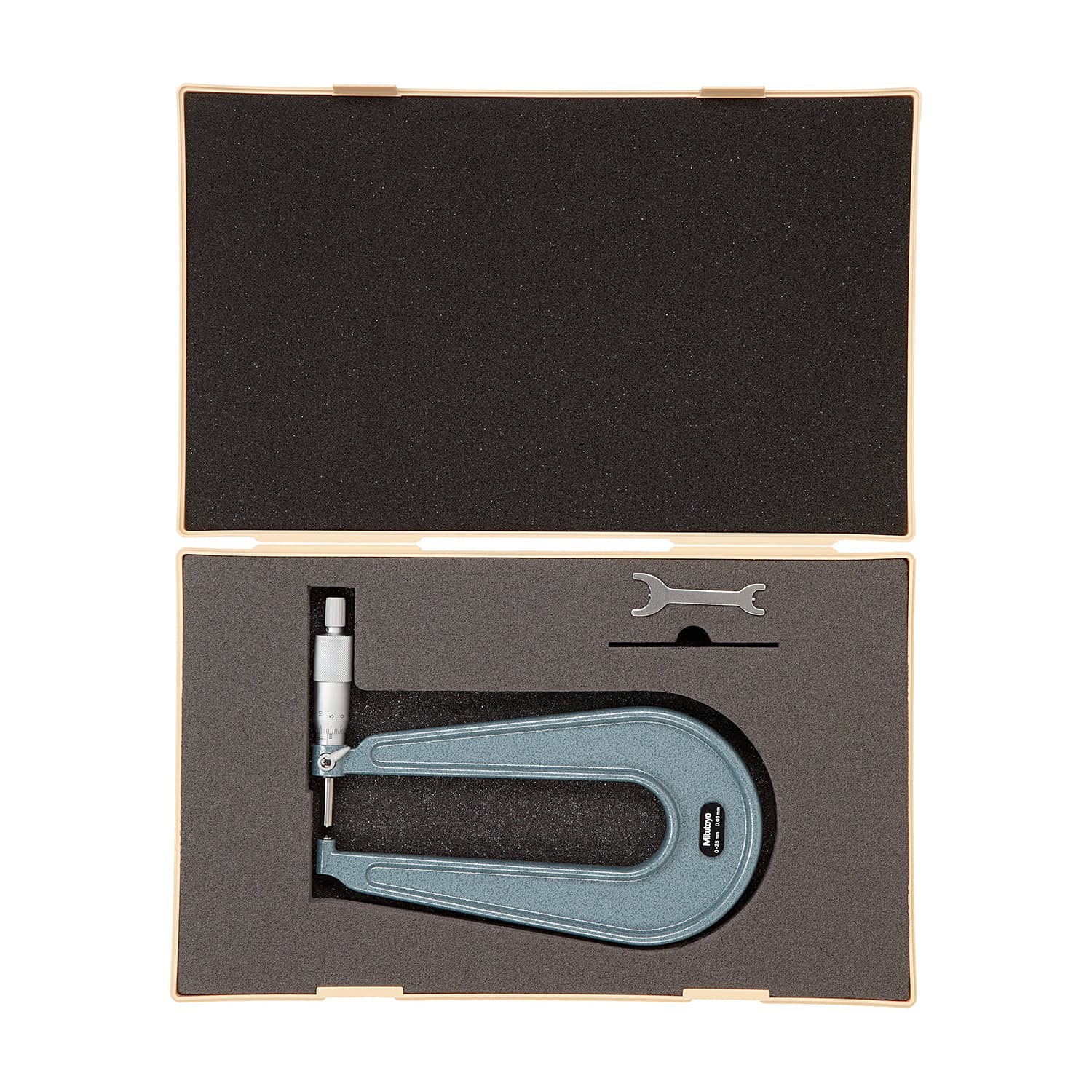

Package Content:
- Sheet Metal Micrometer
- Spanner

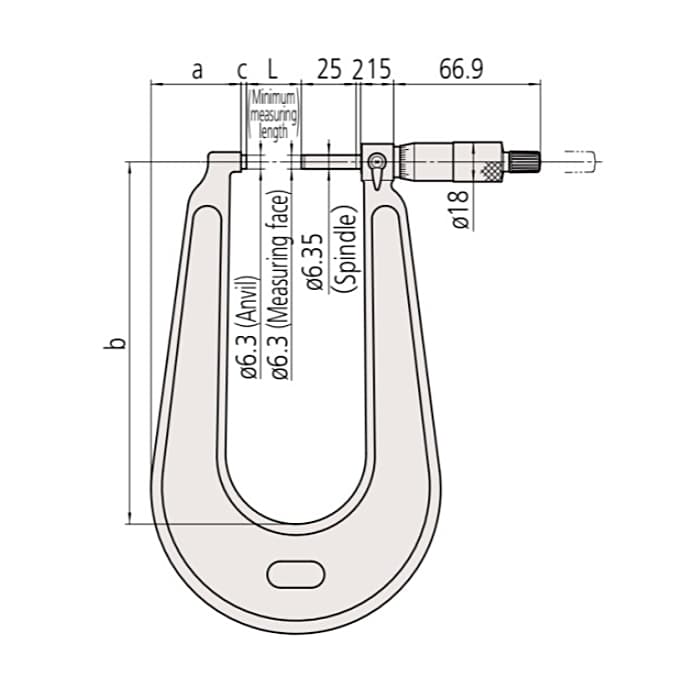

Dimension Measurement (mm)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Graduation | 0.01 mm |
| Max. Permissible Error JMPE (μm) | ±4μm |
| Throat Depth (mm) | 150 mm |
| Measuring Surface | Spherical-Spherical |
| Flatness | 0.6μm |
| Anvil Type | C |
| Measuring Face | Carbide-tipped |
| Parallelism | 3 μm |
| Material Finishing | Thimble & Sleeve Satin Chrome Finish |
