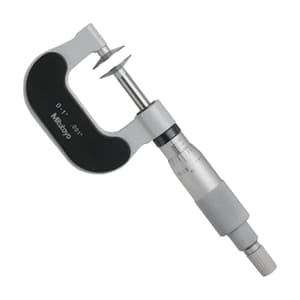

Mitutoyo 0 - 1 inch Non-Rotating Spindle Disk Micrometer, 169-203-10
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Weight: 230 g
- Range (Inches): 0 - 1 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,621 (Incl. of all taxes)
₹11,543 + ₹2,078 GST (18%)
MRP was MRP ₹15,390
Save 25%
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Disc Micrometer has a non-rotating spindle and allows you to measure a range of different materials.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
- A non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- It‘s suitable for measuring materials such as felt, rubber, cardboard & fabric.
Package Content:
- Disc Micrometer
- Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 0 - 1 inch |
|---|---|
| Graduation | 0.001 inch |
| Max. Permissible Error JMPE | ±0.0002 inch |
| Anvil Dia | 0.787 inch |
| Flatness | 0.00004 inch |
| Parallelism | 0.0002 inch |
| Measuring Force | 3 - 8 N |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
| Measuring Face | Hardened Steel, Micro-lap Finish |
