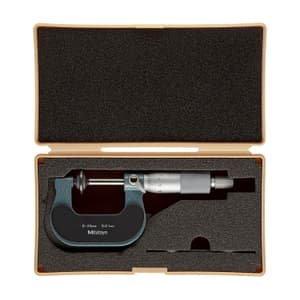

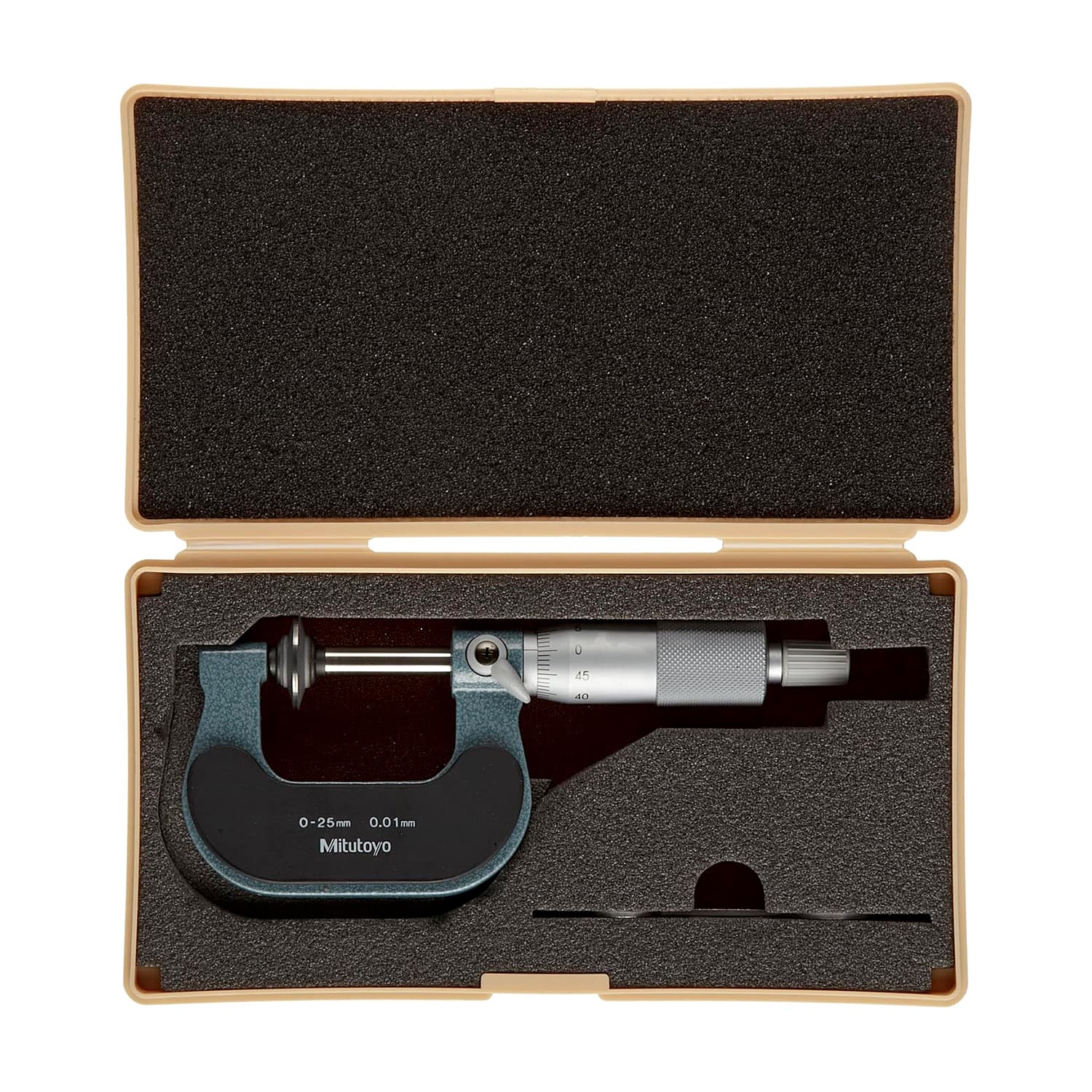

Mitutoyo 0 - 25 mm Disk Micrometer with Carbide Tips, 123-113
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Weight: 200 g
- Range (mm): 0 - 25 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,134 (Incl. of all taxes)
₹18,758 + ₹3,376 GST (18%)
MRP was MRP ₹25,010
Save 25%
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
- Measuring the root tangent length of spur and helical gears.
- You can measure recessed features that are difficult to reach with a standard micrometer.

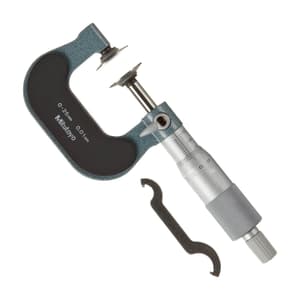

Package Content:
- Disc Micrometer
- Spanner

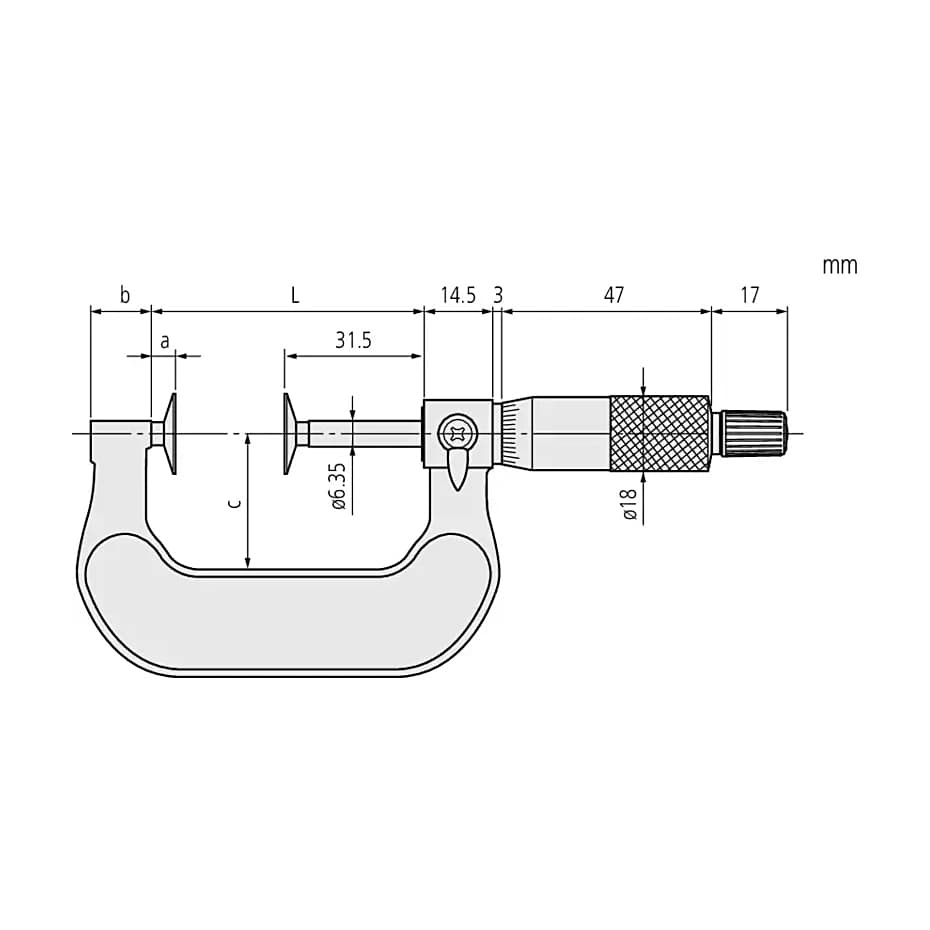

Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Graduation | 0.01 mm |
| Max. Permissible Error JMPE (μm) | ±4μm |
| Anvil Dia (mm) | Ø20 mm |
| Measurable Module | 0.5 - 6 mm |
| Flatness | 1μm |
| Parallelism | 4μm |
| Measuring Force | 5 - 10 |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
