Mitutoyo 0 - 15 mm ABSOLUTE Digital Disk Micrometer with Quickmike Adjustable Measuring Force, 227-221-20
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Weight: 300 g
- Range (mm): 0 - 15 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹66,986 (Incl. of all taxes)
₹56,768 + ₹10,218 GST (18%)
MRP was MRP ₹75,690
Save 25%
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
The ABSOLUTE Digimatic Disc Micrometer Quickmike allows you to measure with a fast spindle feed of 10 mm per thimble rotation.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Suitable for measuring felt, rubber, cardboard, fabric etc.
- Suitable to measure "root tangent length" of spur gears and helical gears.
- With a non-rotating spindle and disc-shaped measuring surface.
- Measuring force is adjustable for various kinds of workpieces.
Functions:
- ABS / INC (INC ZERO)
- HOLD
- Low-voltage alarm
- ON/OFF
- ORIGIN
Package Content:
- ABSOLUTE Digital Disk Micrometer
- Screwdriver
- 1x SR44 Battery

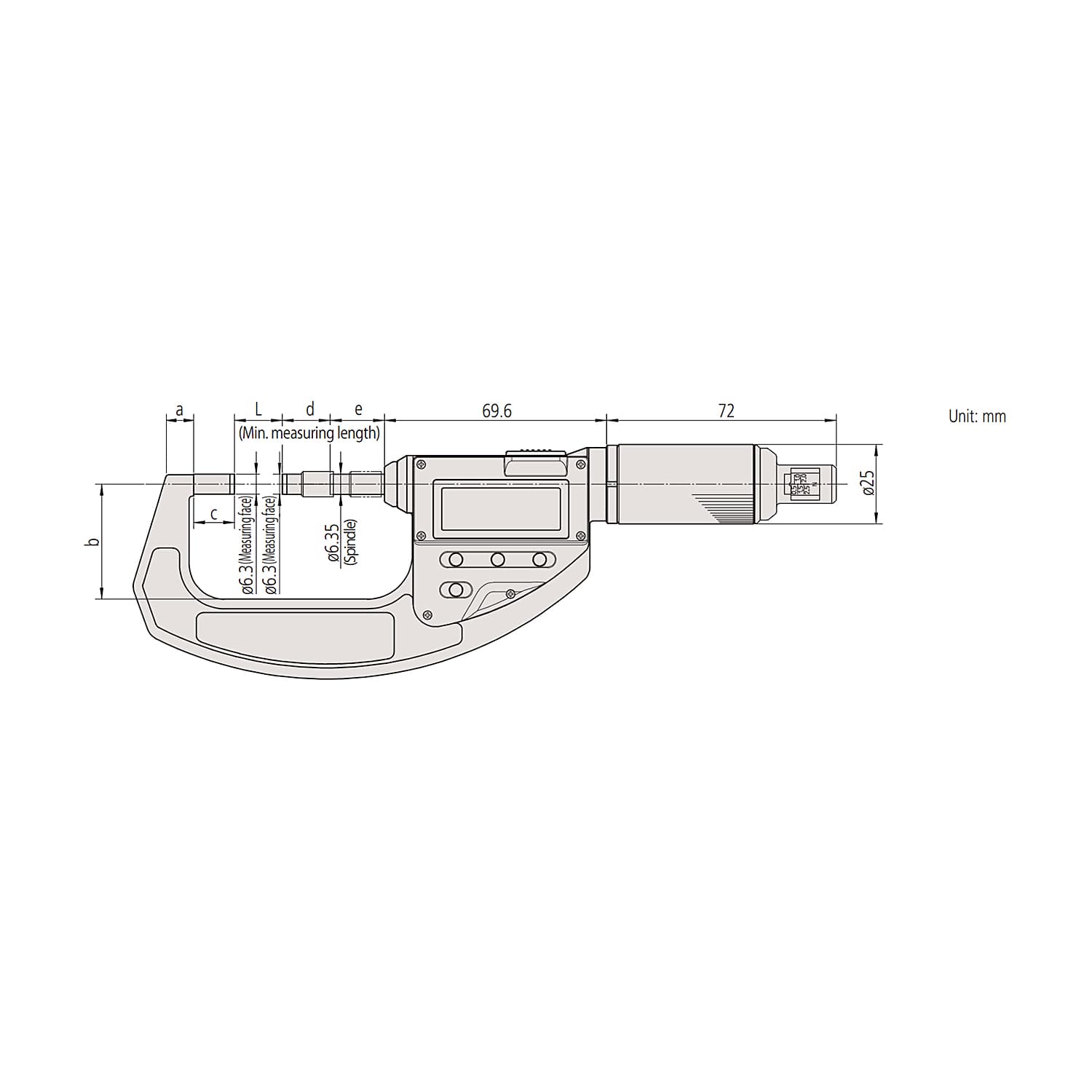

Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 15 mm |
|---|---|
| Resolution | 0.001 mm |
| Max. Permissible Error JMPE (μm) | ±4μm |
| Anvil Dia (mm) | Ø14.3 mm |
| Flatness | 1μm |
| Parallelism | 3μm |
| Measuring Force | 0.5, 1.0, 1.5, 2.0 & 2.5 N |
| IP Rating | IP65 |
| Display | LCD, Character Height 10 mm |
| Measuring Force Accuracy | ±0.1 + (Force Setting/10) |
| Power Supply | 1x Battery SR-44 |
| Measuring Face | Hardened Steel, Micro-lap Finish |
