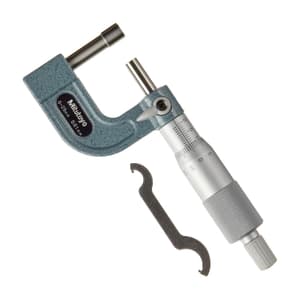

Mitutoyo 0 - 25 mm Cylindrical Anvil Tube Micrometer (Type D), 115-316
Roll over the image to zoom in
Key Features
- Product Type: Tube Micrometer
- Weight: 180 g
- Range (mm): 0 - 25 mm
- Graduation (mm): 0.01 mm

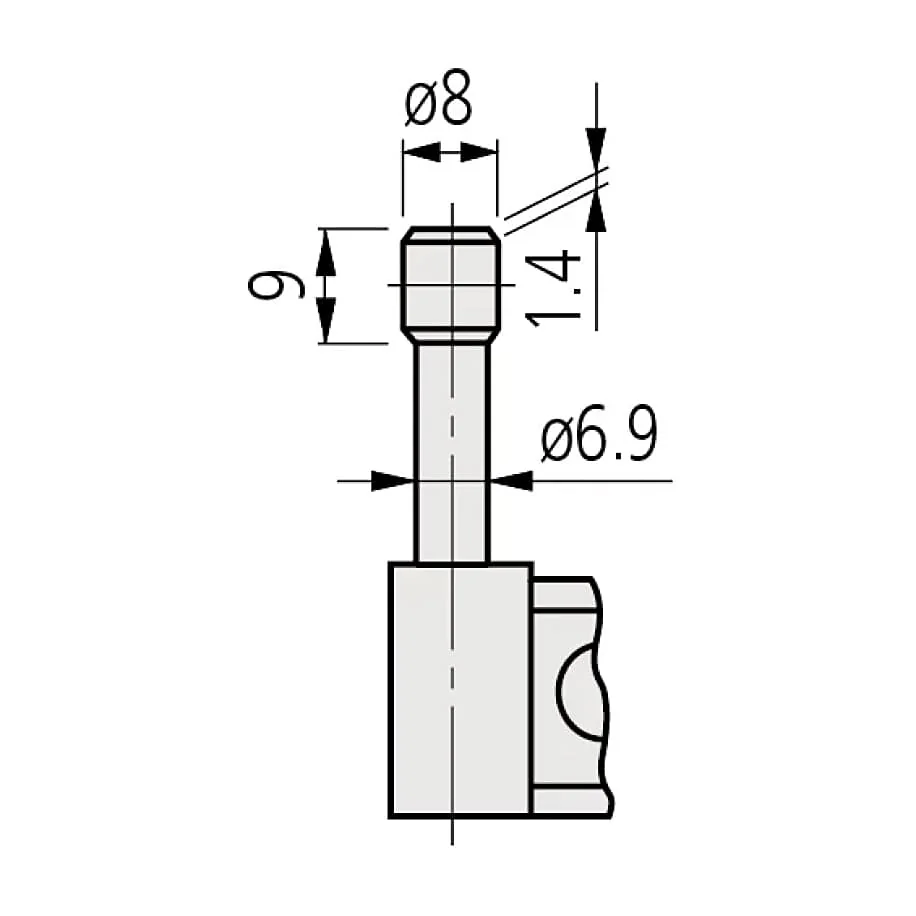

- Anvil / Spindle: Type D (Cylindrical Pin D=8 mm / Flat Spindle)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,230 (Incl. of all taxes)
₹5,280 + ₹950 GST (18%)
MRP was MRP ₹7,040
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

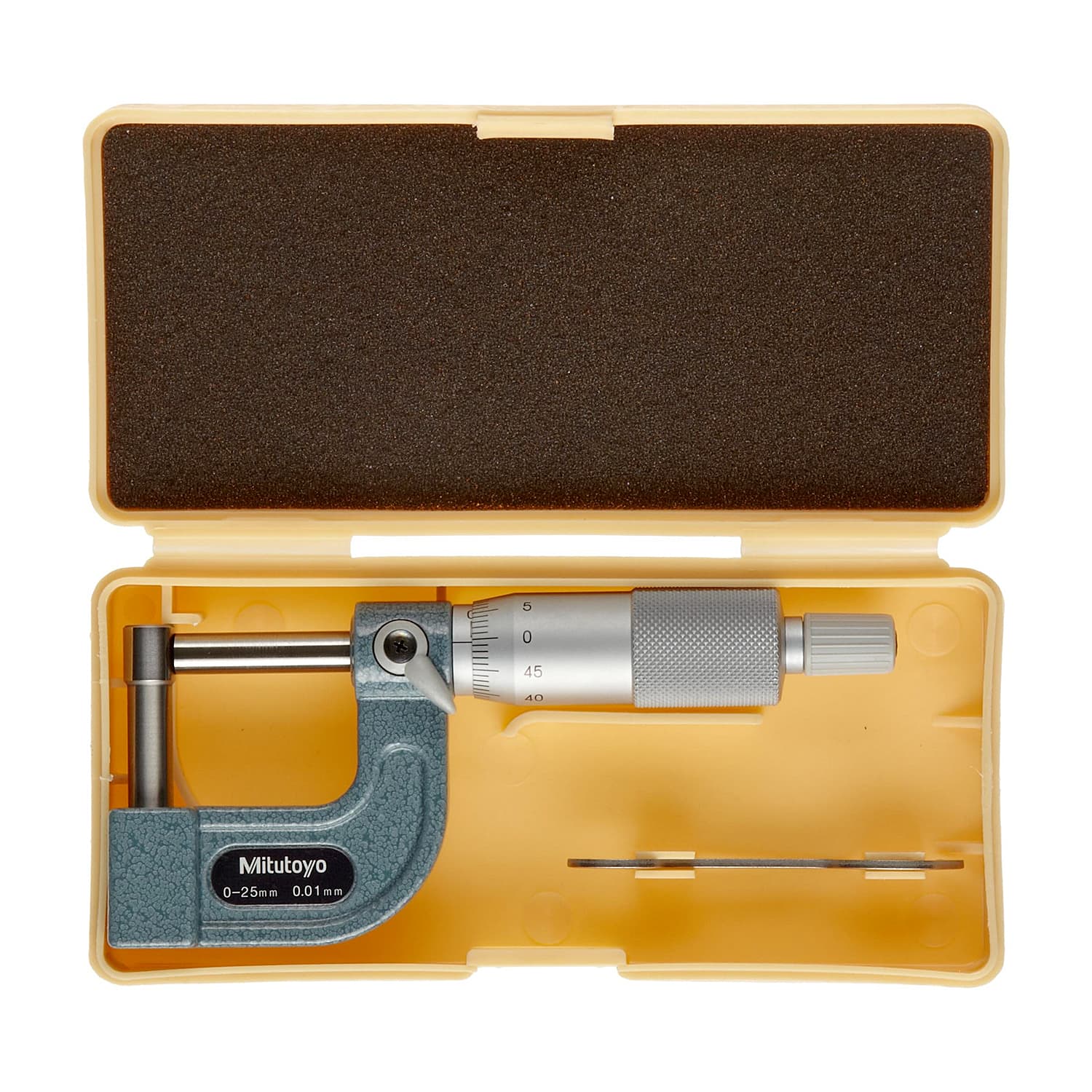

Package Content:
- Tube Micrometer
- Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JPME) | ±3μm |
| Measuring Force | 3 - 8 |
| Anvil / Spindle | Type D (Cylindrical Pin D=8 mm / Flat Spindle) |
| Measuring Spindle | With Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Measuring Face | Spindle: Carbide-tipped, Micro-lap Finish Anvil: Hardened Steel |
