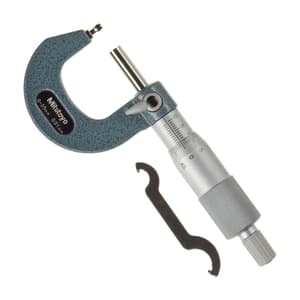

Mitutoyo 0 - 25 mm Spherical Anvil Tube Micrometer (Type B), 115-308
Roll over the image to zoom in
Key Features
- Product Type: Tube Micrometer
- Weight: 180 g
- Range (mm): 0 - 25 mm
- Graduation (mm): 0.01 mm
- Anvil / Spindle: Type B (Spherical Pin D=3.5 mm / Flat Spindle)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,196 (Incl. of all taxes)
₹4,403 + ₹793 GST (18%)
MRP was MRP ₹5,870
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital tube micrometer equipped with a spherical anvil on a post for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Vertical anvil for measuring tubing wall thickness.
- Vernier scale in metric units for taking precise outside diameter (OD) measurements.
- Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements.
- Baked enamel finish for protection and durability of frame.
- Carbide facing on spindle and anvil provides wear resistance

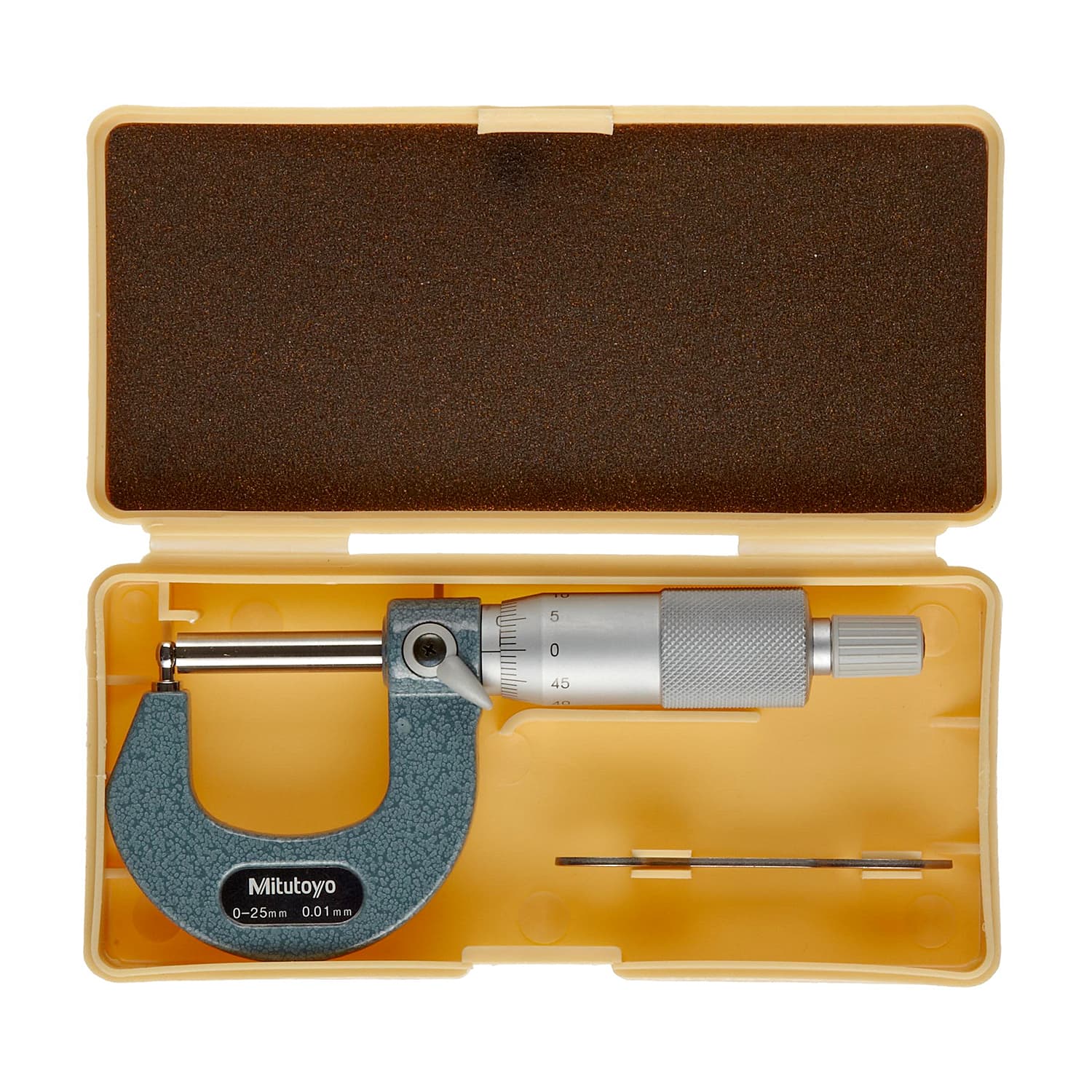

Package Content:
- Tube Micrometer
- Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JPME) | ±3μm |
| Measuring Force | 5 - 10 |
| Anvil / Spindle | Type B (Spherical Pin D=3.5 mm / Flat Spindle) |
| Measuring Spindle | With Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Measuring Face | Spindle: Carbide-tipped, Micro-lap Finish Anvil: Hardened Steel |
