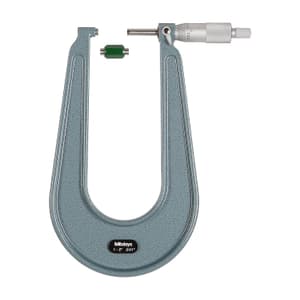

Mitutoyo 1 - 2 inch Sheet Metal Micrometer (Type A), 118-112
Roll over the image to zoom in
Key Features
- Product Type: Sheet Metal Micrometers
- Weight: 820 g
- Range (Inches): 1/2 Inch
- Throat Depth (inch): 6 inch
- Anvil Type: A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,435 (Incl. of all taxes)
₹10,538 + ₹1,897 GST (18%)
MRP was MRP ₹14,050
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures the Thickness of Sheet Metal.
- Equipped with Ratchet Stop for constant Measuring Force.

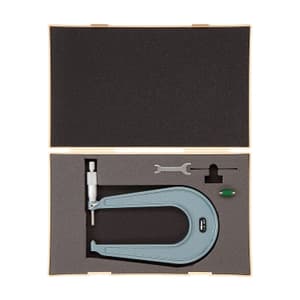

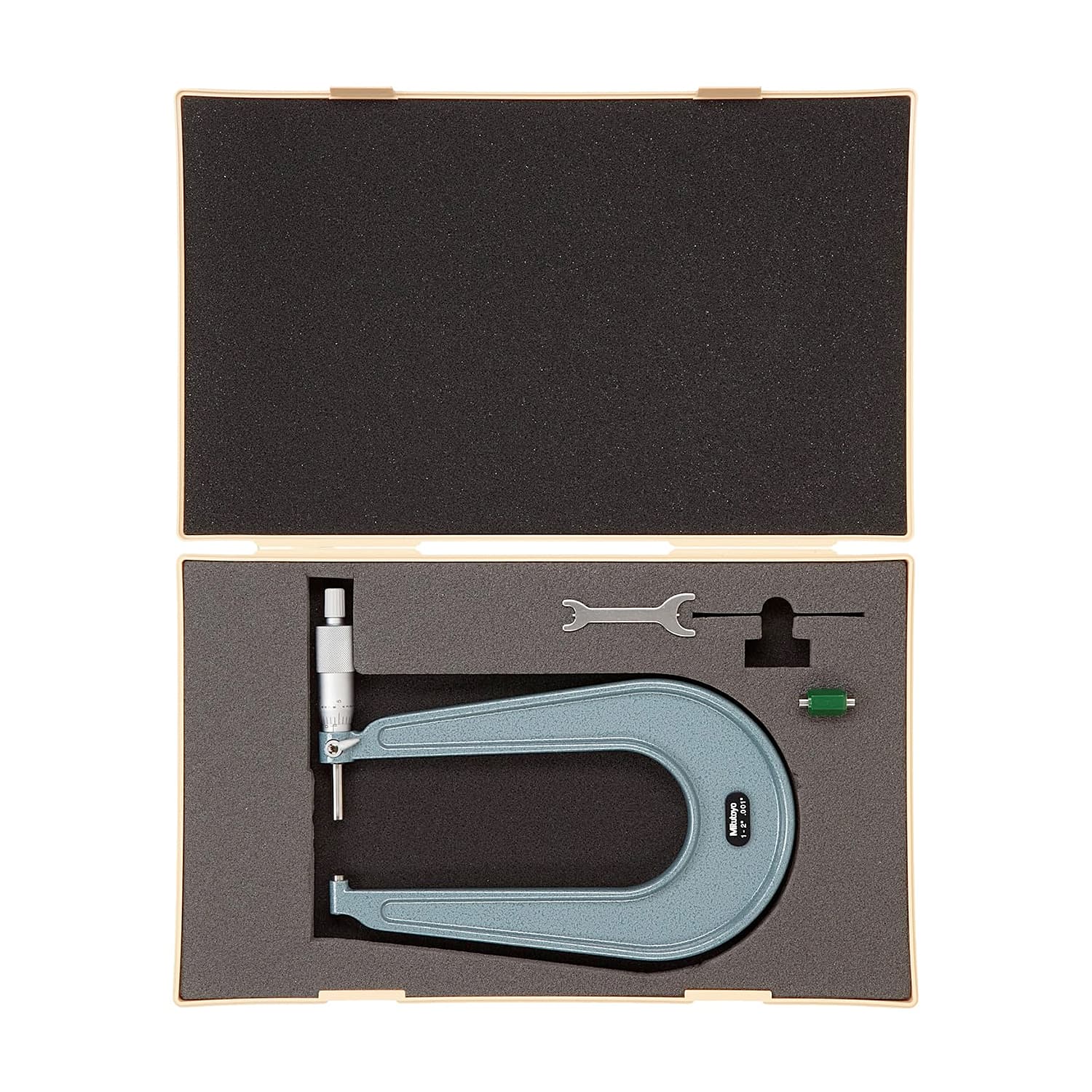

Package Content:
- Sheet Metal Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 1/2 Inch |
|---|---|
| Graduation | 0.001 inch |
| Max. Permissible Error JMPE (inch) | ±0.0002 inch |
| Throat Depth (inch) | 6 inch |
| Measuring Surface | Flat-Flat |
| Flatness | 0.6μm |
| Anvil Type | A |
| Parallelism | 0.00012 inch |
| Measuring Force | 3 - 8 |
| Measuring Face | Carbide-tipped |
| Material Finishing | Thimble & Sleeve Satin Chrome Finish |
