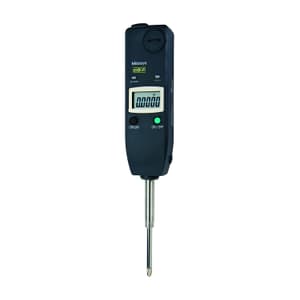

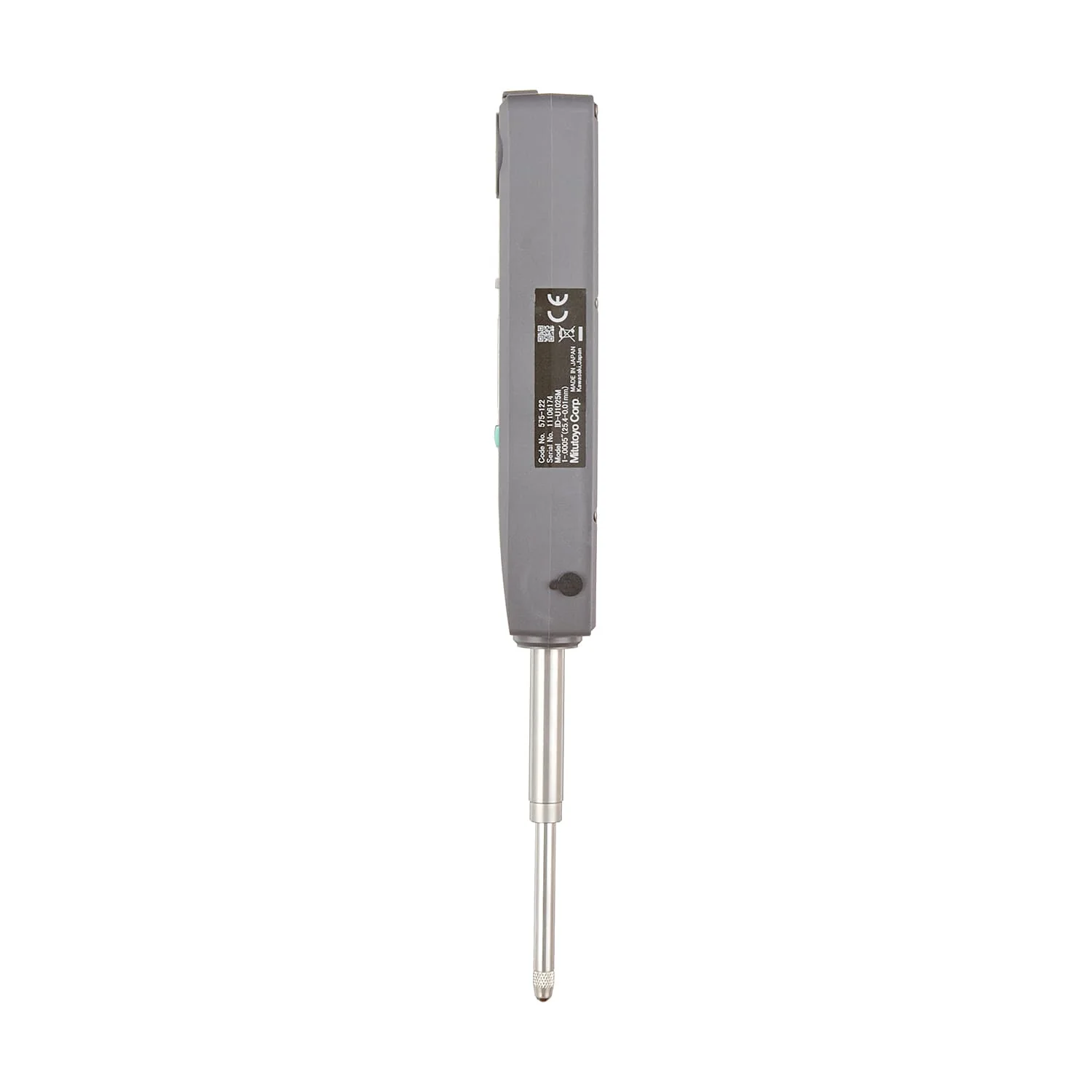

Mitutoyo 25.4 mm / 1 inch ABSOLUTE Digital Indicator - ID-U Series (ISO/JIS Type), 575-122

An economical, slim-style Mitutoyo digital indicator with an extemely long battery life suited to installation in measuring jigs where access may be restricted. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

Features:

• Slim digital indicator with low price.
• Large LCD and simple key operation.
• After the initial origin setting, the ID-U no longer needs absolute positioning over entire battery life; the origin is remembered even after power-off.
• Ideal for installation into measuring devices because of compact design and long battery life.
• Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
• Flat back type only has no option for backs.
• Alarm: Low voltage, sensor error, ABS data composition error
• Remarks: This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
• Digital Scale: Electrostatic capacitance type absolute linear encoder

Functions:

• Counting direction switchable
• Digimatic data output
• Inch/Metric switchable
• ON/OFF
• ORIGIN (ABS-Zero)

Package Content:

• Digital Indicator
• 1x SR44 battery
• spindle lifting handle (137693)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
