Mitutoyo 25 - 50 mm Spherical Anvil Tube Micrometer (Type F), 115-216
Roll over the image to zoom in
Key Features
- Product Type: Tube Micrometer
- Weight: 240 g
- Range (mm): 25 - 50 mm
- Graduation (mm): 0.01 mm
- Anvil / Spindle: Type F (Spherical Anvil & Spindle SR=4 mm)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,257 (Incl. of all taxes)
₹4,455 + ₹802 GST (18%)
MRP was MRP ₹5,940
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital tube micrometer equipped with spherical anvil and spindle tip for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Carbide-tipped spindle and anvil ensure durability and wear resistance.
- Ratchet-stop mechanism provides uniform measuring pressure for accuracy.
- Specially designed for checking wall thickness across various tubing types.

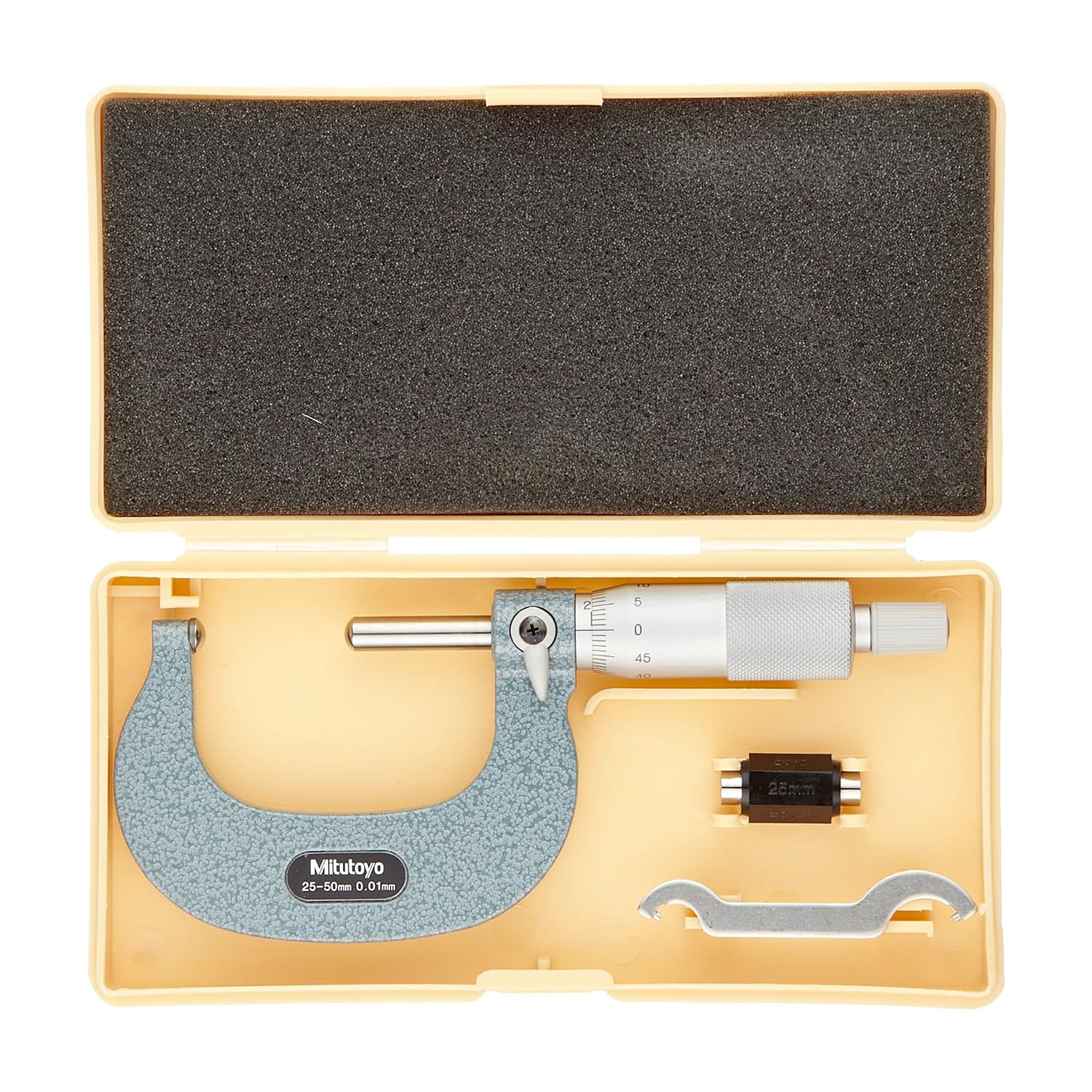

Package Content:
- Tube Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JPME) | ±3μm |
| Diameter (mm) | Ø11 mm |
| Measuring Force | 5 - 10 |

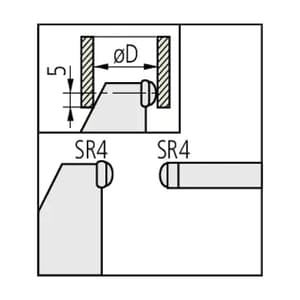

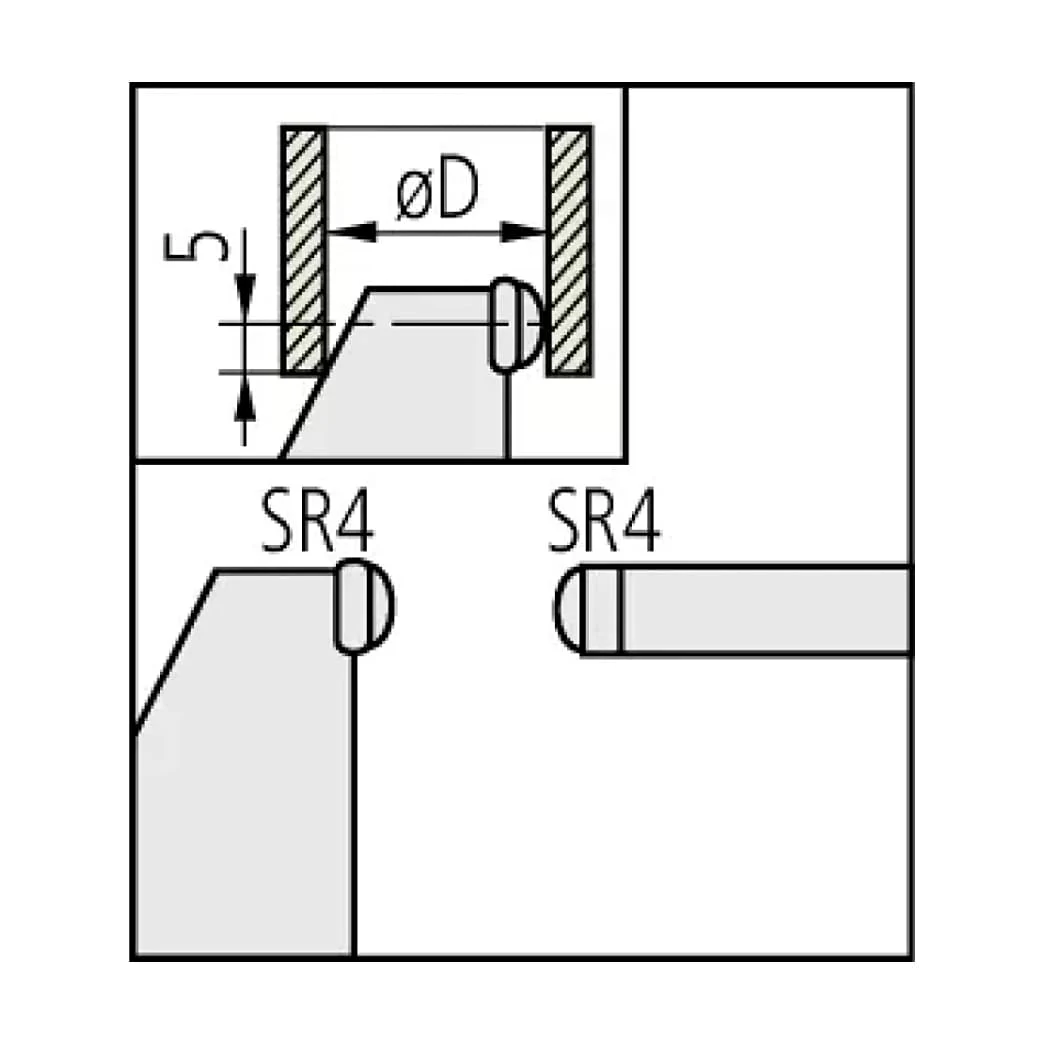

| Anvil / Spindle | Type F (Spherical Anvil & Spindle SR=4 mm) |
| Measuring Spindle | With Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
