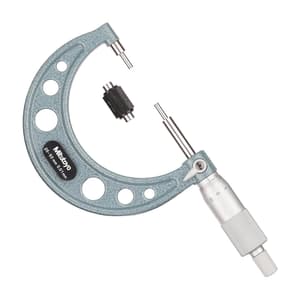

Mitutoyo 25 - 50 mm Spline Micrometer (Type A), 111-116

A Mitutoyo non-digital micrometer provided with a spindle and anvil reduced in diameter to enable measurement within slotted features, such as keyways. A ratchet stop guarantees repeatable measurement.

Features:

• The anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
• Equipped with a Ratchet Stop for constant measuring force.
• Slim anvil and spindle design, ideal for measuring splined shafts, keyways, and narrow slots.
• Equipped with a metric vernier scale for highly accurate outside diameter (OD) readings.
• Ratchet-stop feature ensures consistent measuring pressure for reliable, repeatable results.
• Durable frame with baked enamel coating for long-lasting protection against wear.
• Spindle and anvil surfaces reinforced with carbide tips for enhanced resistance to abrasion.

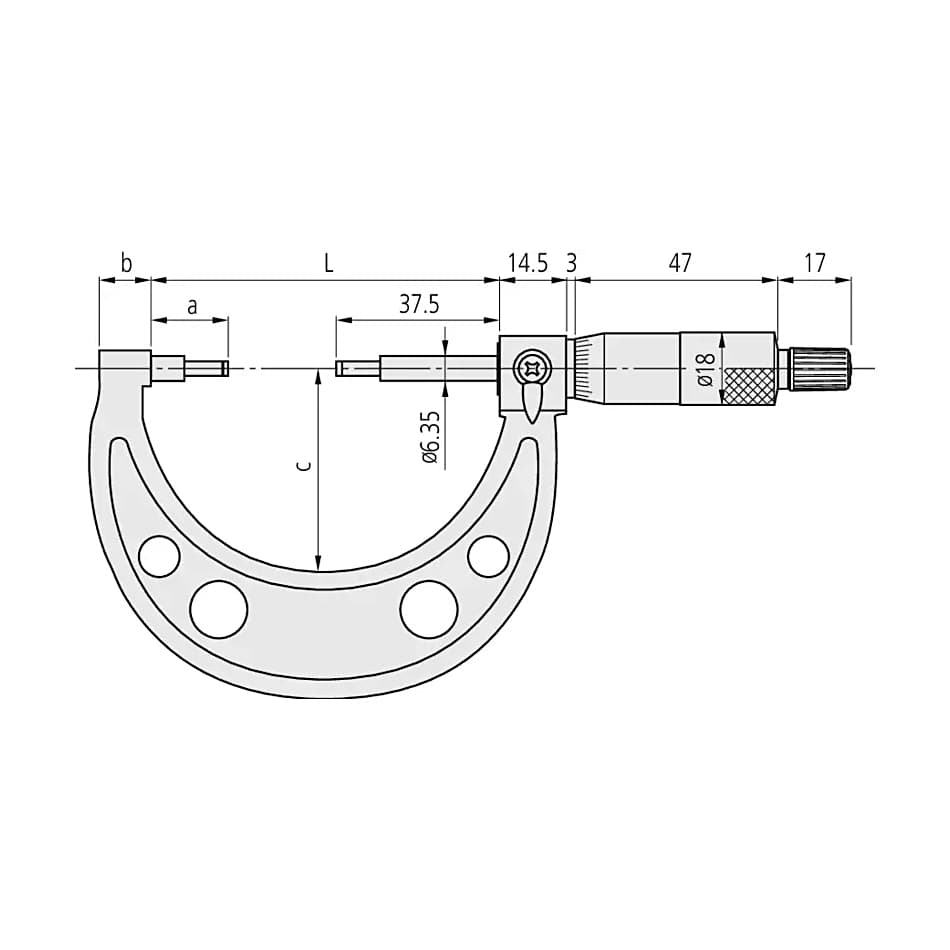

Dimensions Measurement (mm):
