Mitutoyo 600 mm / 24 inch Double Column Digital Height Gauge, 192-632-10

A Mitutoyo digital height gauge, twin column design. Standard-type functionality. Digimatic data output. An extensive range of accessories extends the application range. A bidirectional touch-trigger probe is available as an optional accessory for 192-663-10,192 664-10,192-665-10,192-670-10,192-671-10, 192-672-10 and 192-673-10.

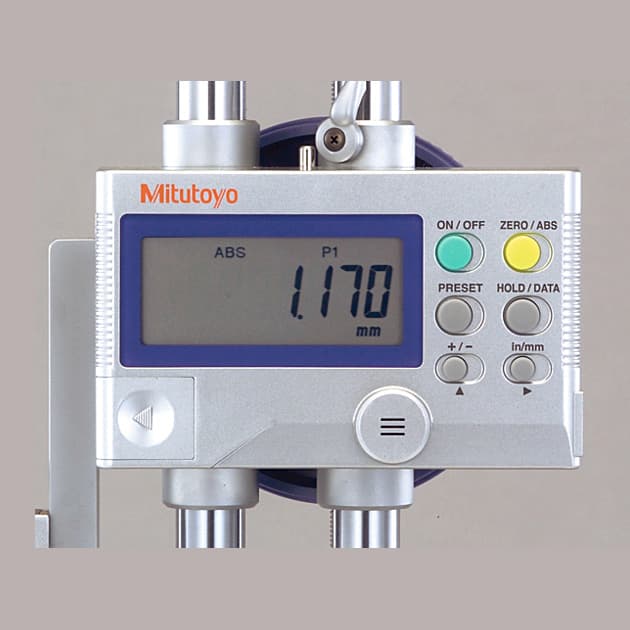

Better readability is provided thanks to the display of measurement results with a large character height (11 mm) and high-contrast LCD. This High Accuracy Height Gauge offers you the following benefits:

• Its double-column structure ensures high measuring accuracy.
• Carbide-tipped scriber provided
• A large character height of 11 mm provides good readability.
• The double-column structure ensures high measuring accuracy.
• The ergonomic base fits comfortably in the hand.
• The drive handle is inclined to improve slider operability.
• Allows integration into statistical process control and measurement systems for models with measurement data output connector.
• Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory)
• Battery life is 3,500 hours in continuous use.
• 192-663-10, 192-664-10, and 192-665-10 are provided with a long scriber (overall length of 150 mm).
• For precision Black Granite Surface Plates.

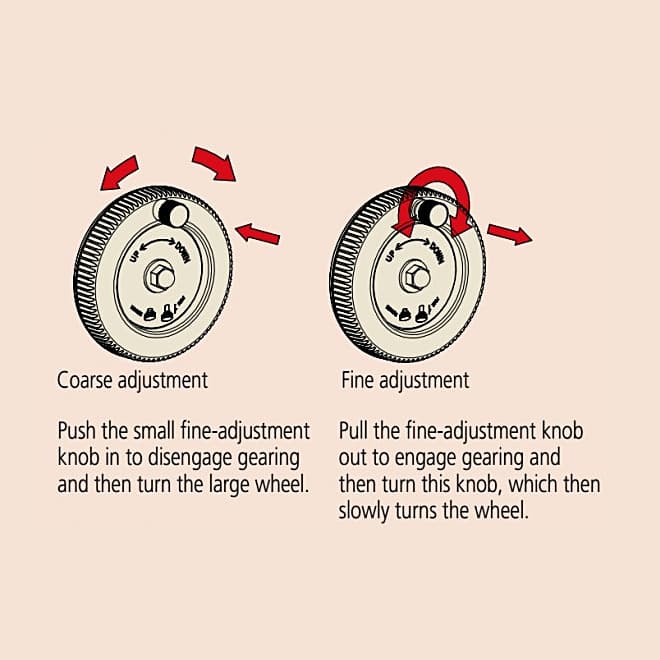

• Fine and coarse height adjustment through knob and wheel combination Slider height adjustment height adjustment.

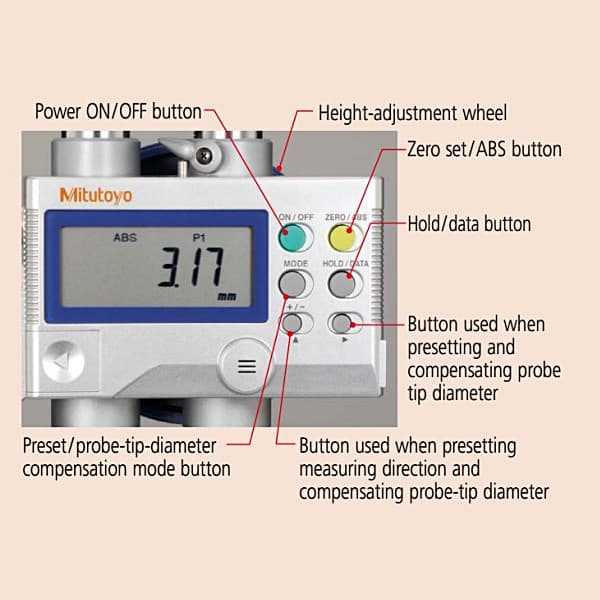

Functions:

• Origin-setting (ABS measurement mode): Any arbitrary value can be stored as the origin point.
• Zero-setting (INC measurement mode): Displayed value can be set to zero at any arbitrary position of the slider.
• Origin restoration: Previously set origin is restored when switching back to ABS mode.
• Presetting (ABS INC measurement mode): Displayed value can be set to any arbitrary value, including negative values.
• Measuring direction: Measuring direction can be switched at the press of a button.
• Data hold: Display value can be held. Revers to ABS or INC mode when canceled.
• Alarm: An error message is displayed when overflow or Overspeed of displayed value arises and measurement is stopped.
• Data output: Allows integration into statistical process control and measurement systems.
• Low-voltage alert: When battery voltage becomes low, a warning appears in the display.
• Probe-tip diameter compensation: An adjustment is applied to the raw measurement data to compensate for the effect of the size of the spherical contact point used by the bidirectional touch-trigger probe.
